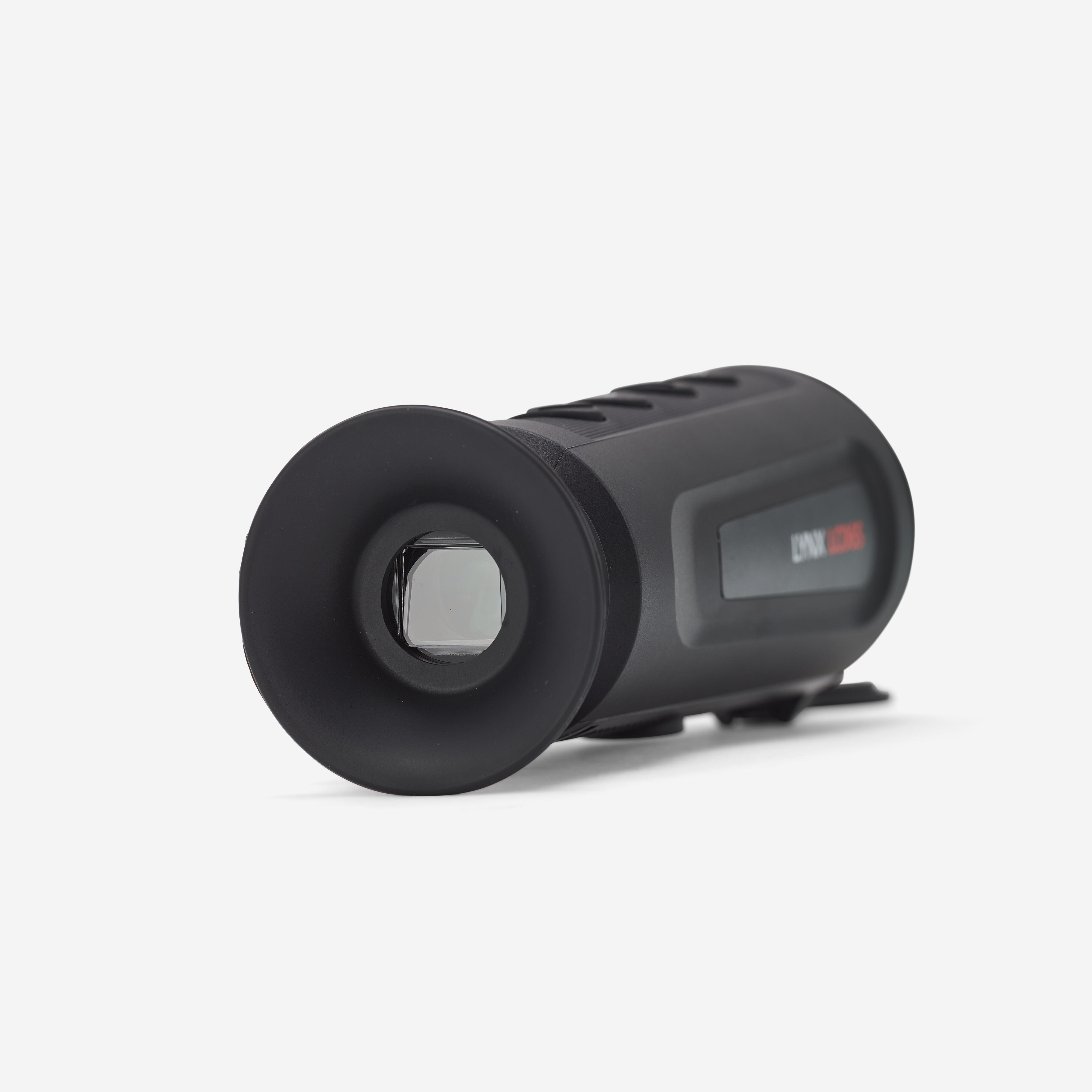

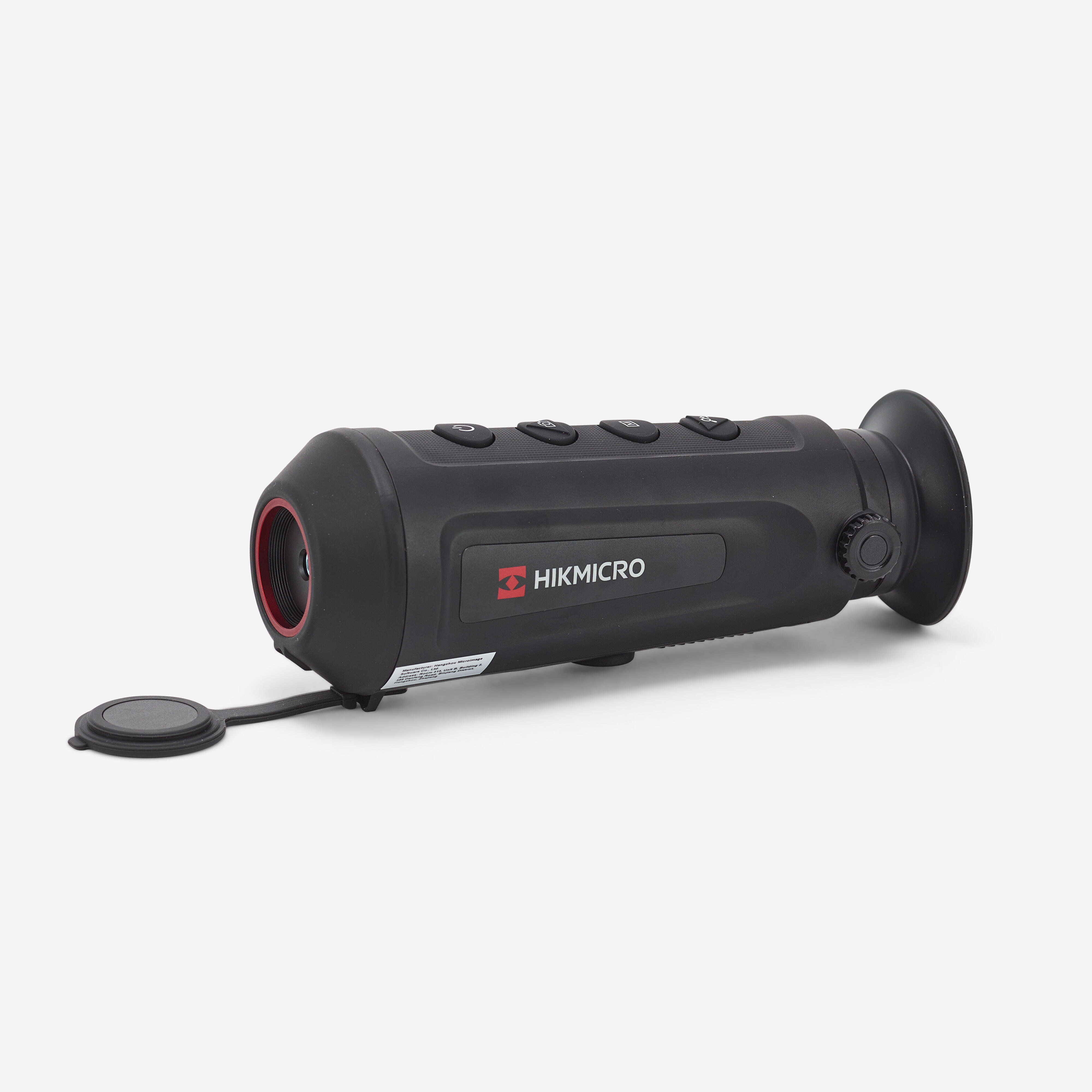

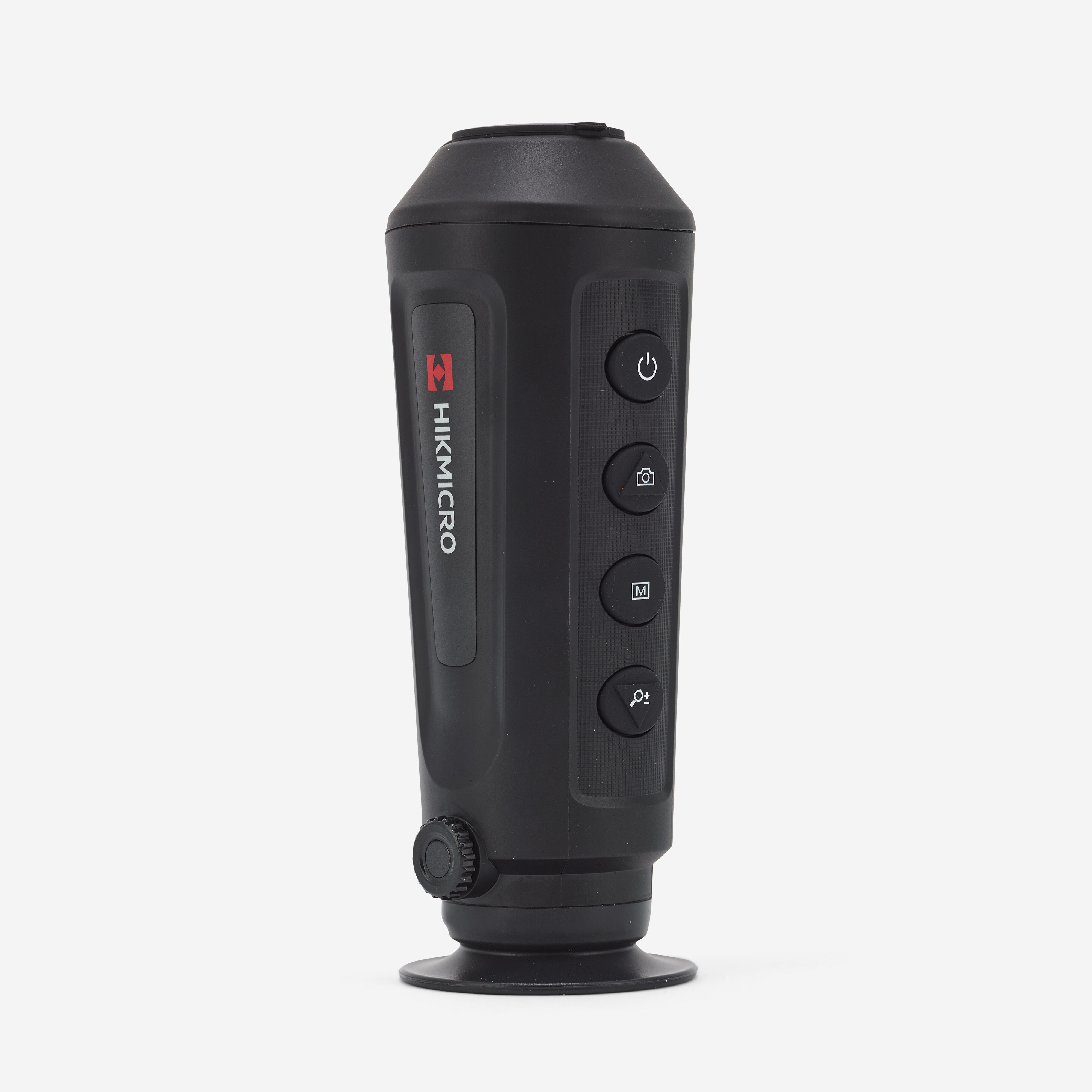

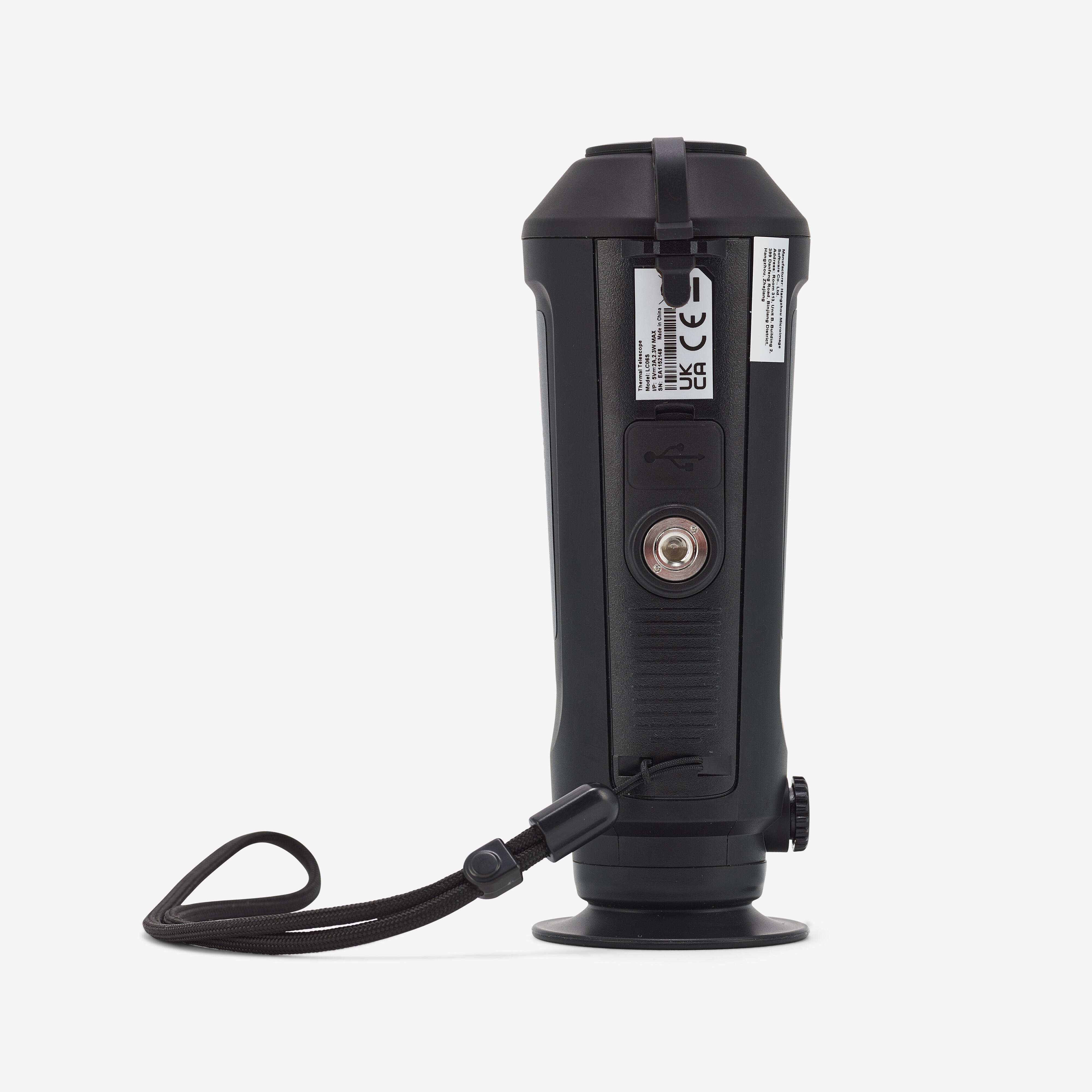

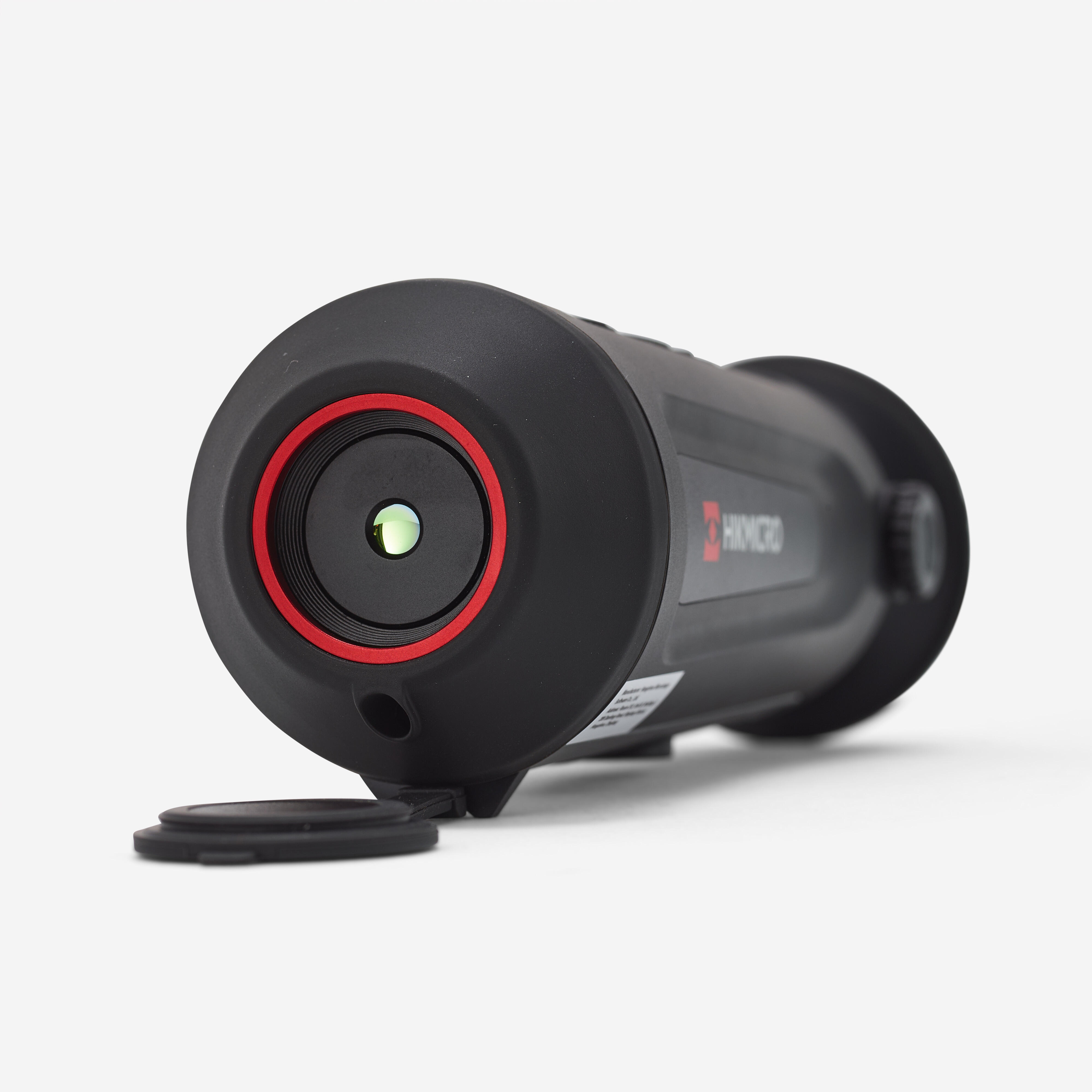

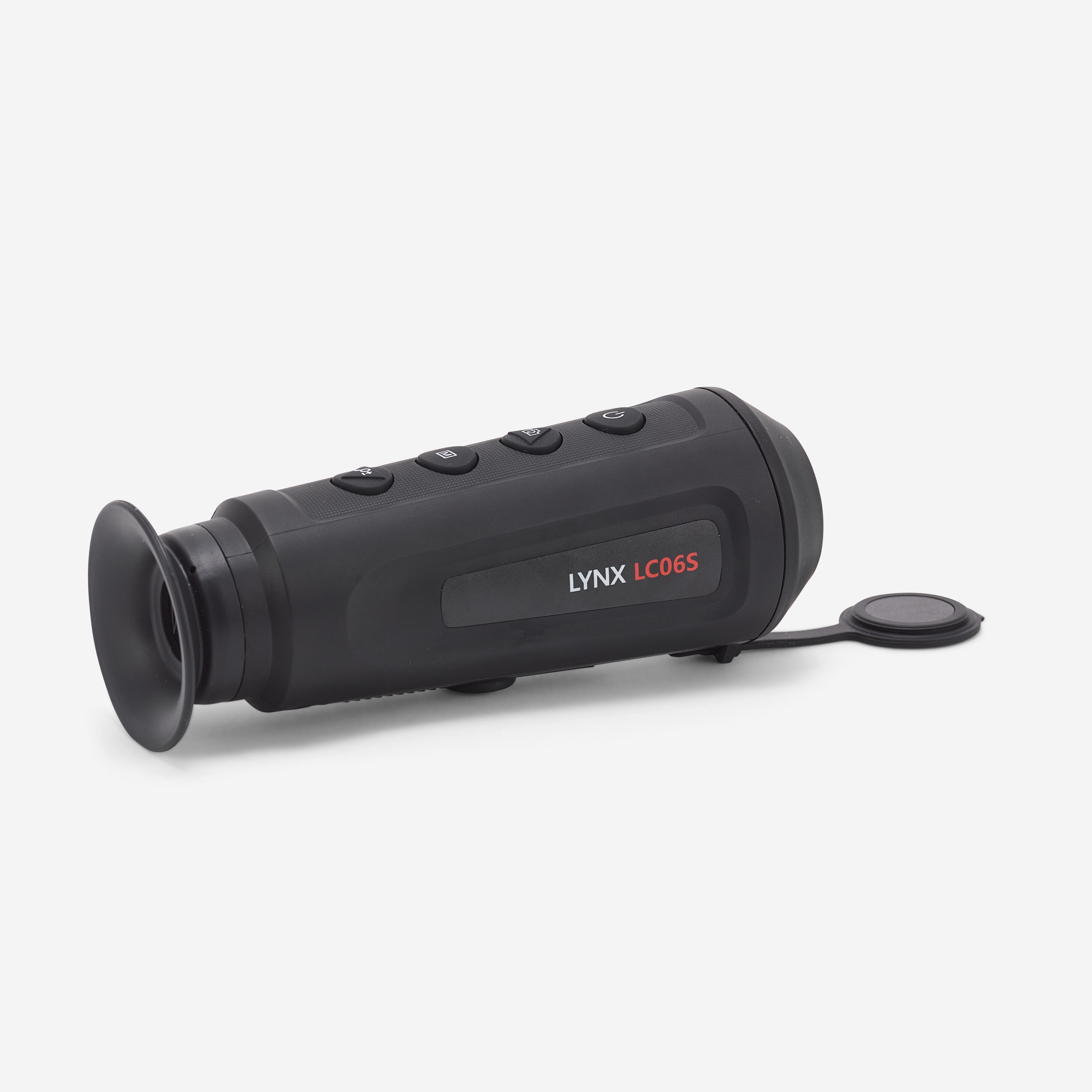

Thermal imaging monocular Lynx LC06s
Store Availability
Store availability
BENEFITS
Autonomy
10 hours of continuous use with deactivated CVBS and Wi-Fi
Magnification
Zoom digitally from x1 to x4 in the image to detect an animal
Range
maximum detection range of 250 metres.
Image quality
Highly sensitive thermal module with a resolution of 160 × 120
Waterproof
Can withstand immersion in water for 30 minutes and is dust-proof, IP67
TECHNICAL INFORMATIONS
Main features
High-sensitivity thermal module with a resolution of 160 x 120 pixels
NETD < 35 mK (at 25°C F#=1.0)
Advanced thermal image processing technology: Adaptive CAG, DDE, 3D DNR
0.32 inch monitor with a resolution of 800 x 600 pixels
Built-in rechargeable lithium battery
Battery life of up to 10 hours after just one charge
Wi-Fi hotspot
Type-C interface
Dimensions: 158.3 mm × 61 mm × 57 mm
Heat tracking: Yes
Detection range: 250 m

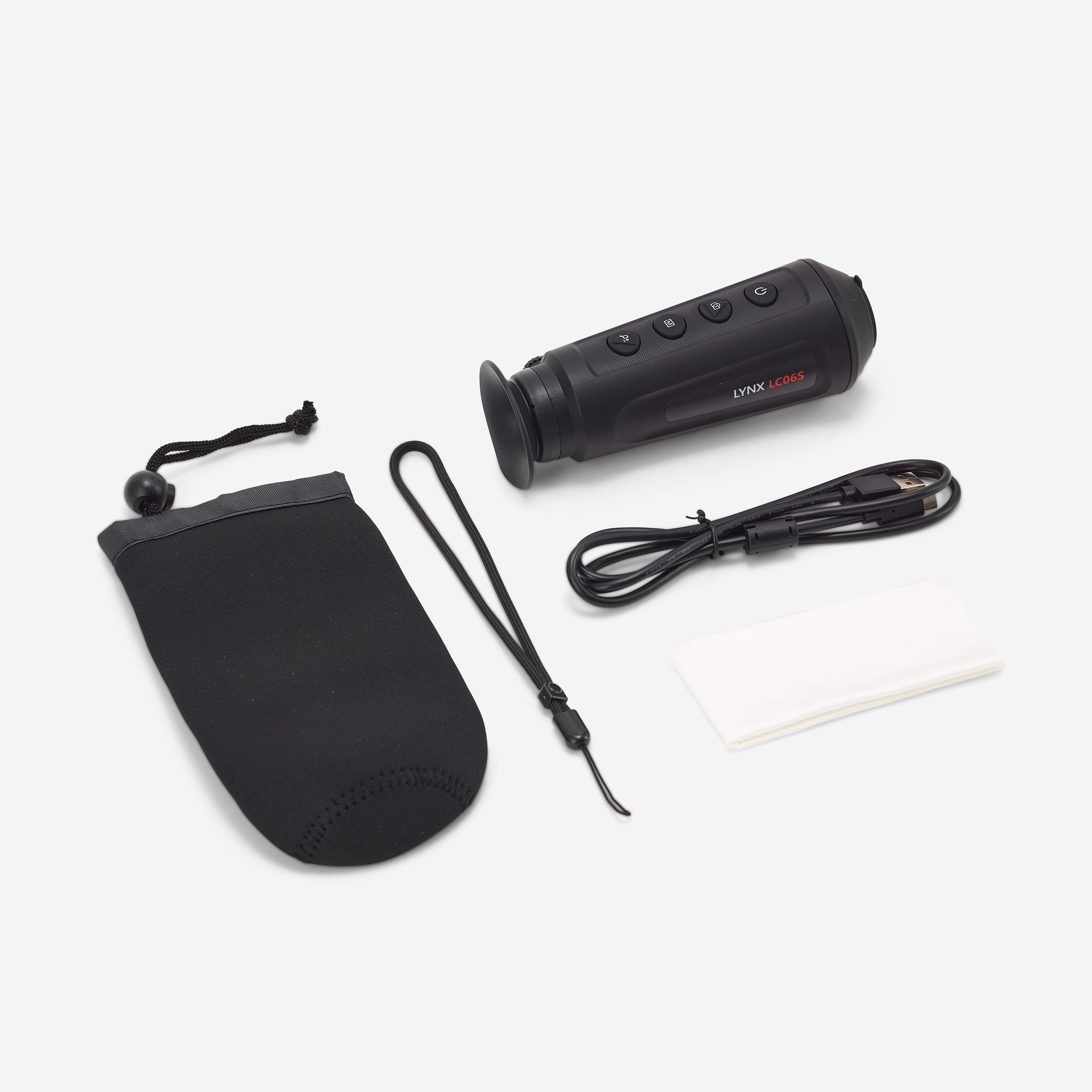

Comes with
1 quick start guide
1 anti-dust cloth
1 USB cord
1 protective pouch
1 wrist band
Sensor:
Sensor: VOx uncooled focal plane arrays
Resolution: 160 × 120 pixels
Frequency: 50 Hz
Pixel pitch: 17 μm
Frequency band: 8 μm to 14 μm
NETD: ≤ 35 mk (@25°C), F#=1.1
Detection distance: 250 m
Focal: 6.2 mm
Field of view: 24.7° × 18.7° (H × V)
Aperture: F1.1
Display screen
Monitor: 0.32 inch, LCOS, 800 × 600
Uniformity correction: Auto, manual, external correction
Palettes: Hot black, hot white, hot red, fusion
Digital zoom: x1, x2, x4
System
Storage: Built-in memory module (8 GB)
Video recording: Yes
Photo capture: Yes
Wi-Fi: Yes
Standby mode: Yes
Type of battery: Rechargeable lithium battery
Battery life: 10 h of continuous use with the CVBS and Wi-Fi access point deactivated (at 25°C) / 7 h 30 of continuous use with the CVBS and Wi-Fi point of access activated (at 25°C)
Battery capacity: Displayed
General
Power: 5 VDC/2 A, 1.5 W, Type-C interface
Operating temperature / Humidity: -20°C to 55°C; Humidity: 90% or below
Protection factor: IP67
Dimensions: 158.3 mm × 61 mm × 57 mm
Weight: 250 g
TESTS AND WARRANTY
Warranty
2 Years
