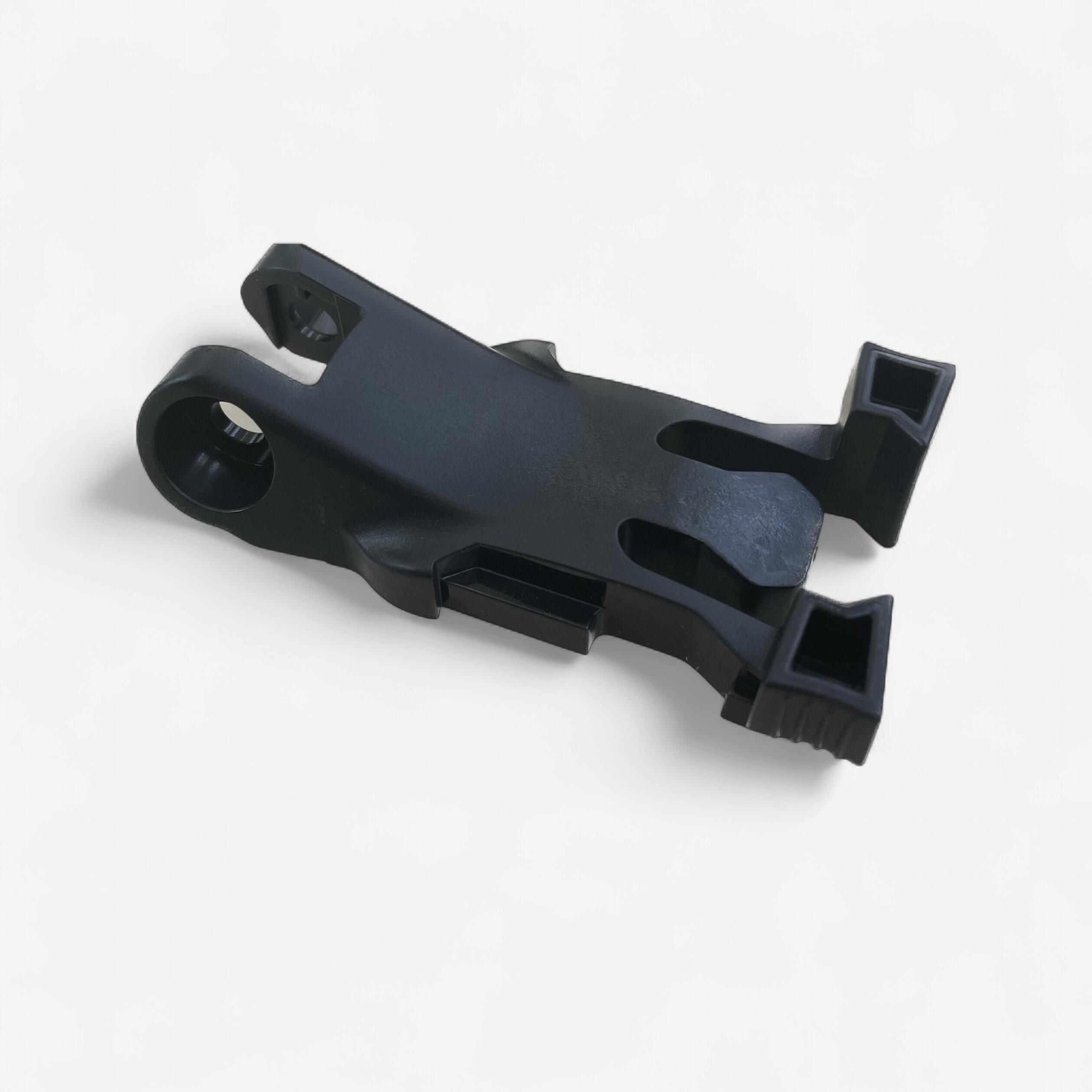

Stiff Rear MTB Fixing and Incline Mudguard Interface Clip

Compatibility

Compatible with rear stiff MTB Rockrider mudguard, sold separately, ref.8579402 (V1) and 8827452 (V2)

or sold as a kit ref. 8579403 (V1) and 8826609 (V2)

Tools and assembly instructions

Keep the screw and nut from the original part and use them with the new part.

You'll need a 4 mm Allen key.

Screw the replacement part sufficiently on the arm of the mudguard, until it stops moving.

Then clip the whole thing onto the clamp still in place on the seatpost.

After installation on the bike, the mudguard blade can still be raised by about 4 cm at its end: don't insist when you screw it on, it's normal.
