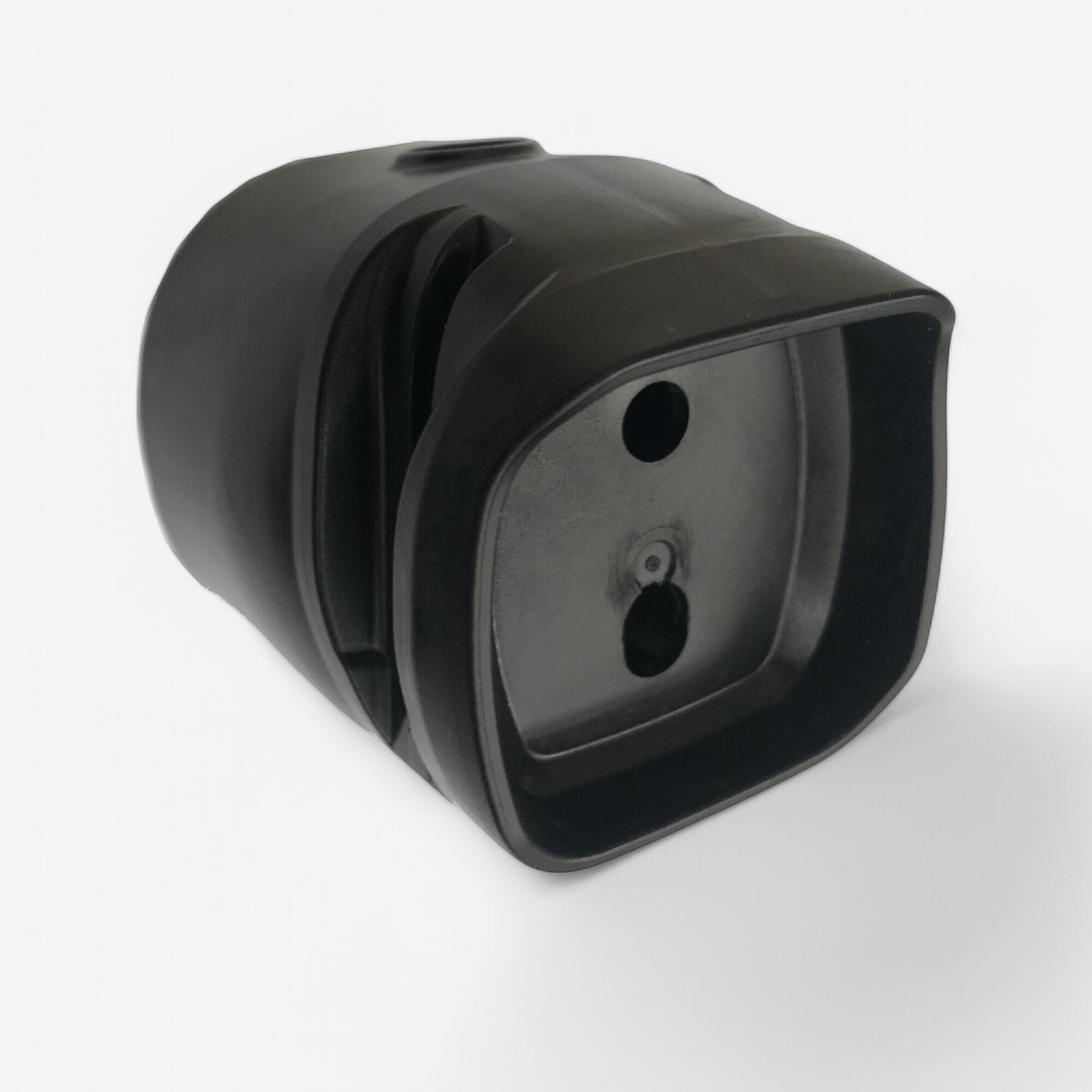

Folding Bike Front Bag Mount

Assembly

Torque: 5 NM (± 1 Nm)

2 M5 x 8 A4 convex socket head cap screws with thread-locking fluid

2 M5 A4 Schnorr washers



Green thread-locking fluid to be added on the screw thread and in the threaded hole

Need help?

The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!

To install the new front mount, you'll need:

Front mount: 8750333

Compatible reflector: 8757202

Two iso 7380 Torx M5X10 screws with thread-locking fluid and two DIN25201 stainless steel A2 lock washers (sold separately)

How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (1/4)

The original set of lights on our older folding bikes is being replaced by a front light and mount, a rear light, and a front mount for your bags.

How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (2/4)

If you want to install the new USB rechargeable front light, you'll need:

The stem top cap: 8819793

The front light + mount: 8757414

The V2 computer stem + cover: 8757187

One CHC M6 x 16 mm class 8.8 A4 screw with thread-locking fluid and one DIN 912 M6 A4 washer (sold separately).

How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (3/4)

In addition, you can replace the original front mount with a new one that can take a bike bag. To do this, you'll need:

Front mount: 8750333

Compatible reflector: 8757202

Two iso 7380 torx M5X10 screws with thread-locking fluid and two DIN25201 stainless steel A2 lock washers (sold separately)

How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (4/4)

If you want to replace the rear light with the new USB rechargeable one, you'll need the following product references:

Rear light: 8757417

Frame plug: 8819778
