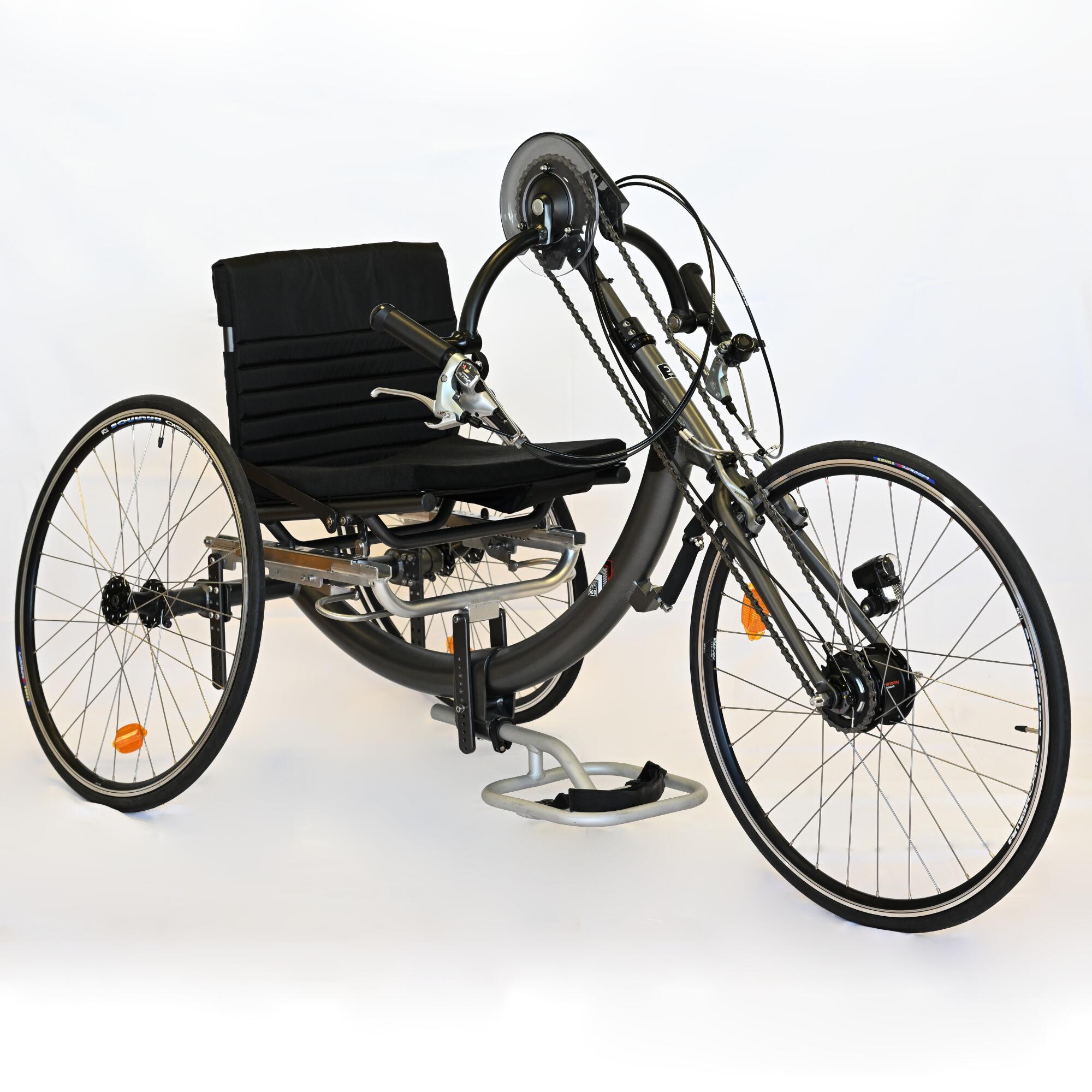

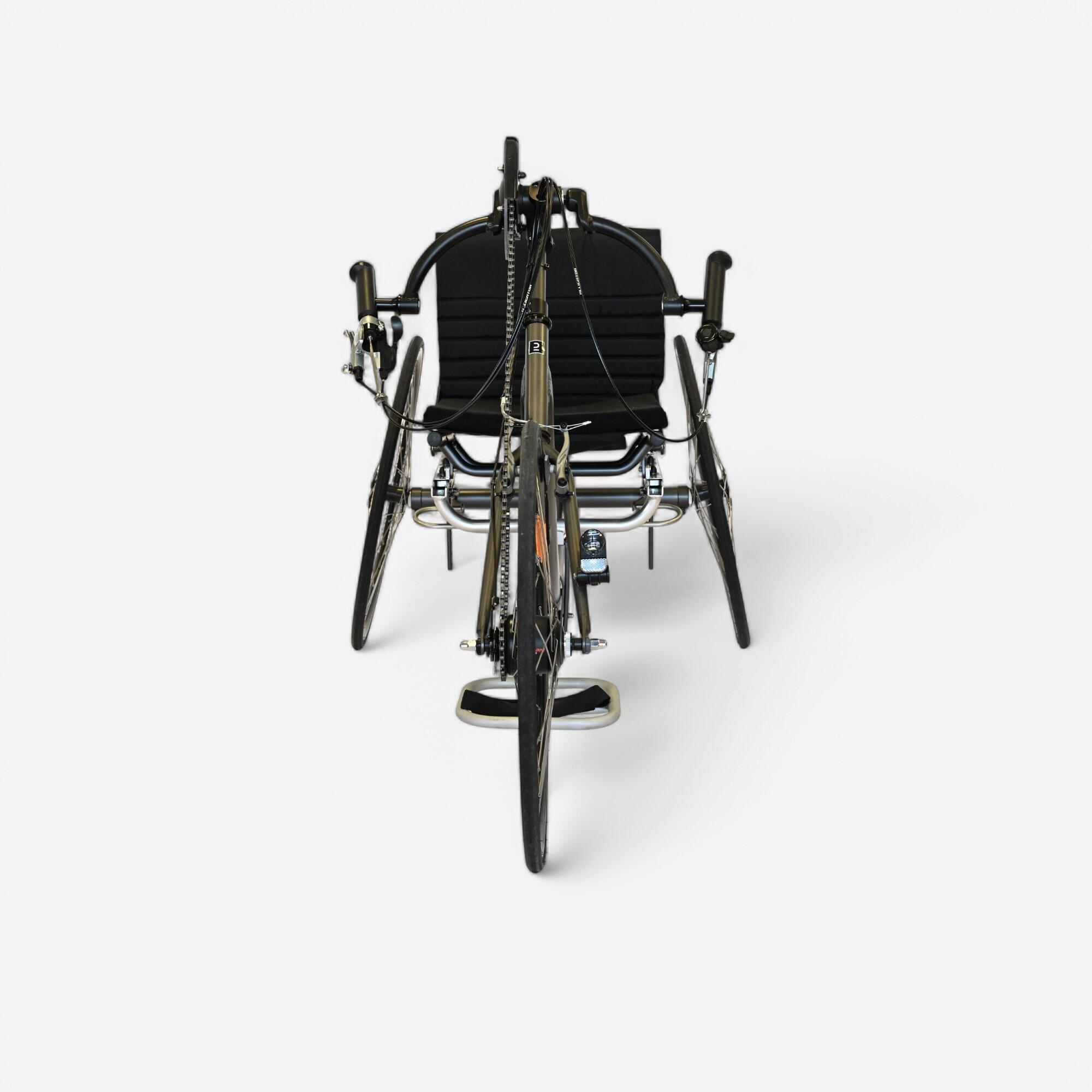

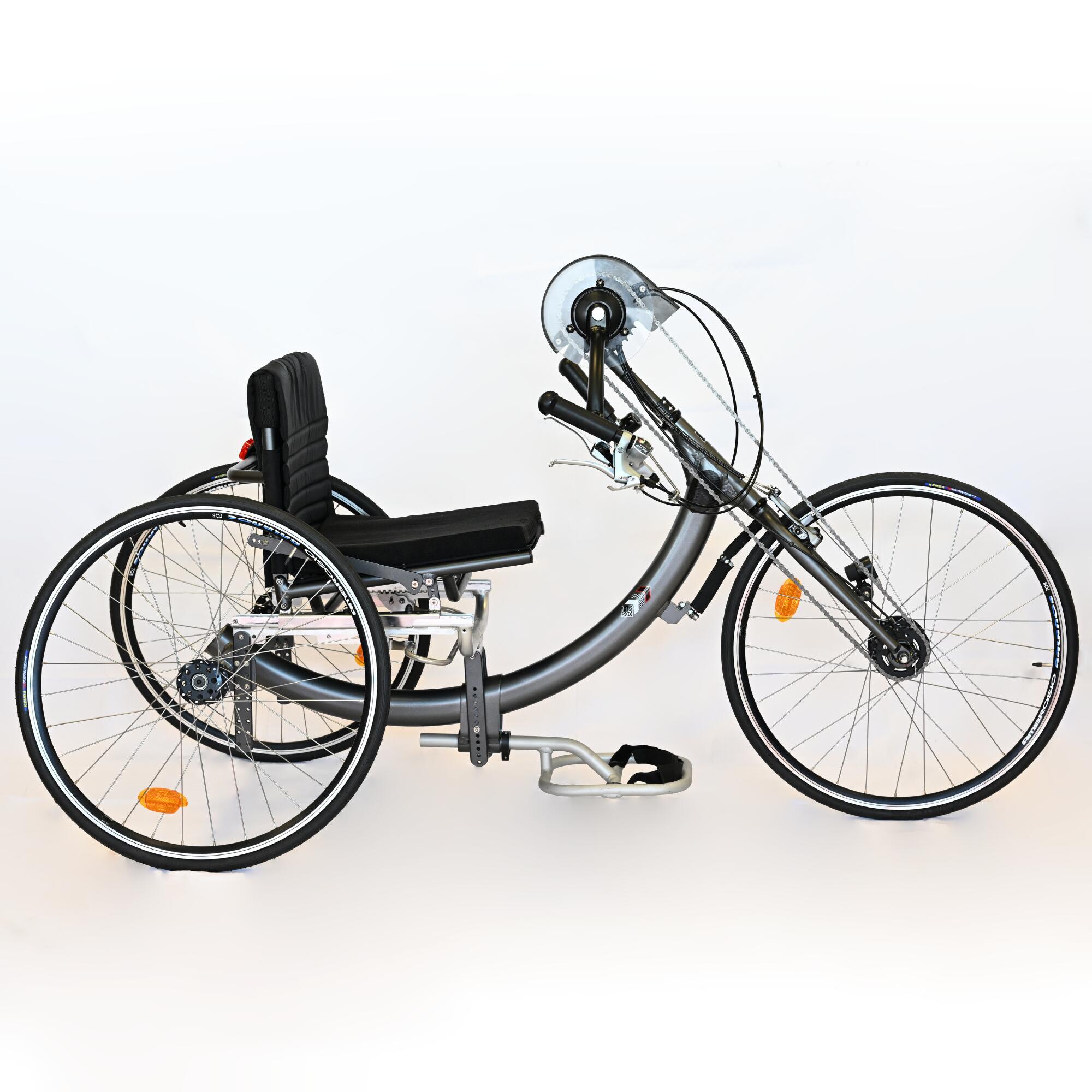

Adjustable Handbike HB500
Store Availability
Store availability
BENEFITS
Ease of use
Parasport bike that comes ready to use with a standard configuration
Adjustable
The HB500 adjustable handbike can be used by people with different disabilities
Instructions
DownloadTECHNICAL INFORMATIONS
The story behind Decathlon's Adapted Sports brand
The aim of the Decathlon Adapted Sports brand is to make para cycling accessible. That's why we've created this handbike for disabled people who want to ride for leisure or to get around town on the roads. The team's main focus was to keep users independent and comfortable. To do this, they designed and tested the products with people with a range of different disabilities to make sure they'd met everyone's needs.
Certification and medical device
The handbike is recognised as being a medical device. It has been certified according to standard EN 12183 by CERAH, who tested our products to make sure they met all the requirements.
How should you choose your handbike?
Choosing your para cycling bike:
- how good you are at cycling and how often you ride.
- how comfortable the bike is.
- the equipment and safety features it comes with, e.g. bell, light, etc.
- the bike's certification.
The HB500 adjustable handbike has been designed with input from disabled people so that we can be sure we're keeping users safe and comfortable.
It's suitable for use on roads, particularly in the city.
The chair is certified.
Handbike maintenance advice
In the interest of safety, it's important to regularly check that:
- the tyres are at the right pressure, for safety and a smooth ride (the max pressure is shown on the tyre).- the brakes are working properly.- the gear and brake cables aren't tangled.
Every three months:
- the thru axle screws on the rear wheels are secure.
- the front and rear wheel bearings are working effectively.
- the derailleur and gears are positioned correctly
- if needed, lubricate with silicone oil (it is non-messy)
Directions for use
Check before use: the wheels are locked on tightly; the lights and bell are working.
The handbike is designed to reduce the risk of accidents when used normally, i.e. under the conditions described in the instructions. Inappropriate use could compromise user safety.
In the interest of safety, if you need to change a part, we recommend only using original parts or parts approved by the manufacturer.
Frame
The frame of the HB500 adjustable handbike is made of 7020 aluminium alloy.
Our parasports bike can take loads of up to 120 kg.

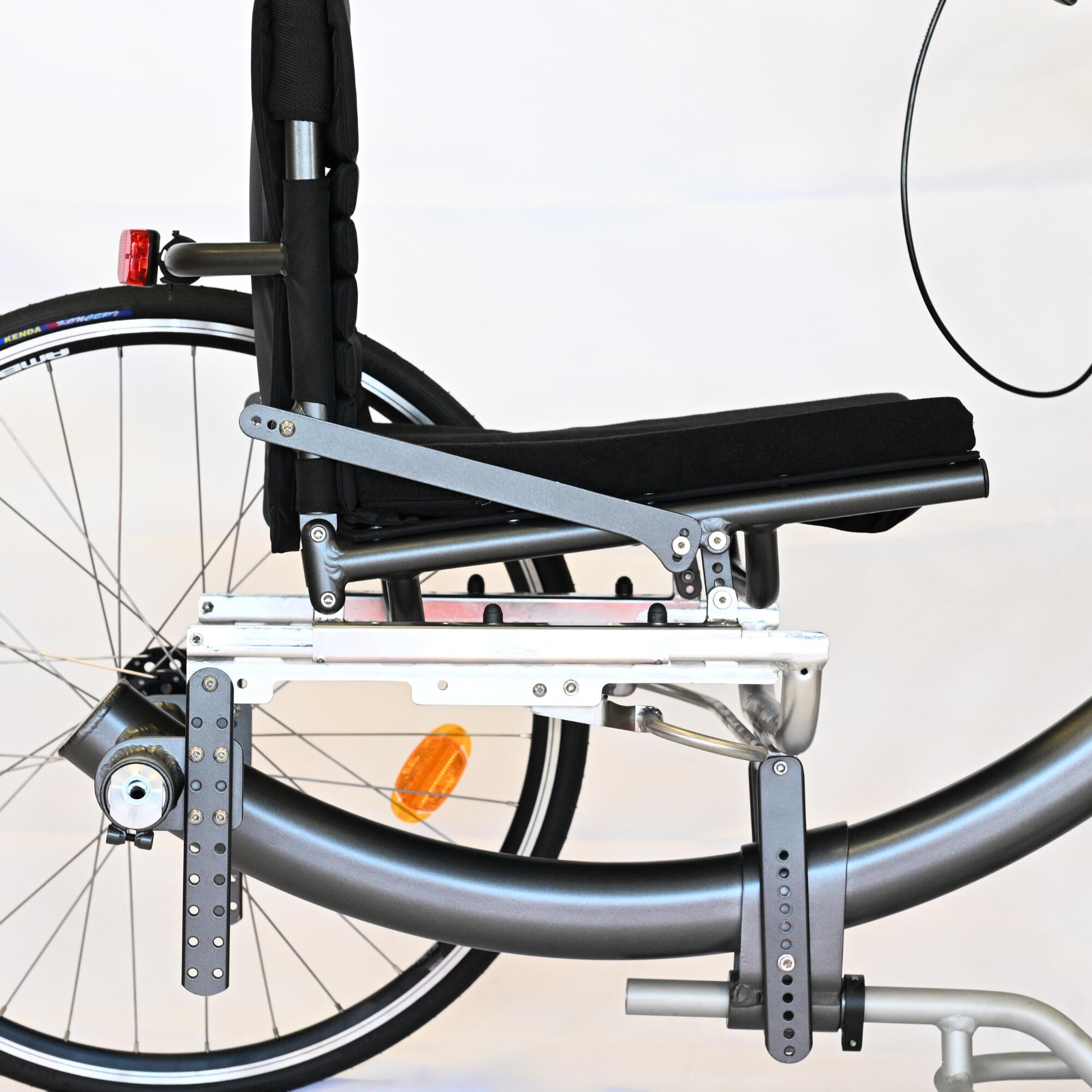

Seat and position
Seat width: 40cm.
Seat depth: 42cm.

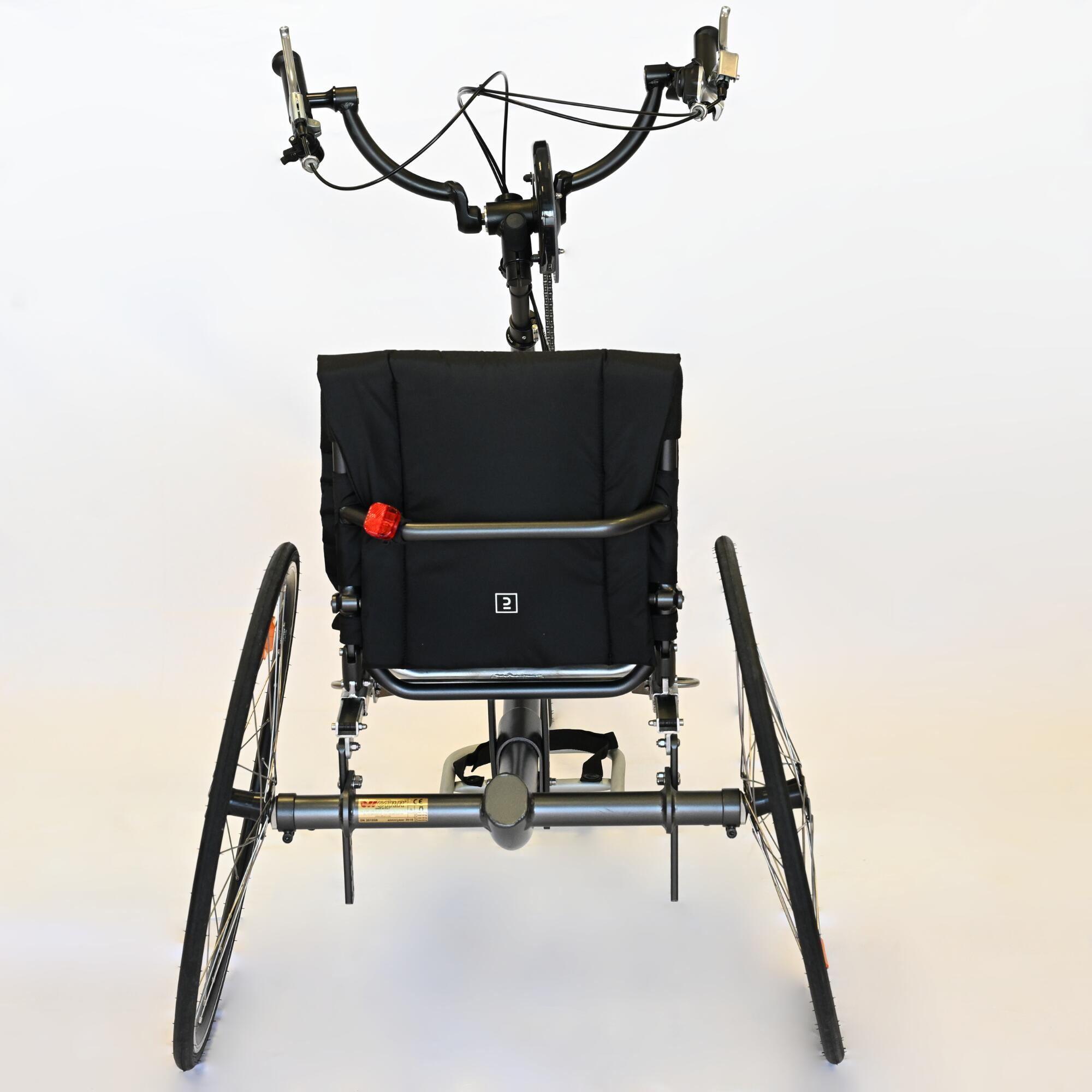

Backrest
The tension of the backrest is adjustable.
- the backrest can tilt to 91° so that it can be adjusted to suit the user's needs.
Drive wheels
Wheels: 26". They are equipped with road tyres to keep you comfortable and give you a smoother ride on roads.
Pre-set camber: 12°.

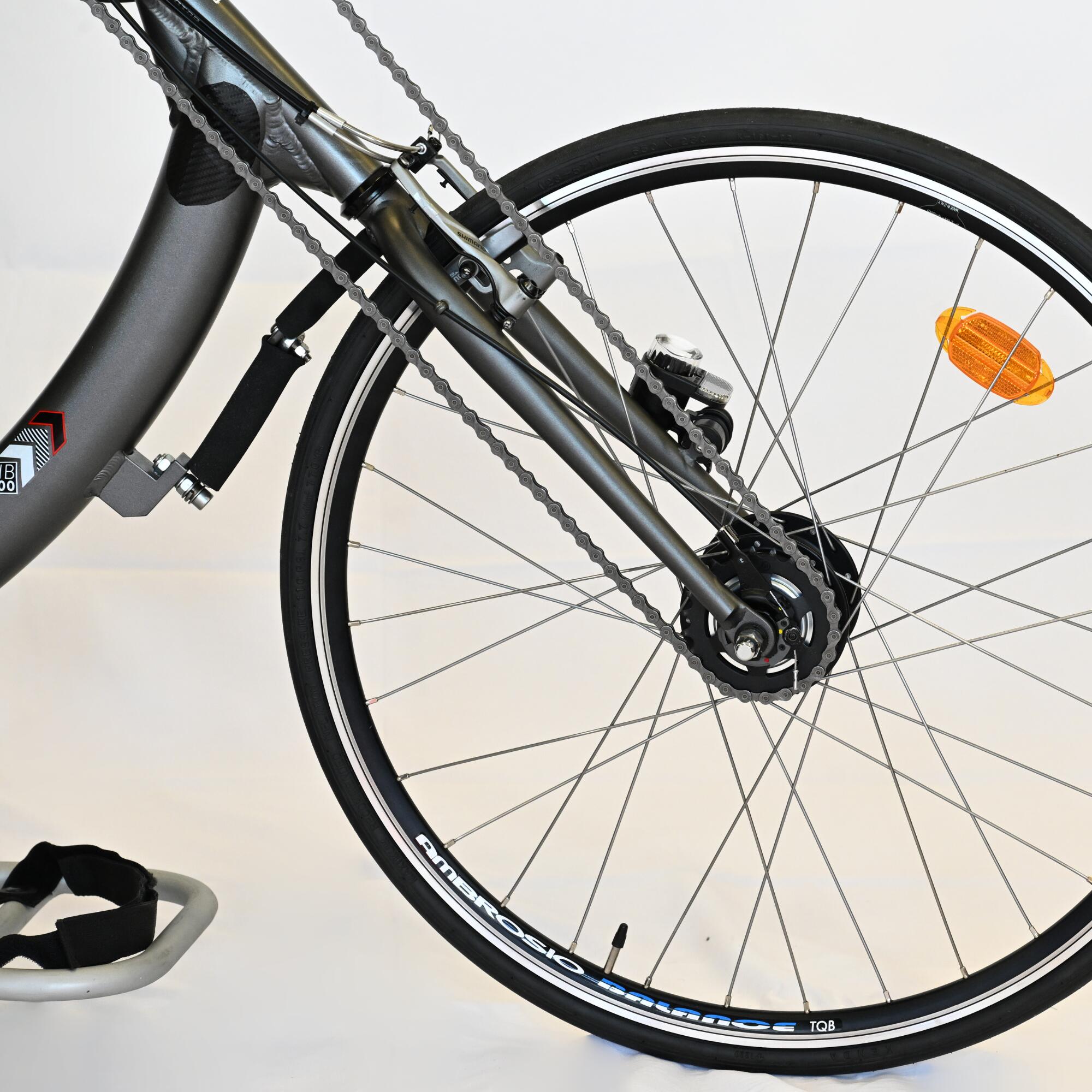

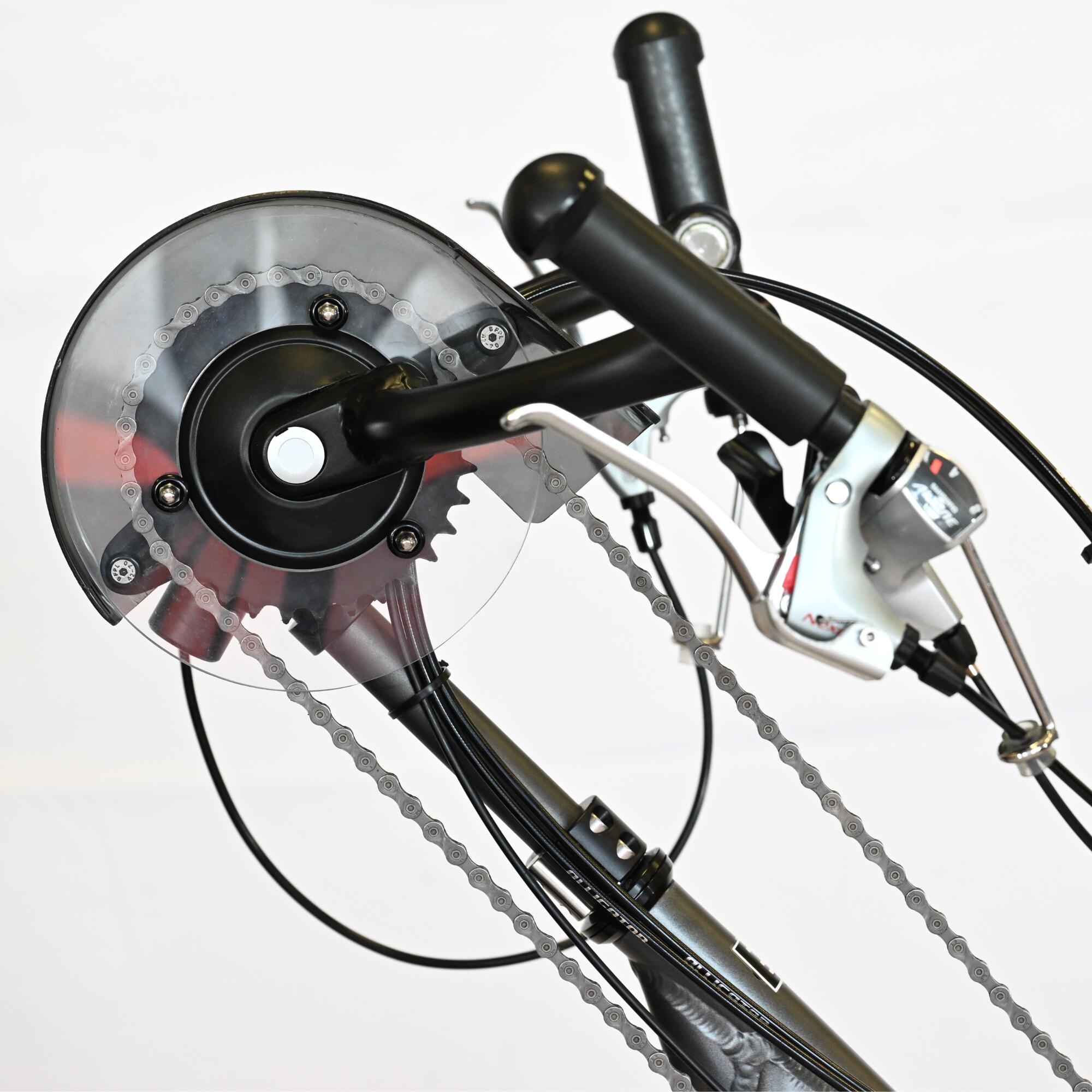

Internally geared hub
The handbike has a Shimano Nexus 8-speed hub built into the front wheel.
You can switch between these 8 gears to make riding easier and reduce fatigue on your journey, including when there's a hill.
Cushion
The handbike has a 3-cm-high cushion made from 75 Sh polyurethane. The depth of the cushion is 40 cm.
It has been designed for different types of disabilities and to meet the needs of paracyclists.
The cushion does not prevent sores.
Safety straps
The straps are positioned at thigh, calf and foot height.
Seat belt: 8 cm deep.
Calf and foot strap: 5 cm deep.
Keeping users safe is a priority for the Decathlon Adapted Sports team.

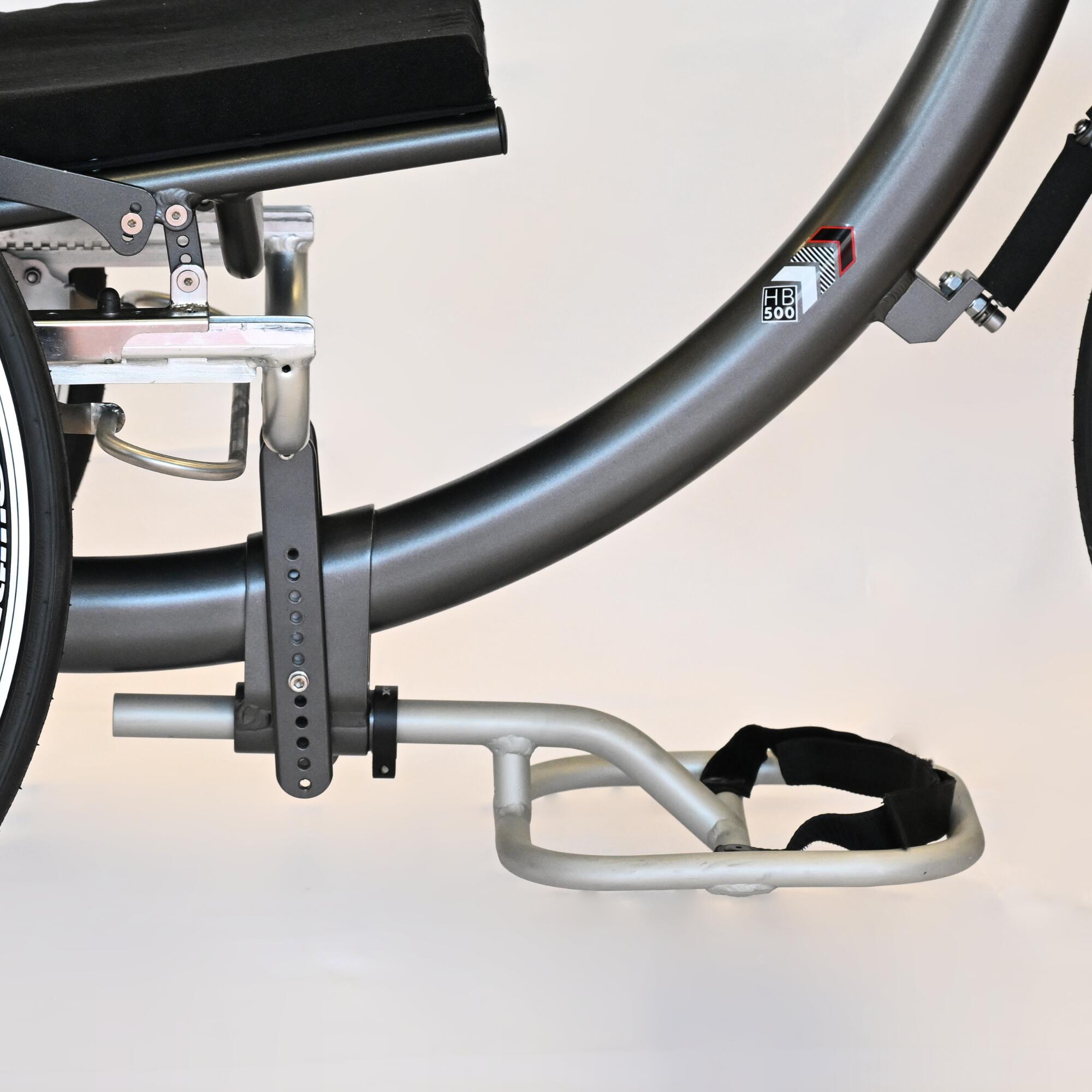

Footrest
The handbike has a 26-cm-long footrest. You can adjust the height and depth.
Safety features
This bike has all the safety accessories needed to travel around town safely: reflectors, lights and a bell.
Standard configuration
Seat width (depending on size): 40cm.
Seat depth: 42cm.
Distance between the hub and backrest: 9cm.
Drive wheels: 26”.
Backrest height: 35cm.
Backrest tilt: 91°. Height of the front of the seat above the ground: 50cm.
Height of the back of the seat above the ground: 42cm.
Camber: 12°. 8-speed internally geared hub.
Cushion: height: 3 cm;
dimensions: 40 cm x 42 cm.
Adjustments
Height of front of seat.
Height of front of seat.
Seat angle.
Backrest angle.
Backrest fabric tension.
Footrest depth.
Instructions & support
If there's anything you want to know, please take a look at the manual on the Decathlon support website.
Dimensions
Handbike dimensions in use:
- total width: 77.5 cm.
- total length: 180 cm.
- total height: min 100 cm, max 105 cm.
- turning circle: 485cm.
Box dimensions:
Length: 80 cm;
Width: 90 cm; Height: 170cm.
Weight
Total weight: 21.1 kg.
Use restriction
User weight maximum : 120 kg.
Non-marking wheels
Does not leave marks on the floor, suitable for indoor sports.
COMPOSITION
composition
Frame: 95.0% Aluminium, 5.0% Stainless Steel; Seat: 90.0% Polyurethane, 5.0% Aluminium, 5.0% Stainless Steel
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Storage tips
If your handbike gets wet, dry it straight after your ride to stop it rusting. Clean it regularly with a damp cloth.
Restrictions on use
User weight maximum : 120 kg.
TESTS AND WARRANTY
Test product
The Decathlon Adapted Sports design team arranged user tests with disabled people to ensure that the handbike met all of their needs. The handbike has been certified according to standard EN12183. It is recognised as a medical device.
Agree by
The handbike has been certified by CERAH according to standard EN12183.
Parts guarantee
2 years excluding wearing parts: tyres, inner tubes, bearings, spokes, steerer tube, bar tape.
