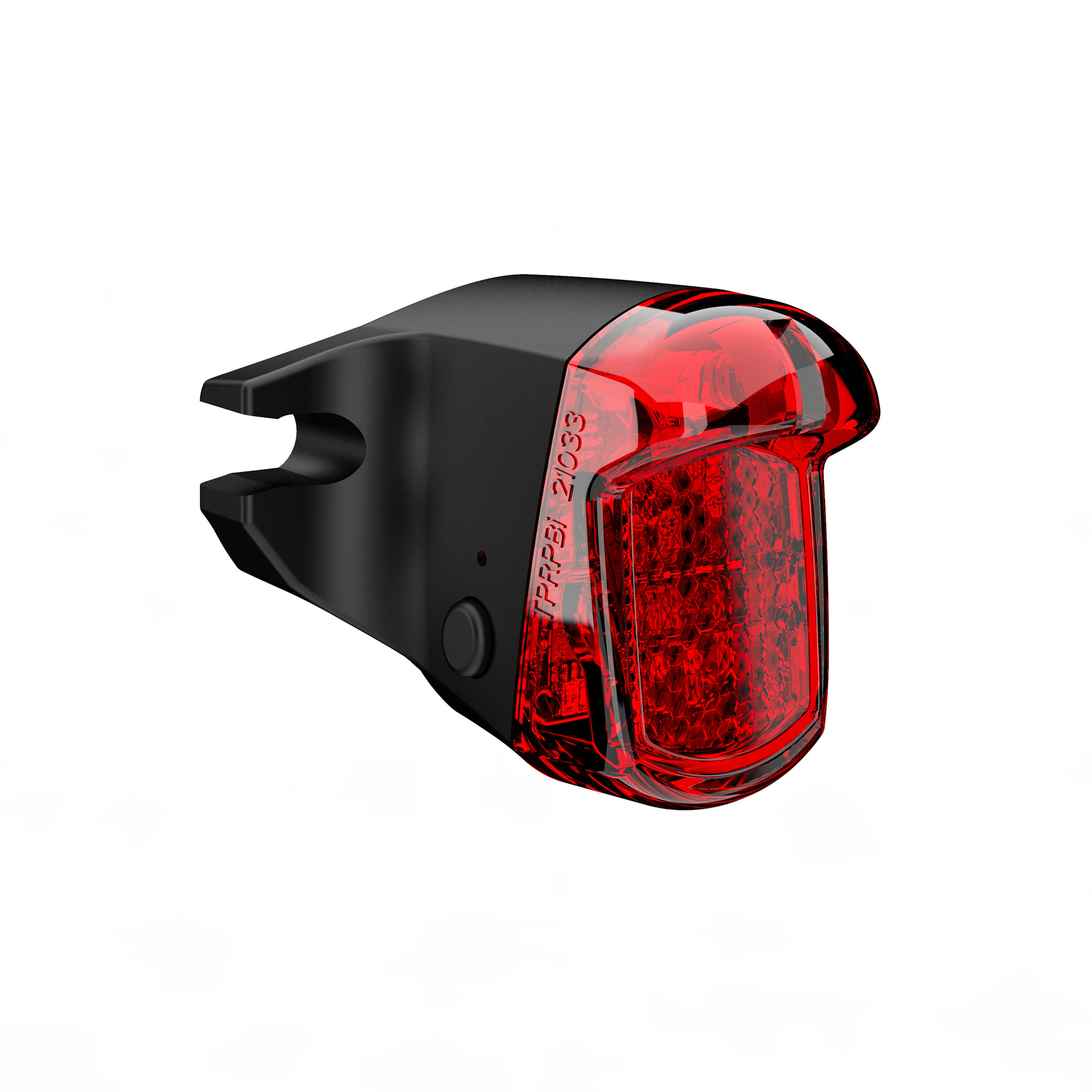

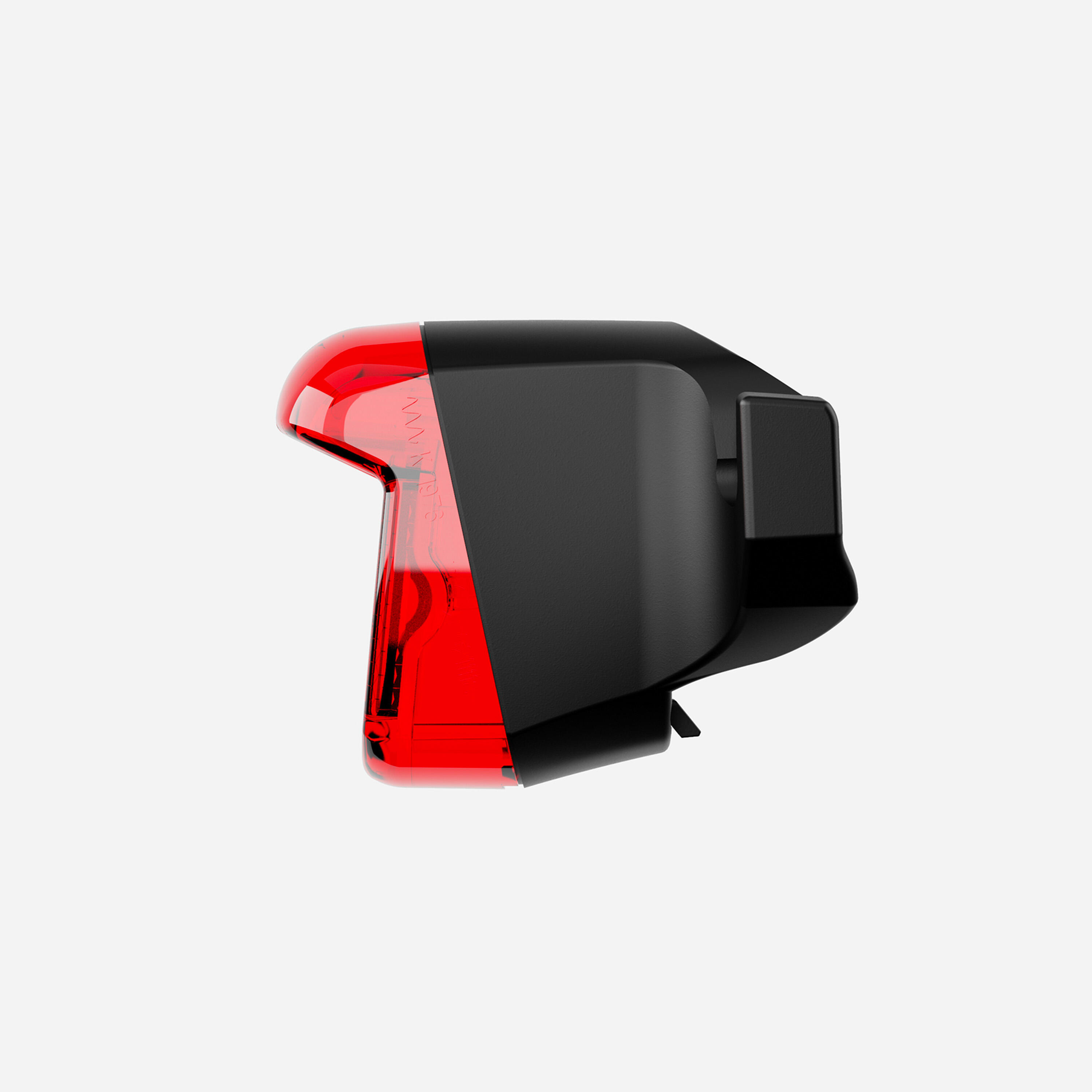

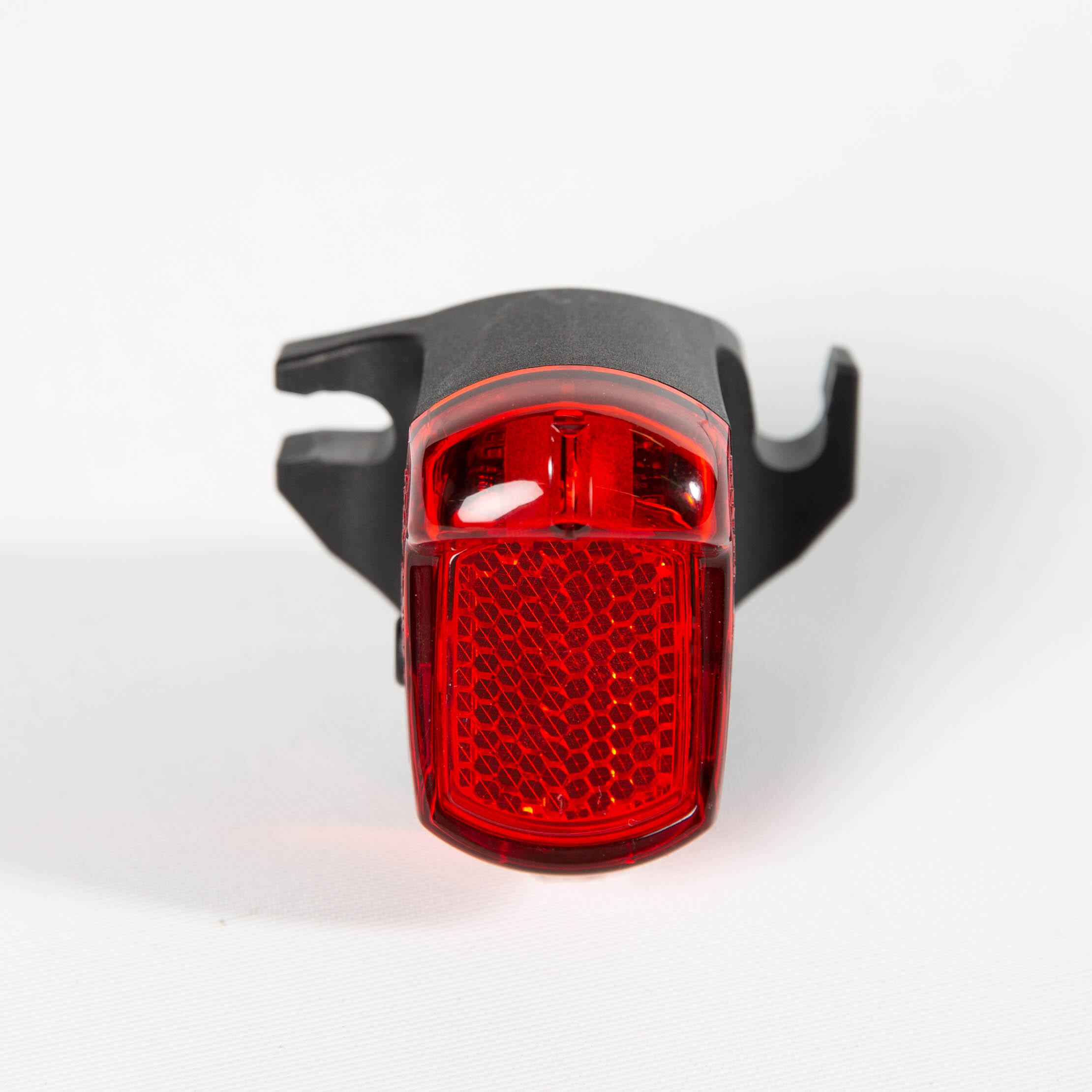

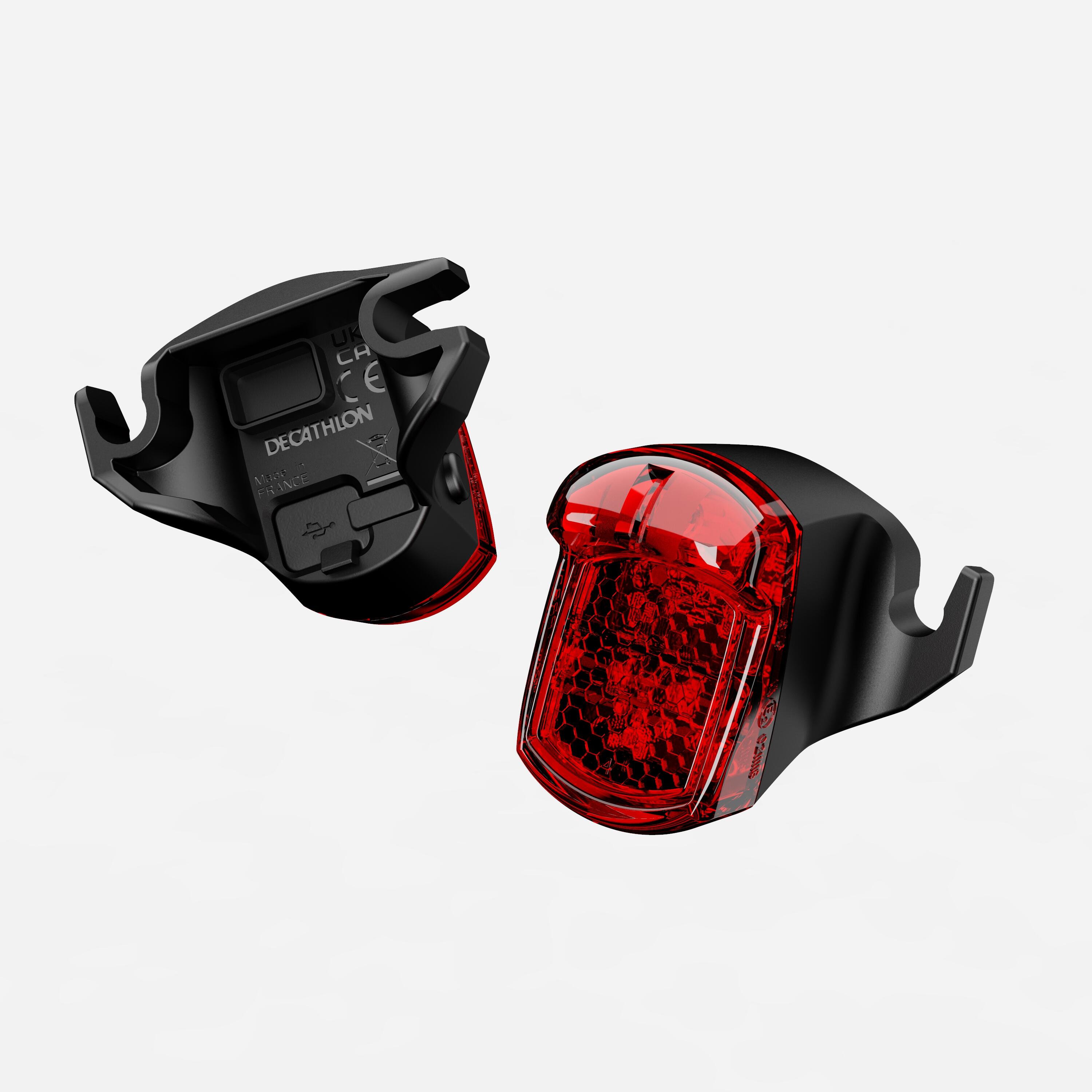

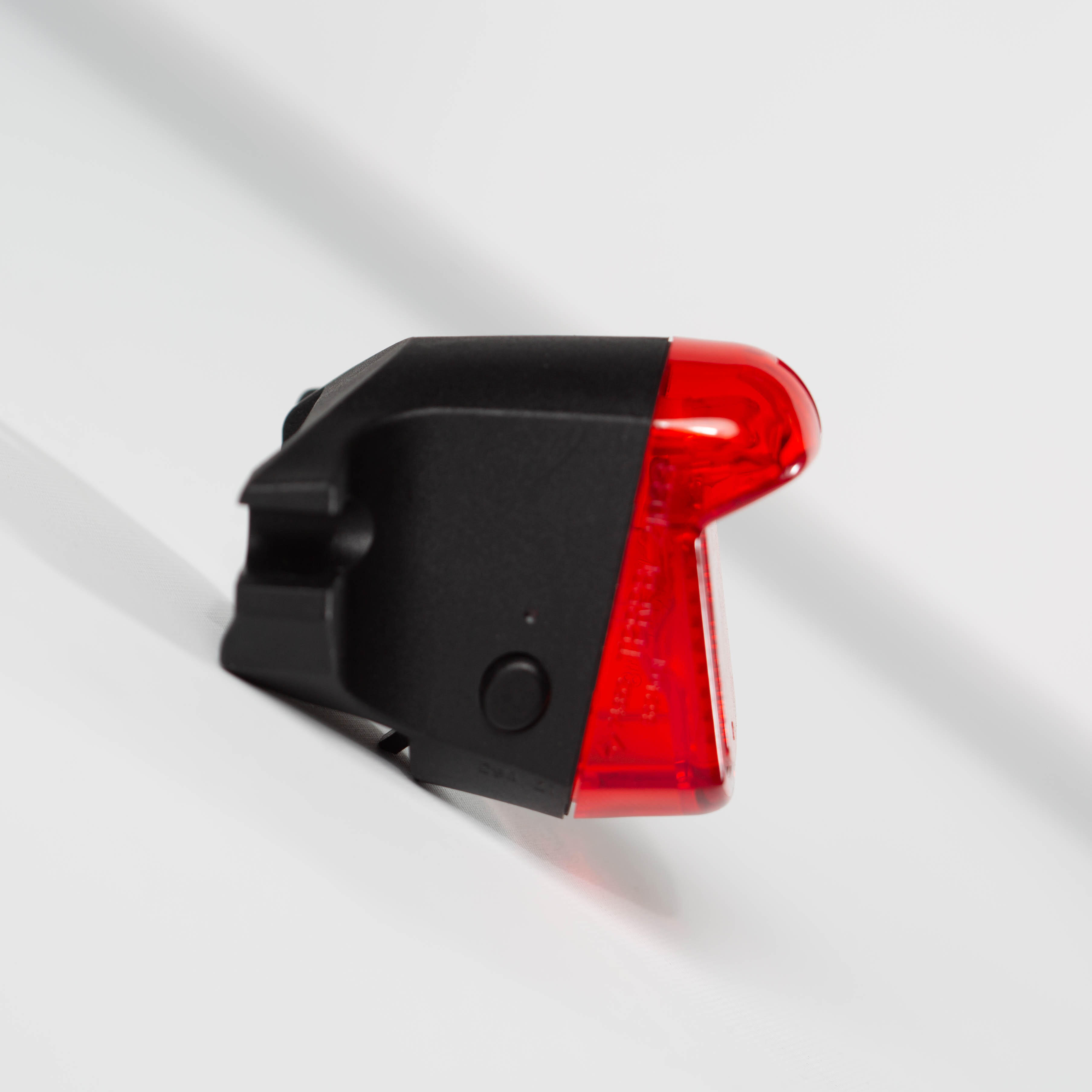

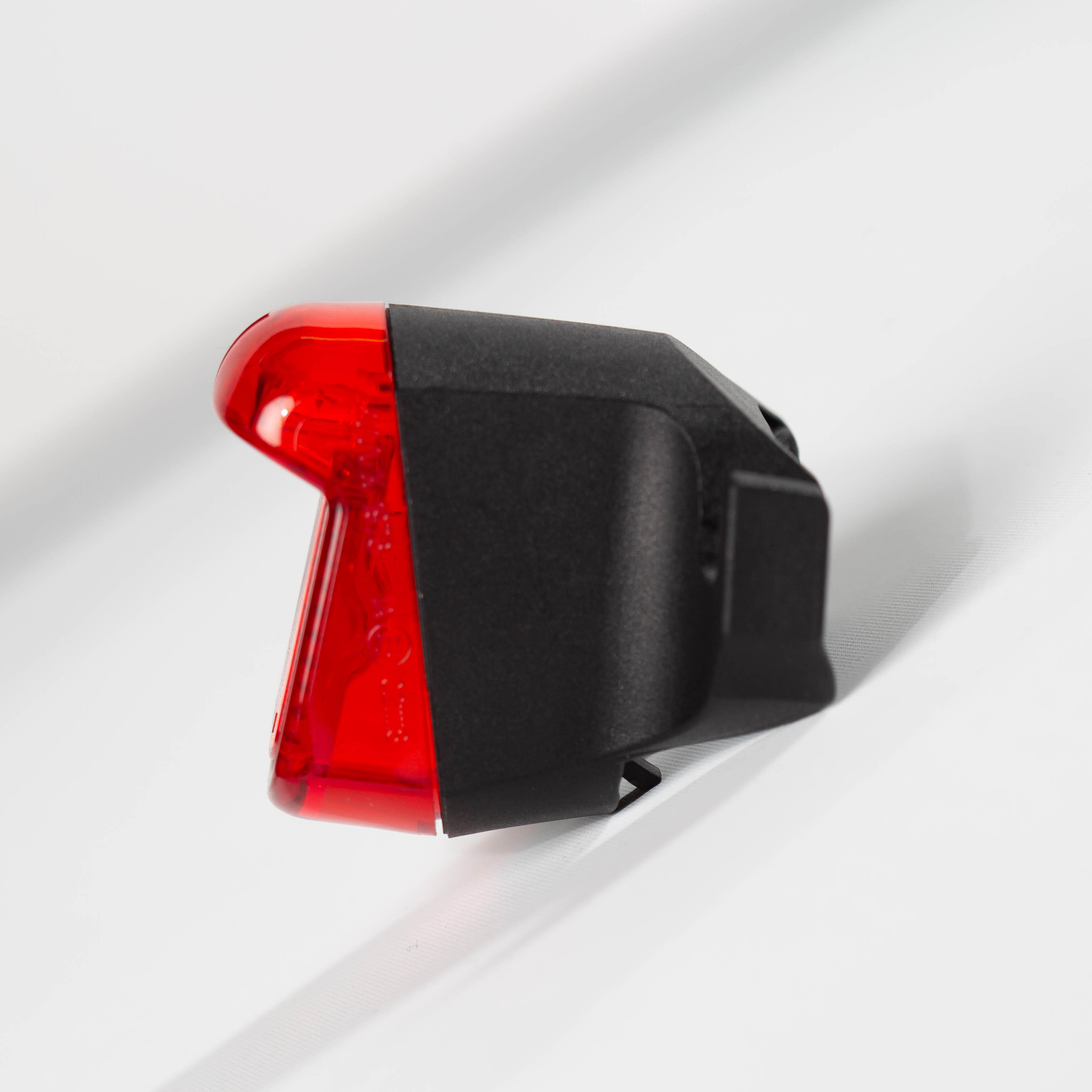

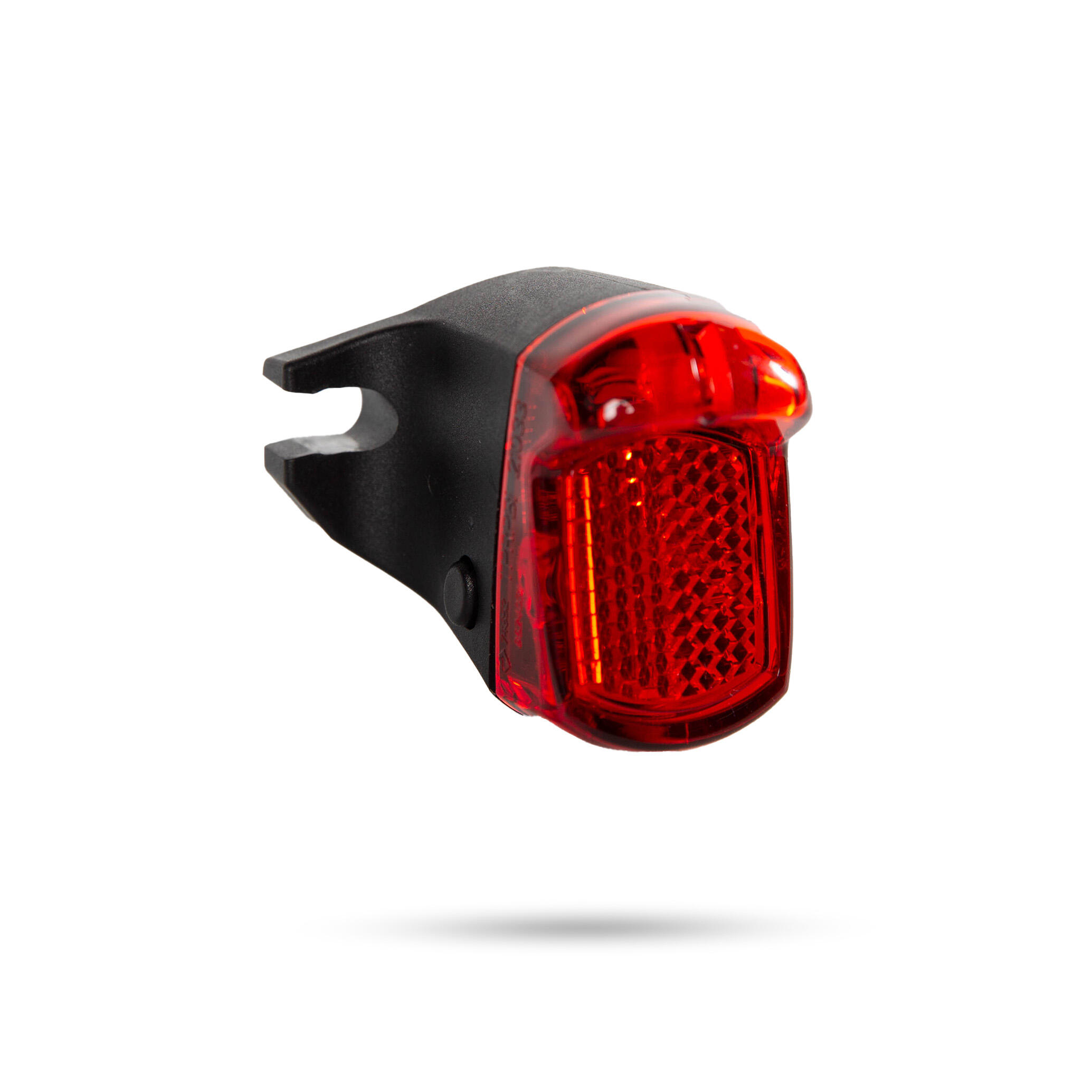

USB Saddle Rail Rear Light RL 510
Store Availability
Store availability
BENEFITS
Autonomy
6 hours in steady mode. No flashing mode. Rechargeable via USB.
Versatility
Very easy to mount on bike saddle rails (from 24" to the biggest adult size)
Visibility
Power: 3 lumens Visible from 220° Continuous mode. Certified for road use
TECHNICAL INFORMATIONS
Safety for everyone
Thanks to feedback provided by cyclists and other road users (drivers, pedestrians, etc.), our design teams have defined optimum features linked to cyclists' visibility.
With one purpose in mind: ensuring cyclists' safety.
Equipped with a special lens, this bike light ensures you are SEEN at a 220 degree angle! And especially an angled light beam. For the same power, approved lighting makes you more visible than non-approved lights.

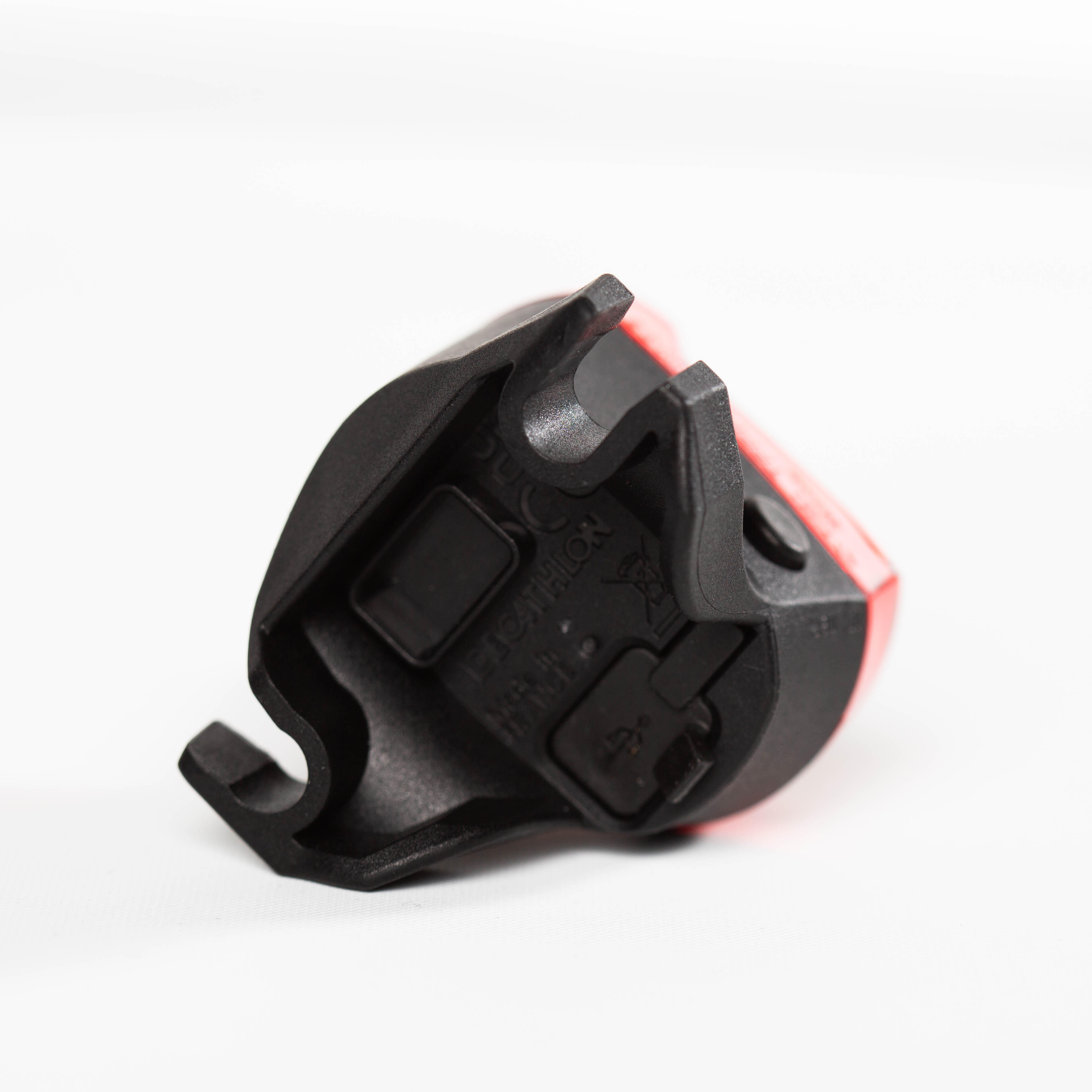

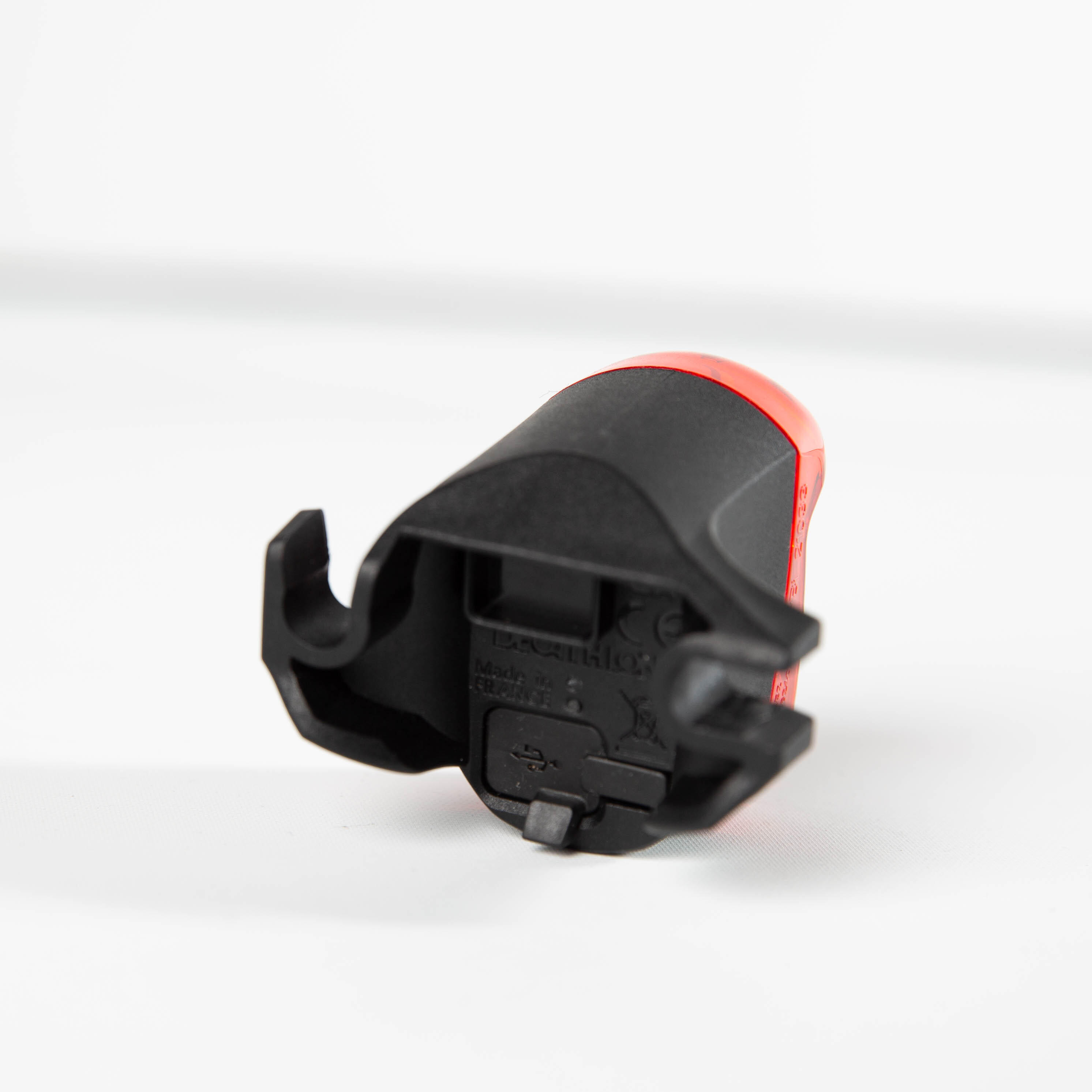

Fix to your saddle rail
The RL 510S light can be used on any type of kids' or adult bike (mountain, trekking, city or road). Simply fix it to your saddle rail.
USB charger
The battery warning light comes on 30 minutes before your lights are going to run out of power. The warning light flashes red. It takes 2 hours to fully recharge via its micro USB cable when plugged into a computer or 5V 500mAh adaptor.
Look after your lights
If you don't use your product for a long time, the LiPo battery might shut itself down. Remember to charge it every 3-4 months when not in use.
In addition, avoid leaving your lights somewhere cold for long periods. LiPo batteries don't like the cold as it makes them lose capacity, so they won't last as long.
A long life
Your product has been designed for a minimum of 2500 hours of use - that's 40,000 kilometres for the average cyclist (commuters and sport cyclists).
TECHNICAL SPECIFICATIONS
LiPo battery capacity: 200 mAh (500 cycles guaranteed)
LED light power: 3 Lumens.Sold with a micro USB cable and mount.
How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (1/4)
The original set of lights on our older folding bikes is being replaced by a front light and mount, a rear light, and a front mount for your bags.
How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (2/4)
If you want to install the new USB rechargeable front light, you'll need:
The stem top cap: 8819793
The front light + mount: 8757414
The V2 computer stem + cover: 8757187
One CHC M6 x 16 mm class 8.8 A4 screw with thread-locking fluid and one DIN 912 M6 A4 washer (sold separately).
How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (3/4)
In addition, you can replace the original front mount with a new one that can take a bike bag. To do this, you'll need:
Front mount: 8750333
Compatible reflector: 8757202
Two iso 7380 torx M5X10 screws with thread-locking fluid and two DIN25201 stainless steel A2 lock washers (sold separately)
How to replace your Tilt folding bike's lights (8524992) with the version used on our current folding bikes (4/4)
If you want to replace the rear light with the new USB rechargeable one, you'll need the following product references:
Rear light: 8757417
Frame plug: 8819778, so that you can plug the oblong hole in the frame
COMPOSITION
composition
Main part: 1.45% Styrene Ethylene Butadiene Styrene, 48.55% Acrylonitrile Butadiene Styrene, 28.49% Polymethyl Methacrylate, 12.21% Battery Rechargeable Lithium, 9.3% 1.2-Benzisothiazole-3(2H)-One
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Restrictions on use
Recommended temperature for use: -15°C to 40°C.
TESTS AND WARRANTY
Warranty
2 Years
Agree by
commuters and sport cyclists in countries such as Germany, France, Spain and Belgium.
