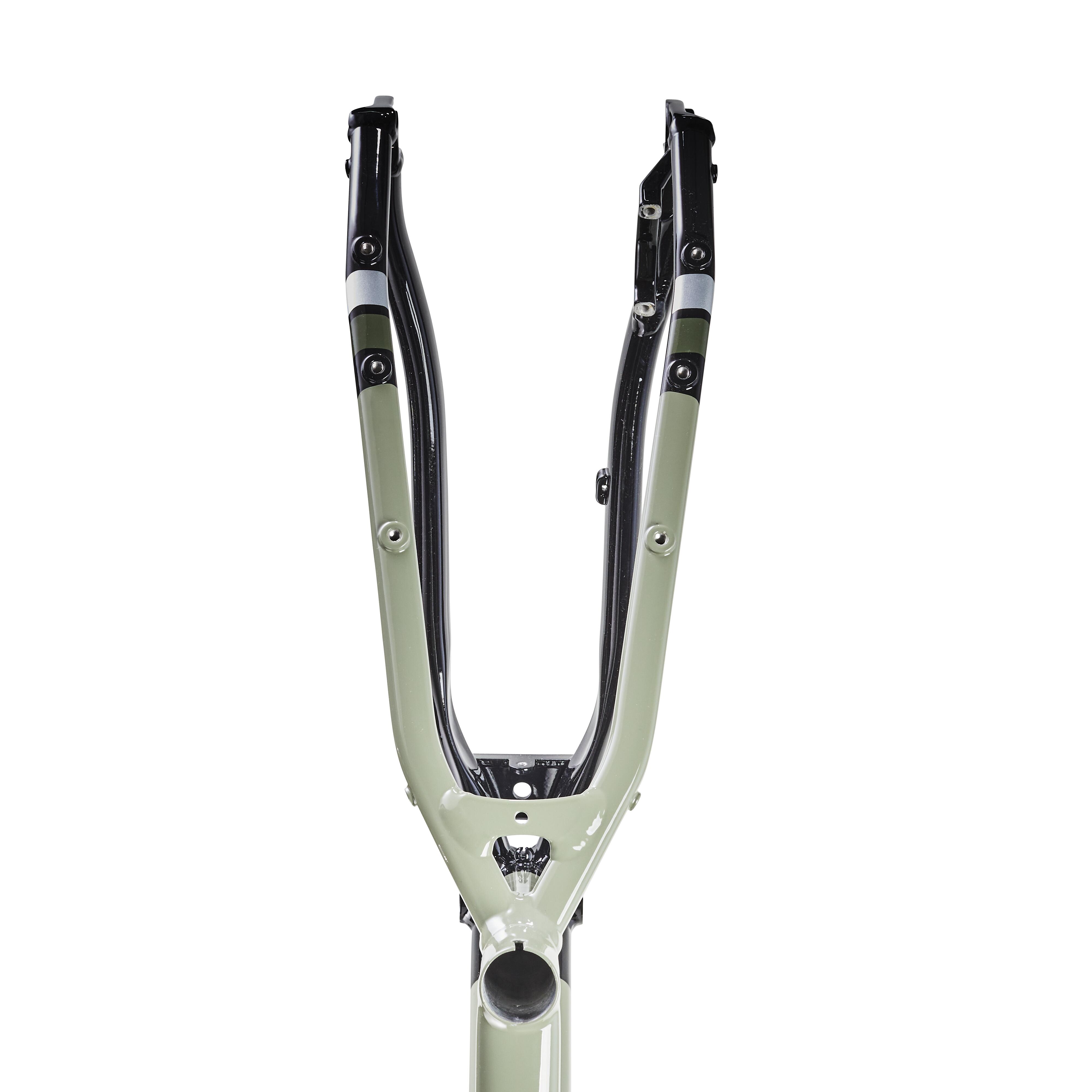

Frame Touring 920 V2
Store Availability
Store availability
BENEFITS
Robustness
This frame on the Touring 900 is certified up to 170kg
TECHNICAL INFORMATIONS

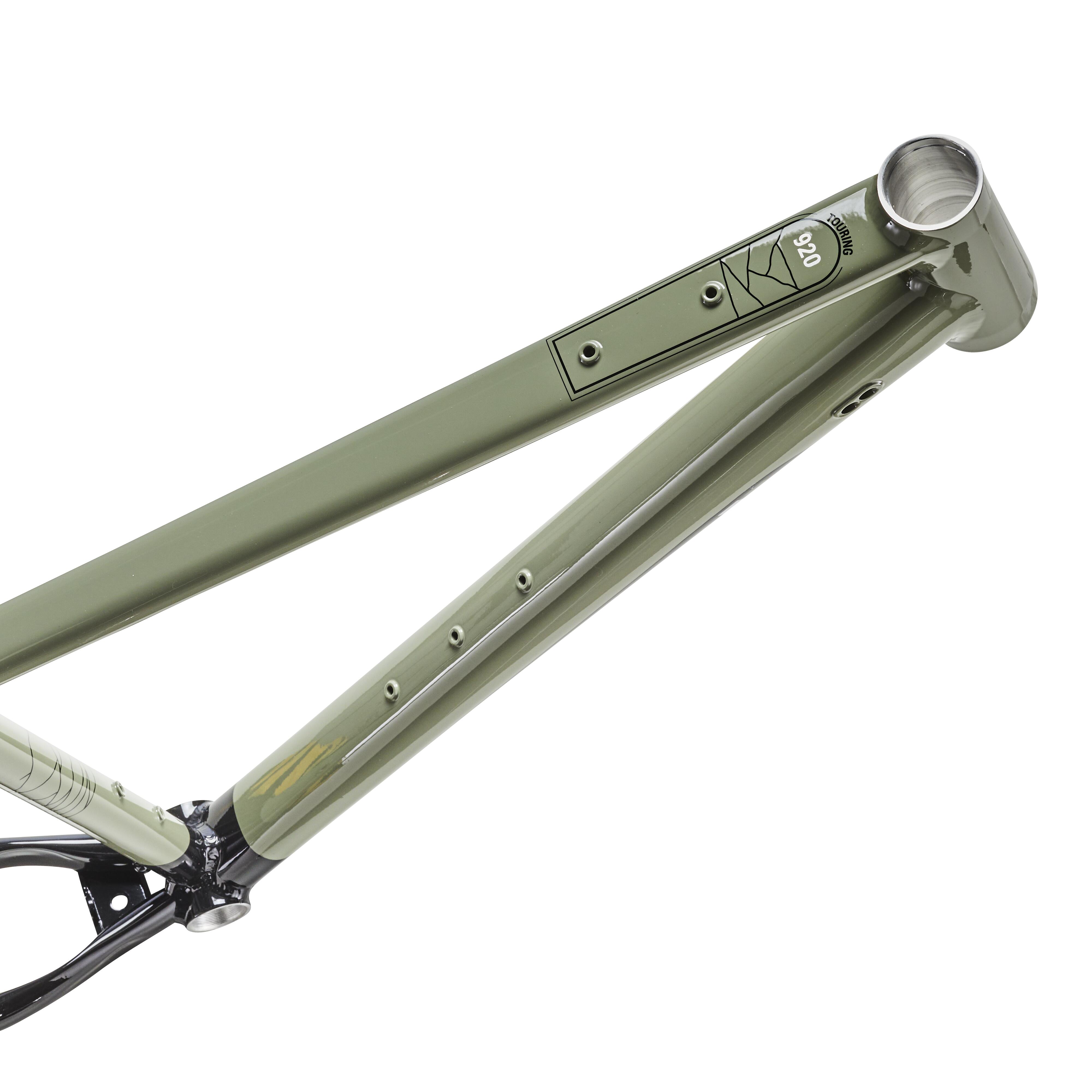

A sturdy, comfortable frame
We have designed this triple-butted aluminium frame for maximum robustness, sturdiness and comfort. More than 500,000 km of testing under its belt on all continents and in all weather conditions. Internal cable routing, multiple mounts on the frame for attaching all your accessories and pannier racks.

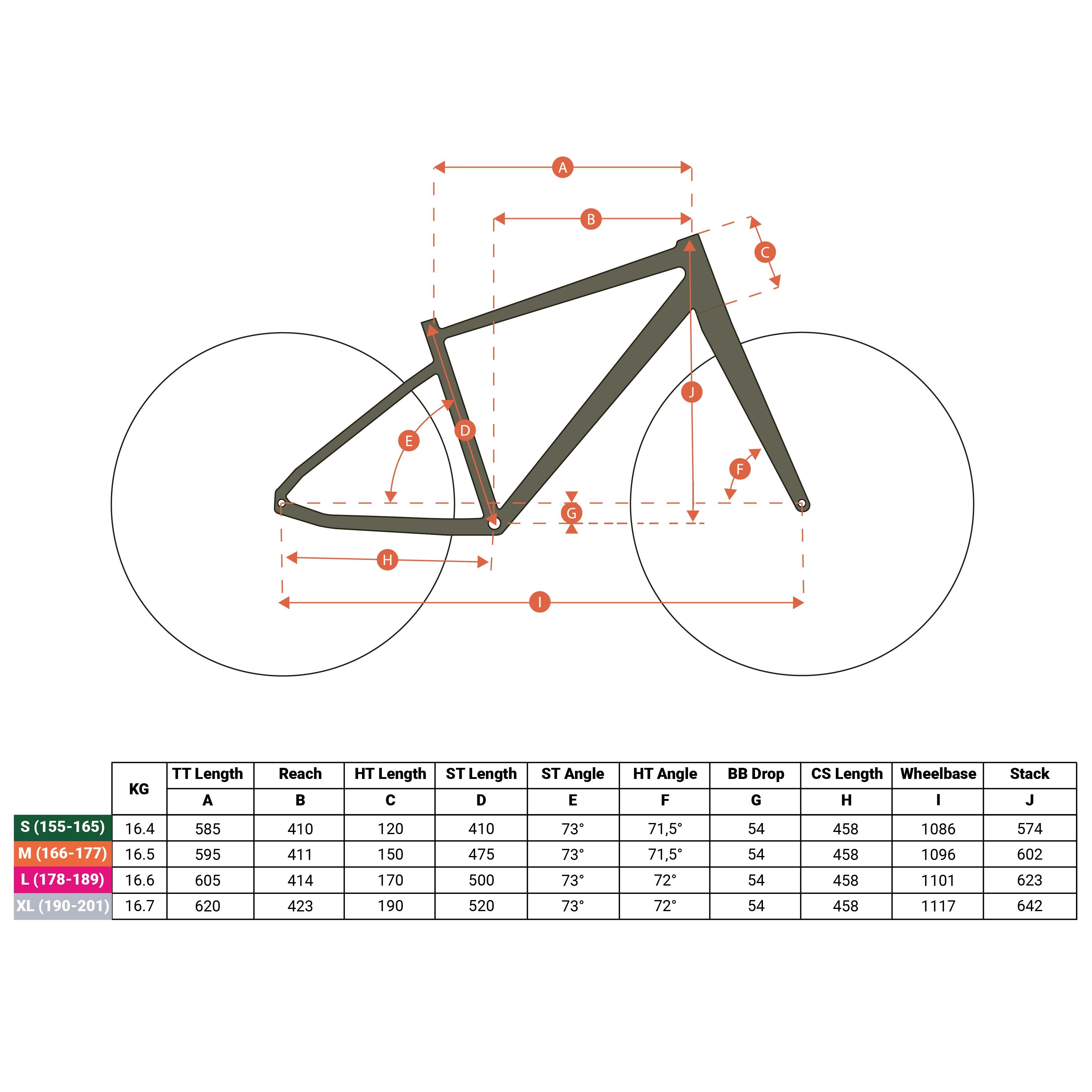

Technical features
Composition: Aluminium 6061
- frame weight: 2.3kg in size M
- bottom bracket width: 73mm
- rear axle type: 12x142mm thru axle
- headset type: Upper SHIS: ZS44/28.6
Lower SHIS: ZS55.95/39.76
Upper frame diameter: 44
Lower frame diameter: 55.95
Fork pivot: conical 1"1/8 - 1.5"
- seat post diameter: 31.8mm
Capacity
The frame is sold on its own
The bolts, derailleur hanger and rear wheel axle are sold separately
COMPOSITION
composition
Main part: 100.0% Aluminium
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
TESTS AND WARRANTY
Parts guarantee
lifetime warranty
