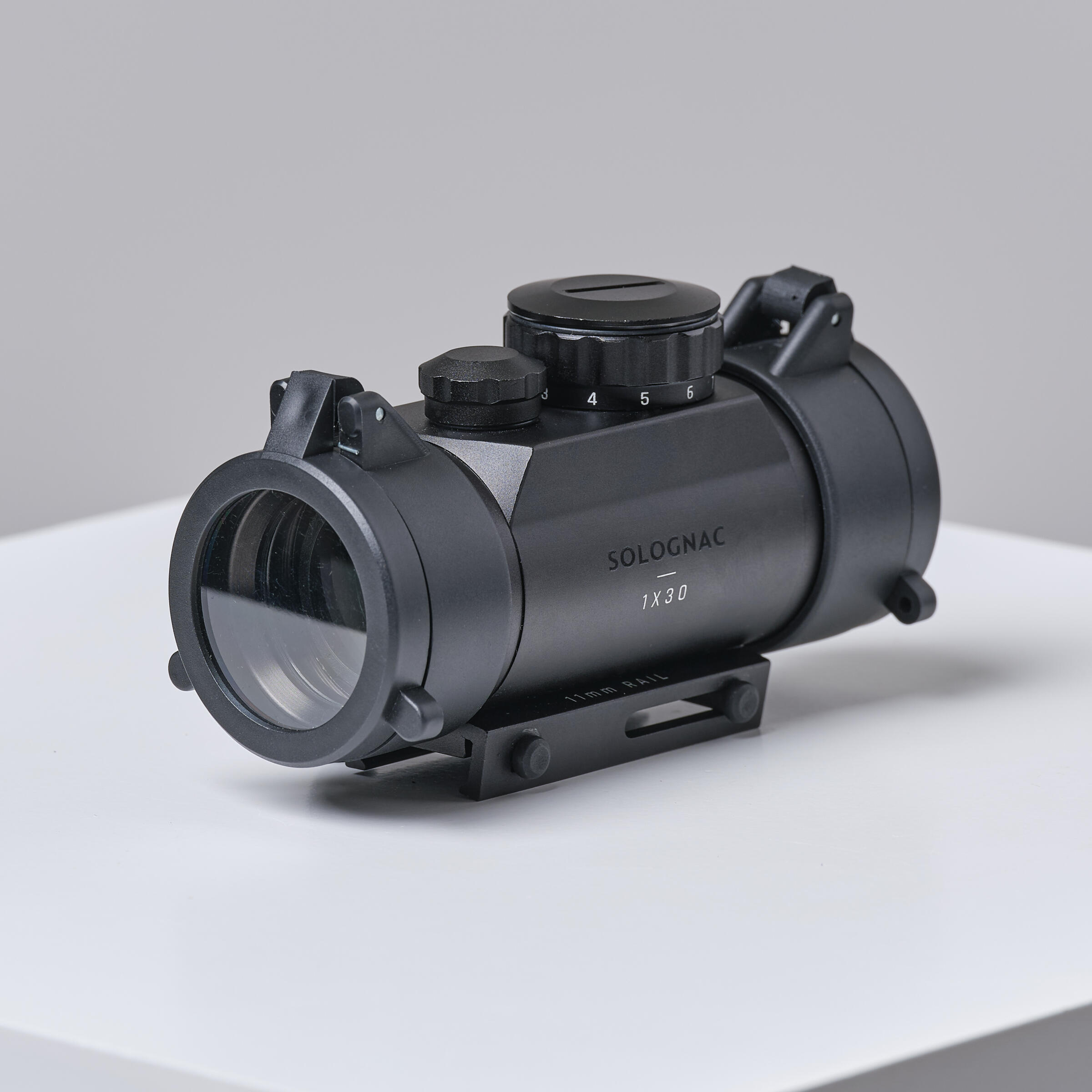

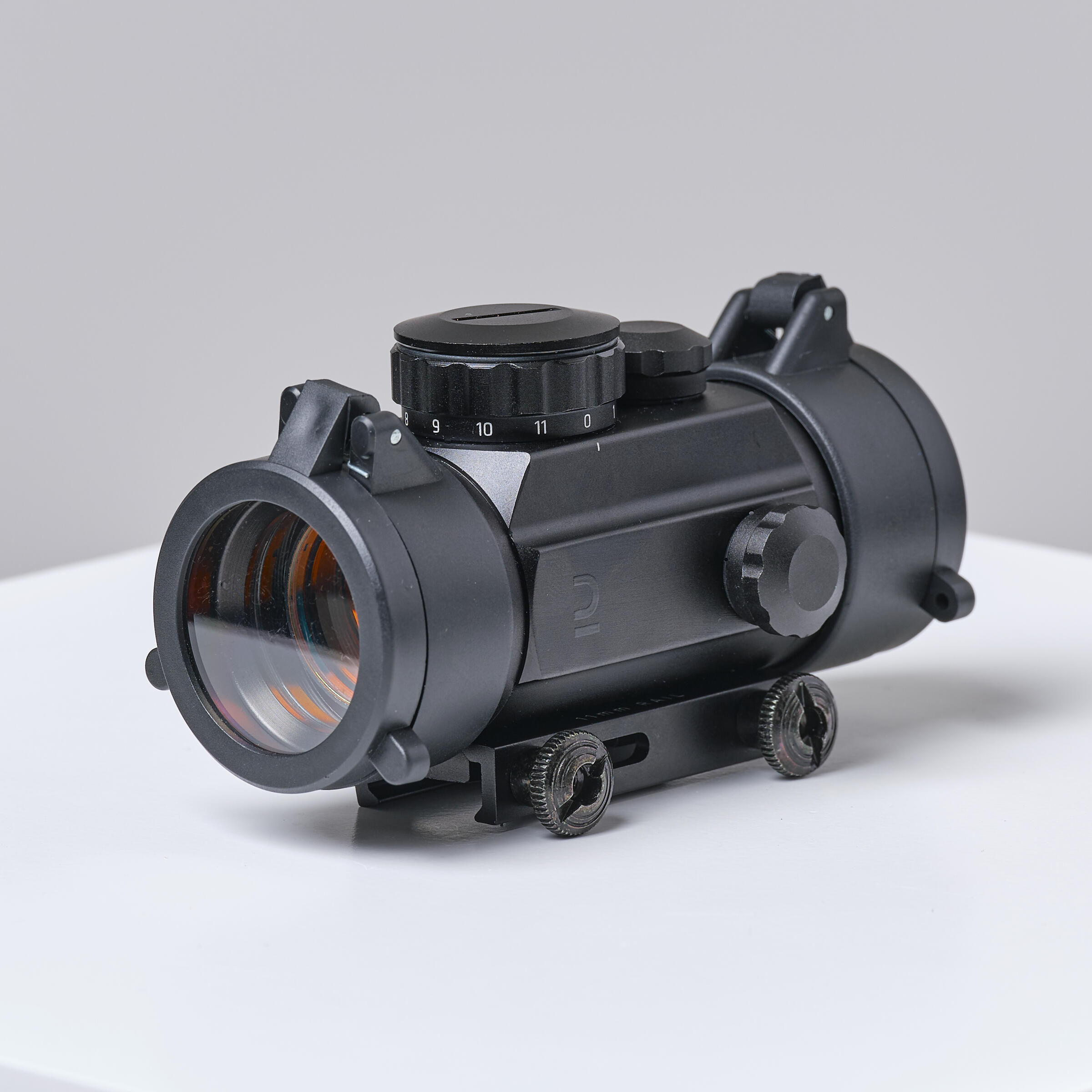

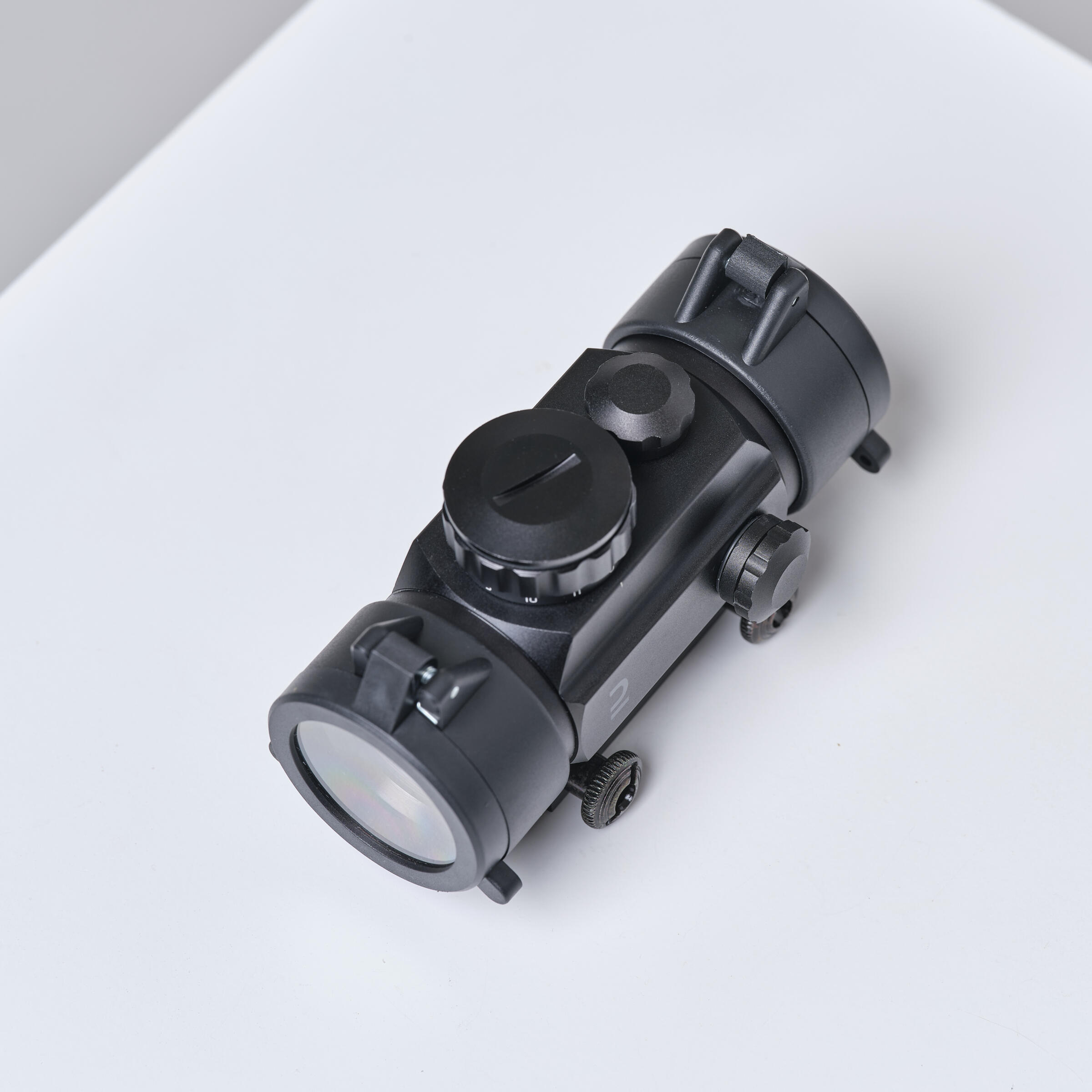

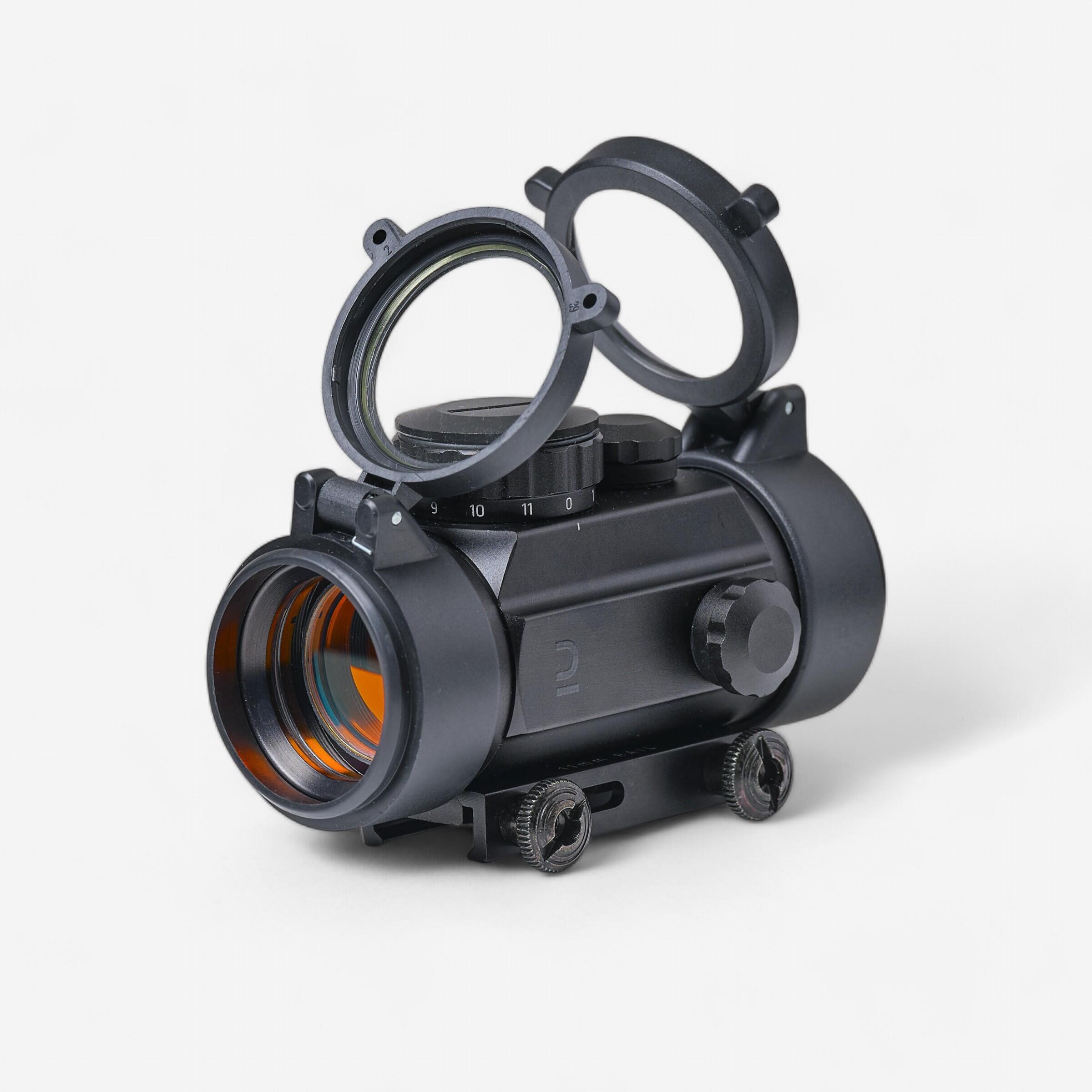

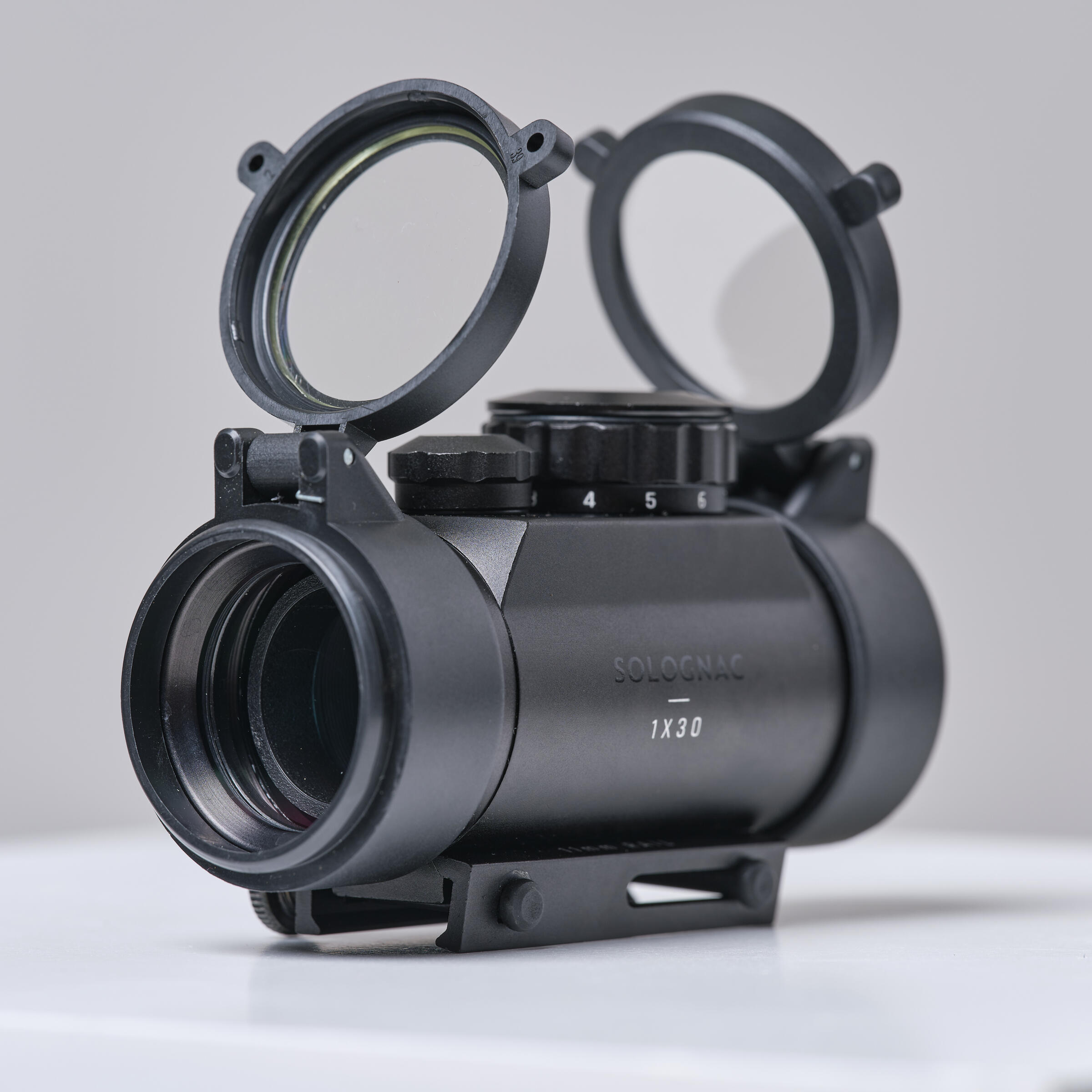

RED DOT 3 MOA UNIVERSAL 11/22 mm.
Store Availability
Store availability
BENEFITS
Compatibility

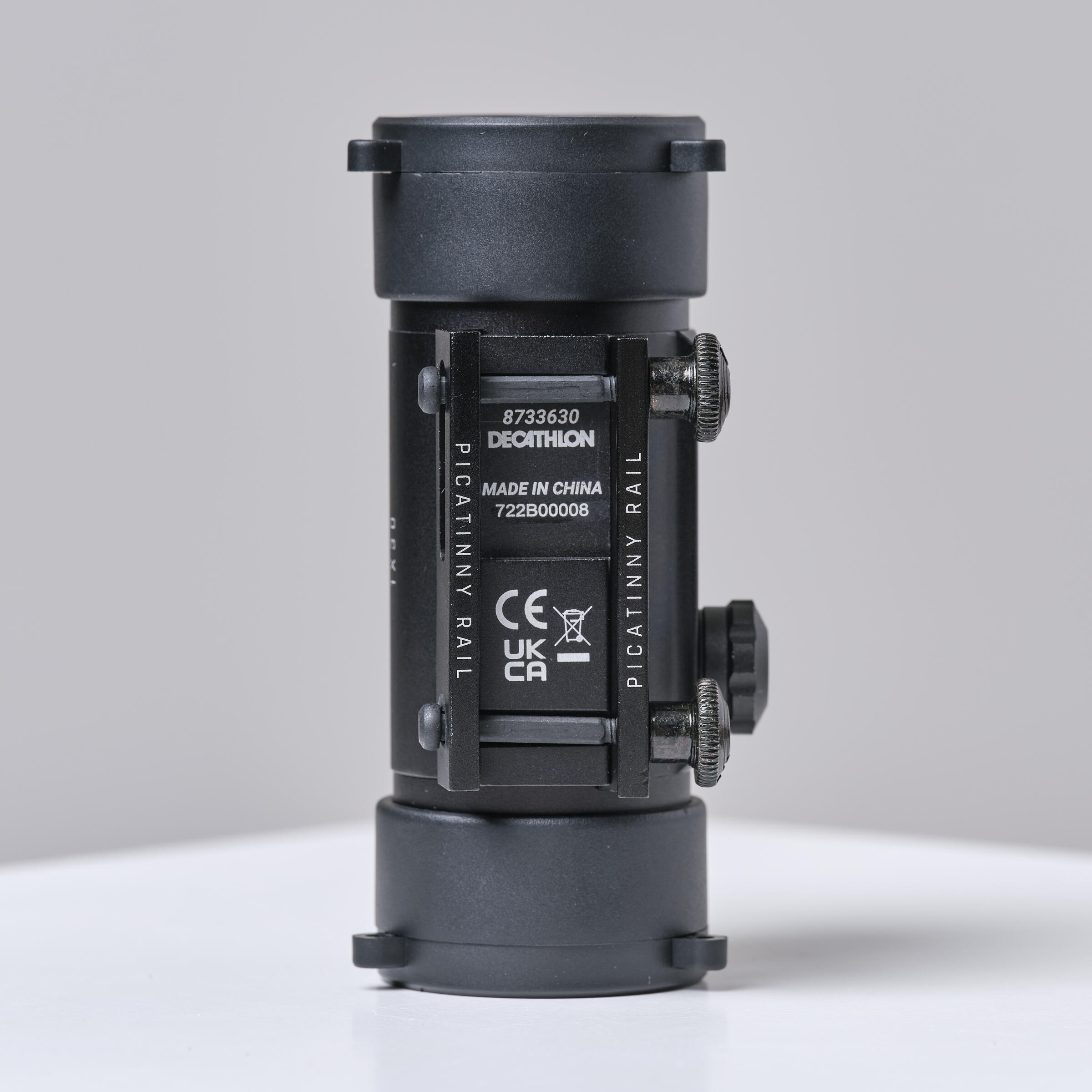

Fits most weapons equipped with 11 or 22 mm rails (Picatinny)
Visually efficient
A 3 MOA red dot (1 cm diameter disc at 10 m)
Adjustable
11 brightness levels
Durability
withstands moderate recoil (pellet rifle, 22 LR, max .222 Rem)
TECHNICAL INFORMATIONS

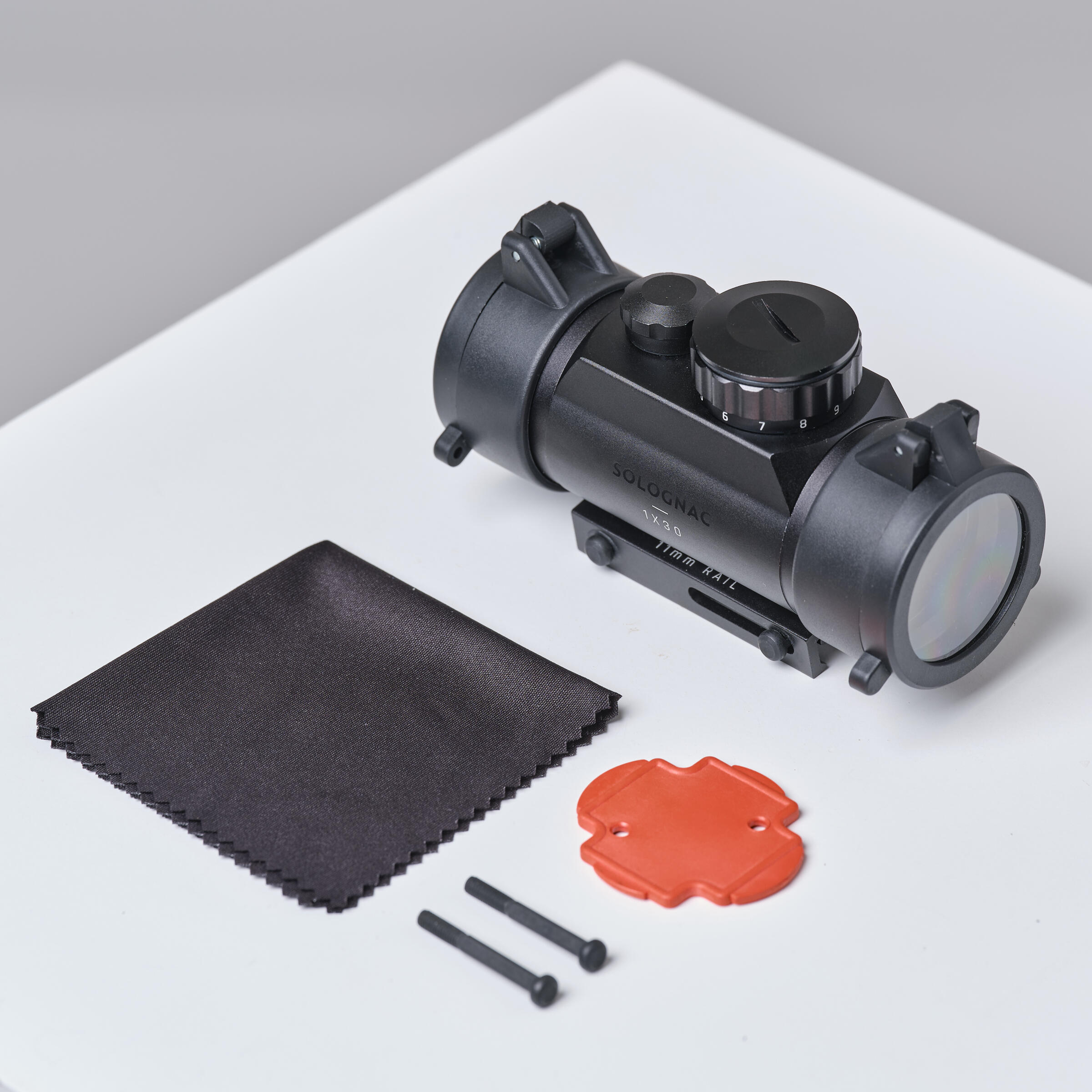

Package contents
Package contents:
- The red dot

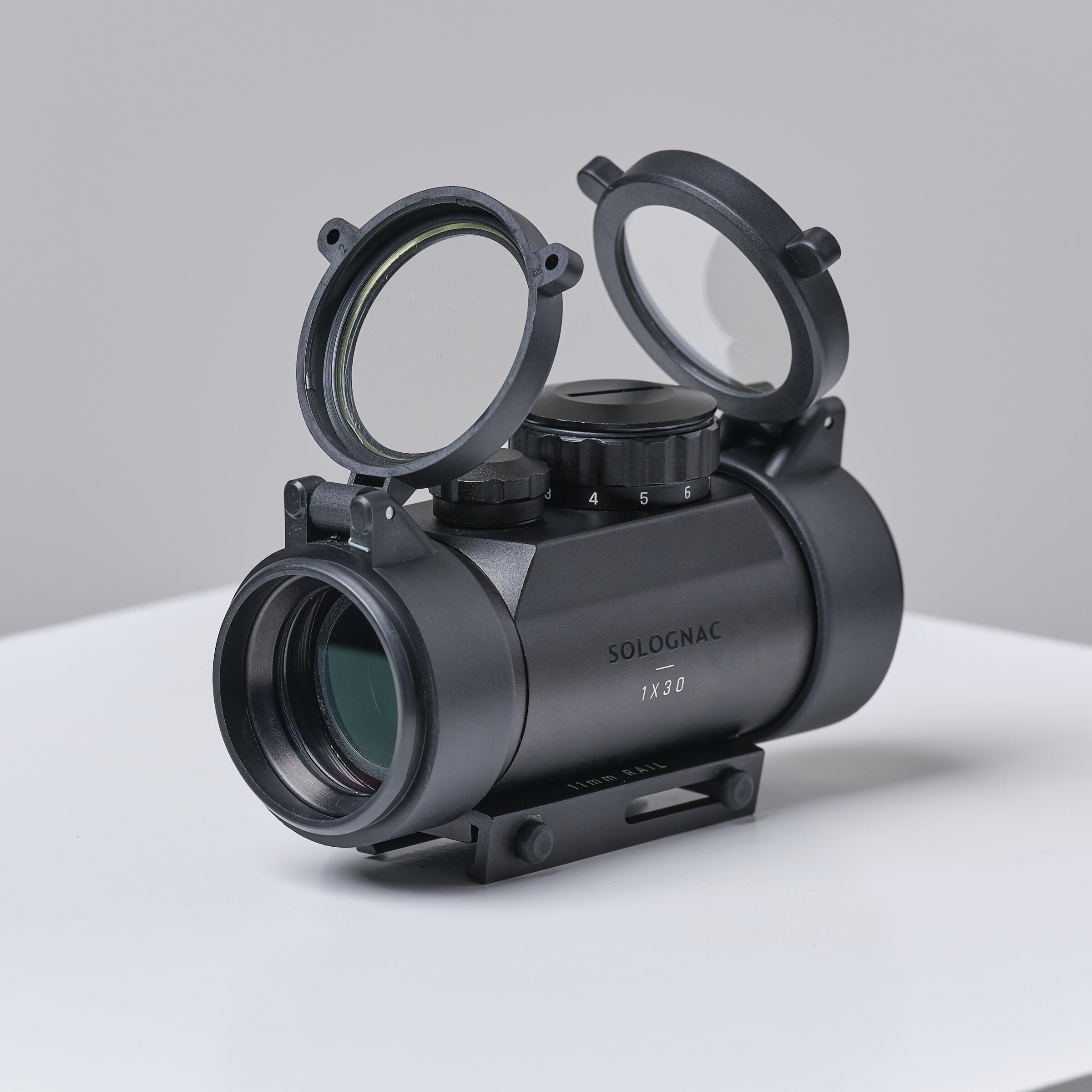

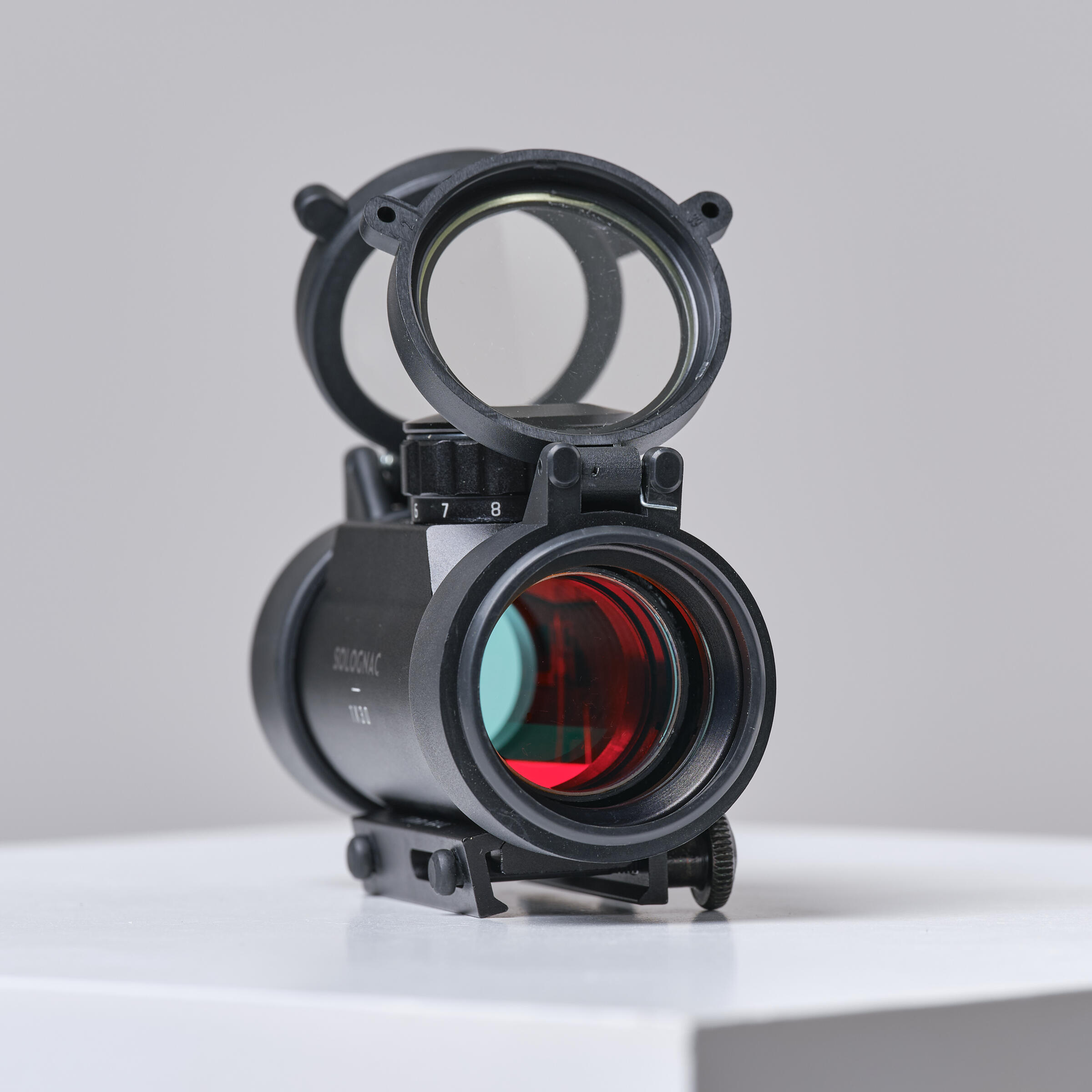

- 2 transparent protective caps
- 1 CR2032 battery
- A microfibre cloth

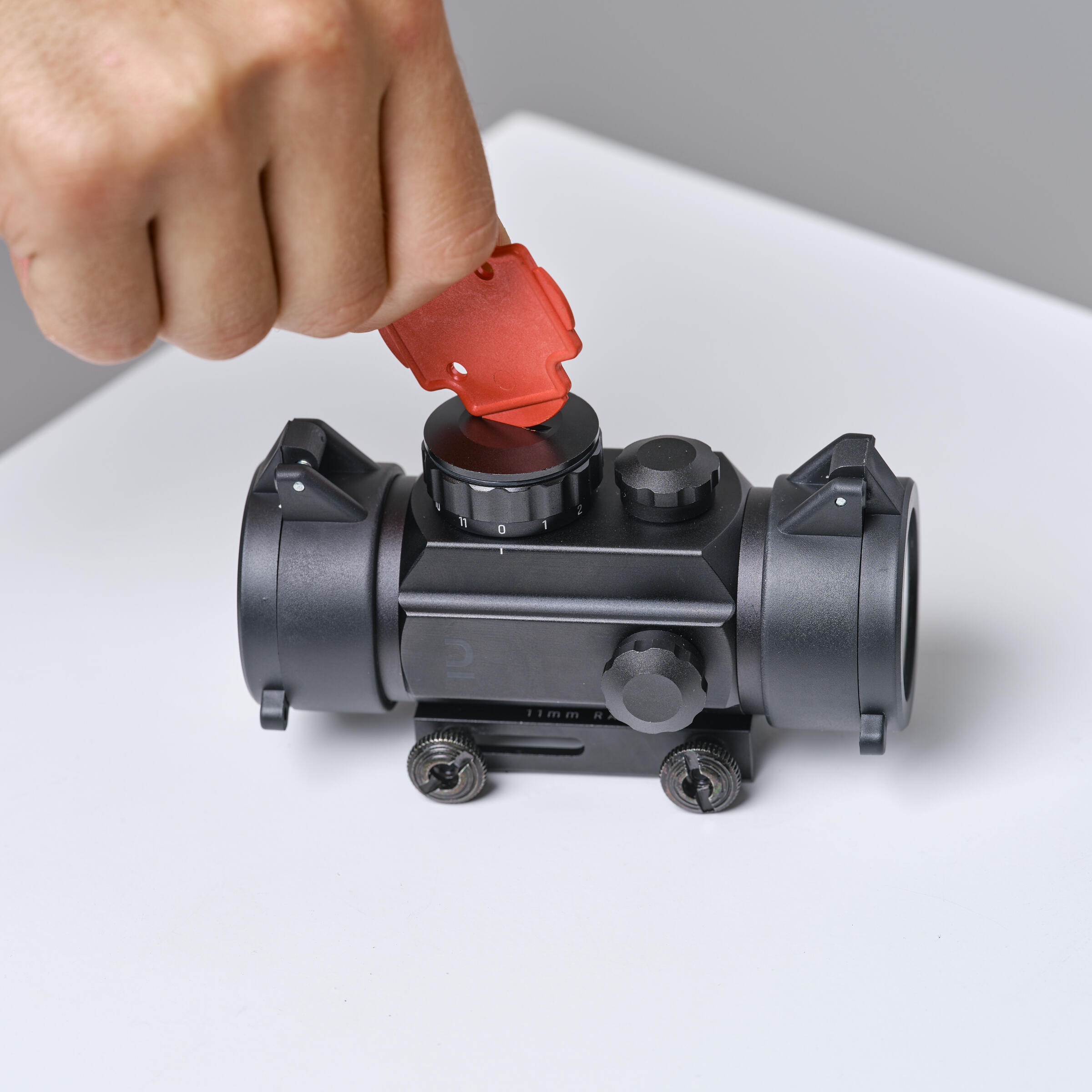

- A plastic tool for unscrewing the caps.

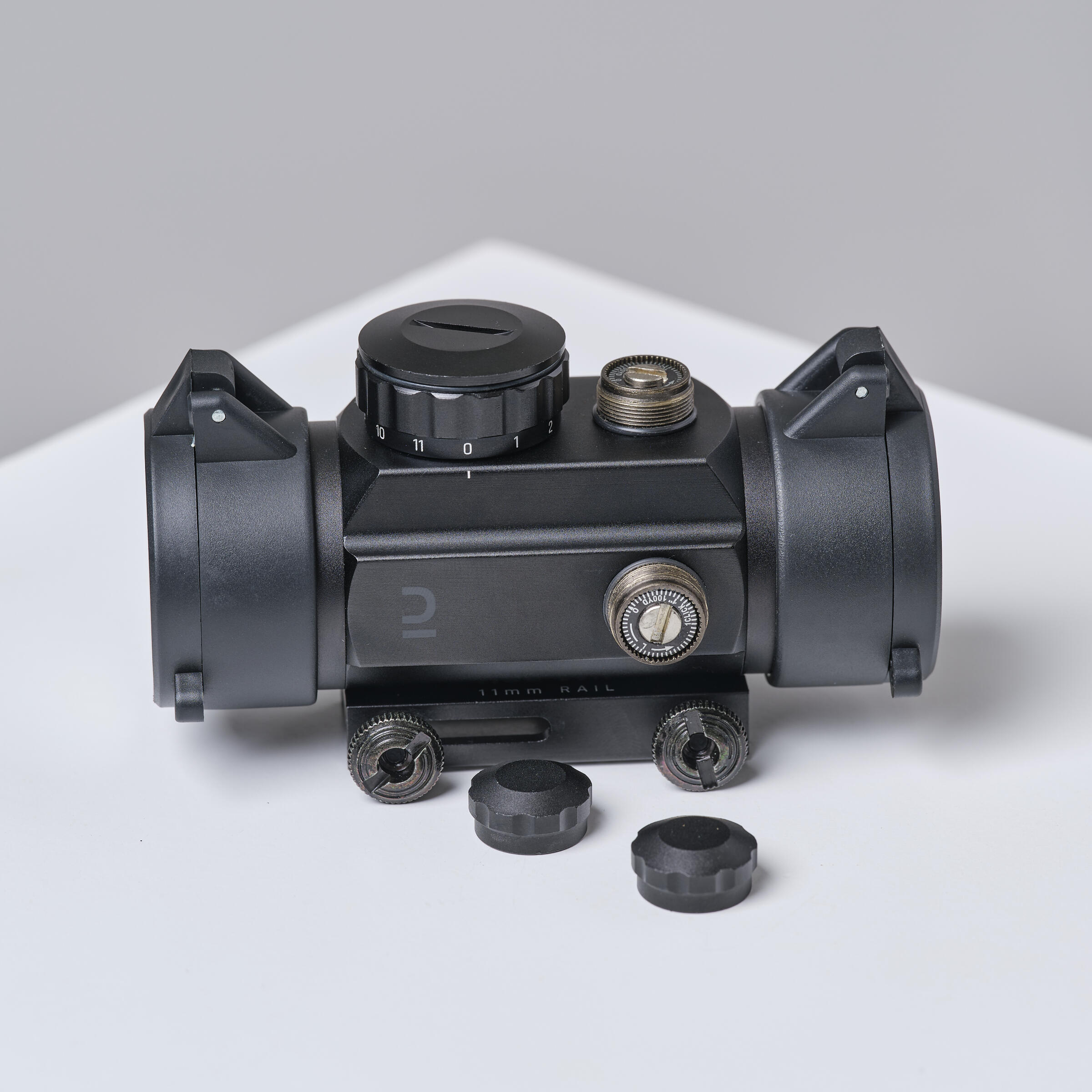

- 2 additional screws for an 11 mm rail configuration.
Technical features
Magnification: 1x
Lens diameter: 30 mm
Red dot size: 3 MOA
Weight (g): 218 grams
Length in mm: 94 mm
Battery life at level 11: 58 hours
Battery life at level 9: 7+ days.
One scale = 1 MOA = 3 mm at 10 m
Elevation range = 70 MOA
Light transmission = 77% at 550 nm
Parallax distance = 50 m
Usable in all weather conditions
Anti-fog: Purged with nitrogen.
Understanding the size of a red dot
The size of red dots is usually given in MOA. MOA stands for Minute Of Angle and is equal to 1/60 of a degree. This MOA corresponds with a distance 29 mm to a distance of 100 m. This means that, for this red dot, the 3 MOA point completely covers a disc (3 x 29 mm= 87 mm diameter) at a distance of 100 metres. A cross-multiplication lets you deduce the size of the dot, no matter the distance.
COMPOSITION
composition
Metallic structure: 20.0% Glass Mineral, 80.0% Aluminium
TESTS AND WARRANTY
Warranty
2 Years
