29" Full Suspension Electric Mountain Bike E-Expl 520 S - Bright Red
Store Availability
Store availability
BENEFITS
Autonomy
Ride up to 80 km on fairly flat ground with the internal 500 Wh battery
Power
Attack your climbs with the 460 W Brose T motor with 70 Nm of torque.
Connectivity
Download the Decathlon Ride app and unleash your bike's full potential!
Control
Enjoy: upright position, 140 mm full suspension, 60° CORE saddle
Smooth pedalling
The built-in motor automatically assists you when needed. Perfect for MTBing.
Braking power
Tektro M276 hydraulic brakes with 203 mm diameter discs
TECHNICAL INFORMATIONS
In a nutshell
Weight: 24.4 kg (in size M without pedals)
Mid-drive motor: Brose T aluminium 70 Nm
Battery: 500 Wh
Connectivity: Decathlon Ride mobile application
Frame material: Aluminium
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 140 mm / 140 mm
Drive train: 1x10
Brakes: Hydraulic
Seatpost: Telescoping
Frame, handlebar and stem warranty: lifetime
Motor
BROSE DRIVE T Aluminium motor
Mid-drive position
70 Nm torque
Torque sensor
Max assistance: 320 %
Max power: 460 W
In accordance with EU regulations, the electrical assistance cuts out above 25 km/h
Battery
Battery fully integrated into the frame with side outlet for easy gripping.
Capacity: 500 Wh
With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles).
Compatible with a 360 Wh battery extension, sold separately (up to 50 additional km, at a low gradient)
Display
ERGO 900
TFT colour screen,
5 assistance modes: 1,2,3,4
Pedestrian mode assists with walking.
Connected via Bluetooth.
The control unit is installed on the left side and tilted downwards, for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.

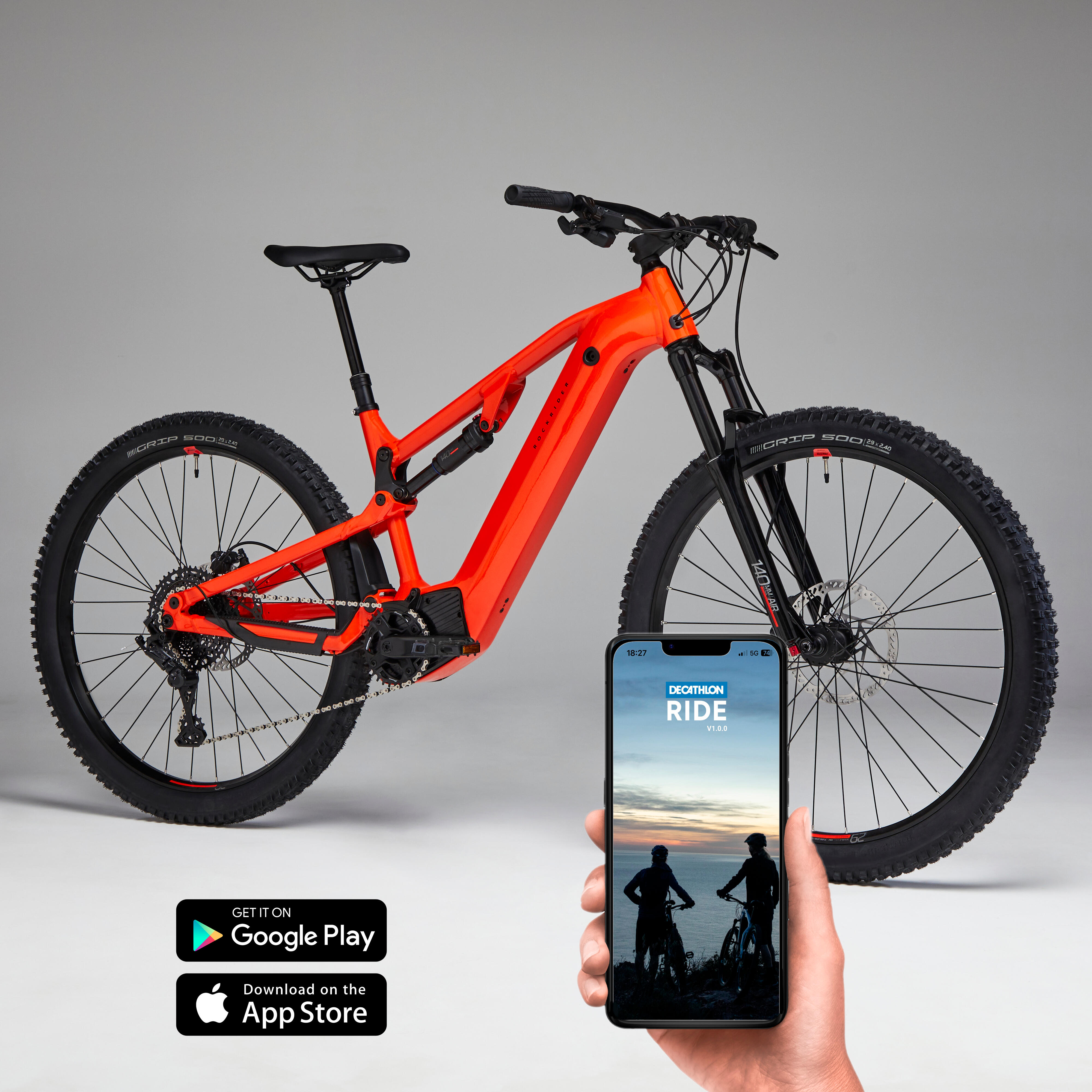

Connectivity
Download the Decathlon Ride app and unleash your bike's full potential!
The Decathlon Ride app is compatible:
- For Apple devices: iOS 8 and later versions
- For Android telephones: Android 7 and later versions.

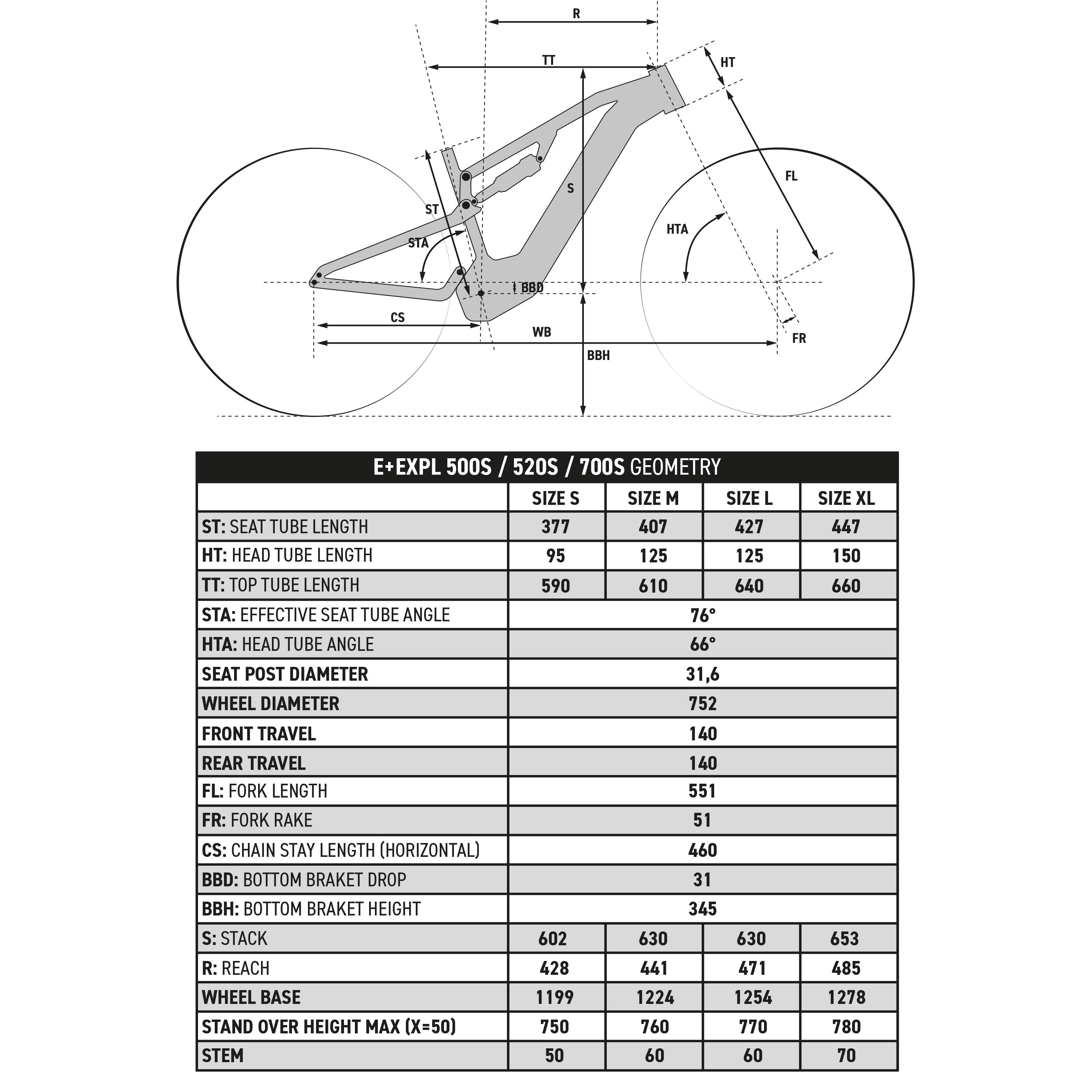

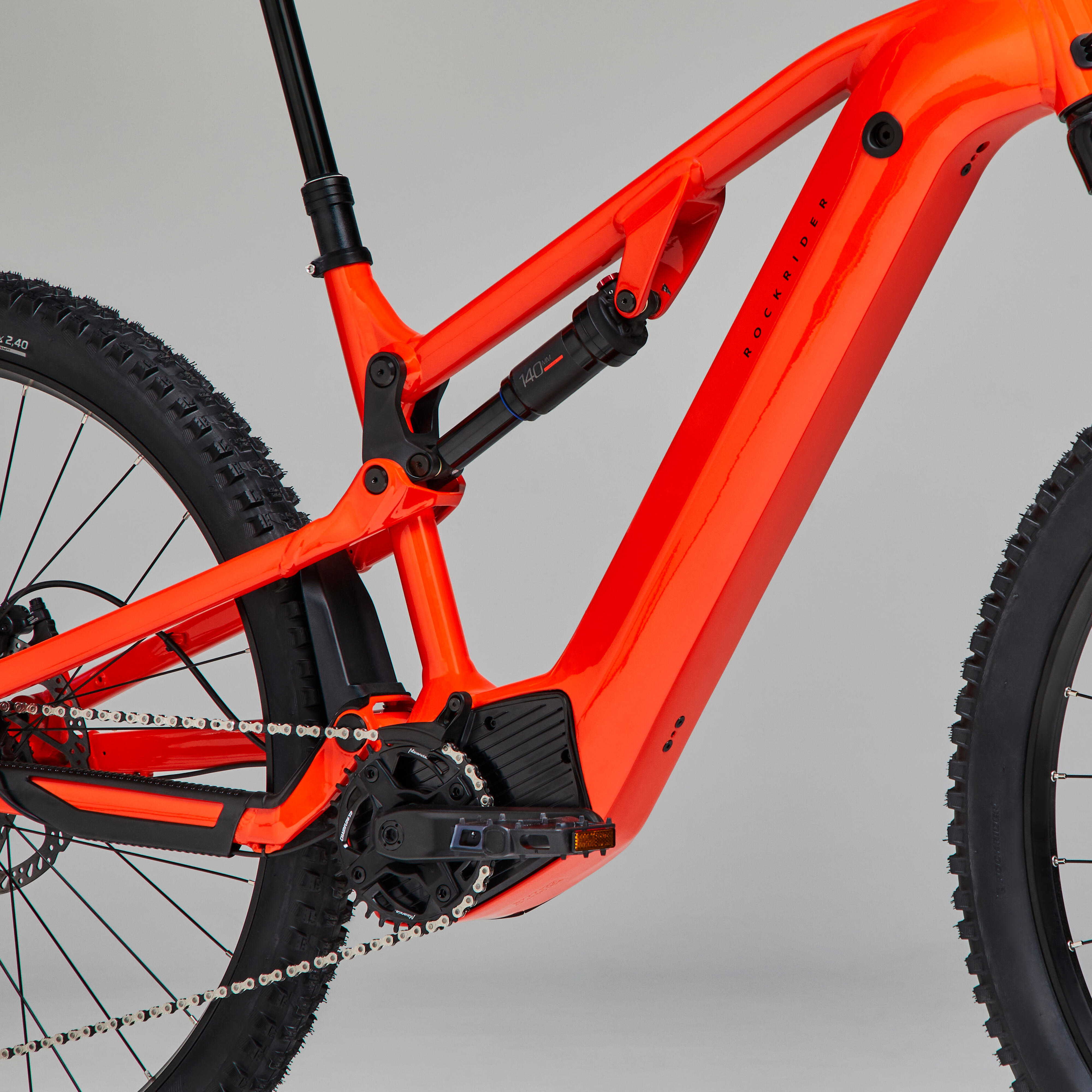

Frame
6061 aluminium suspended frame
Single pivot with tie rod
Max rear travel 140 mm
Fully built-in battery, removes from the side
Conical steering socket
31.6 mm diameter seat tube
Mount for 1 bottle cage
Drive train
Microshift ADVENT X
Chainring: 34 teeth with chain guide
Rear derailleur: Microshift ADVENT X
Crank: 170 mm
Right shifter: Microshift ADVENT X
Cassette: Microshift ADVENT X Series H 11-48 10-speed
Chain: KMC e10S
Suspension
X-Fusion McQueen R fork
Travel: 140 mm
Dampers: 34 mm
Axle: Thru axle
Format: 110 x 15 mm
Offset: 46 mm
Technology: Roughcut Air
Adjustments: Bounce, air pressure
X-Fusion PRO R shock
Dimensions: 210 x 55 mm
Mount: Standard

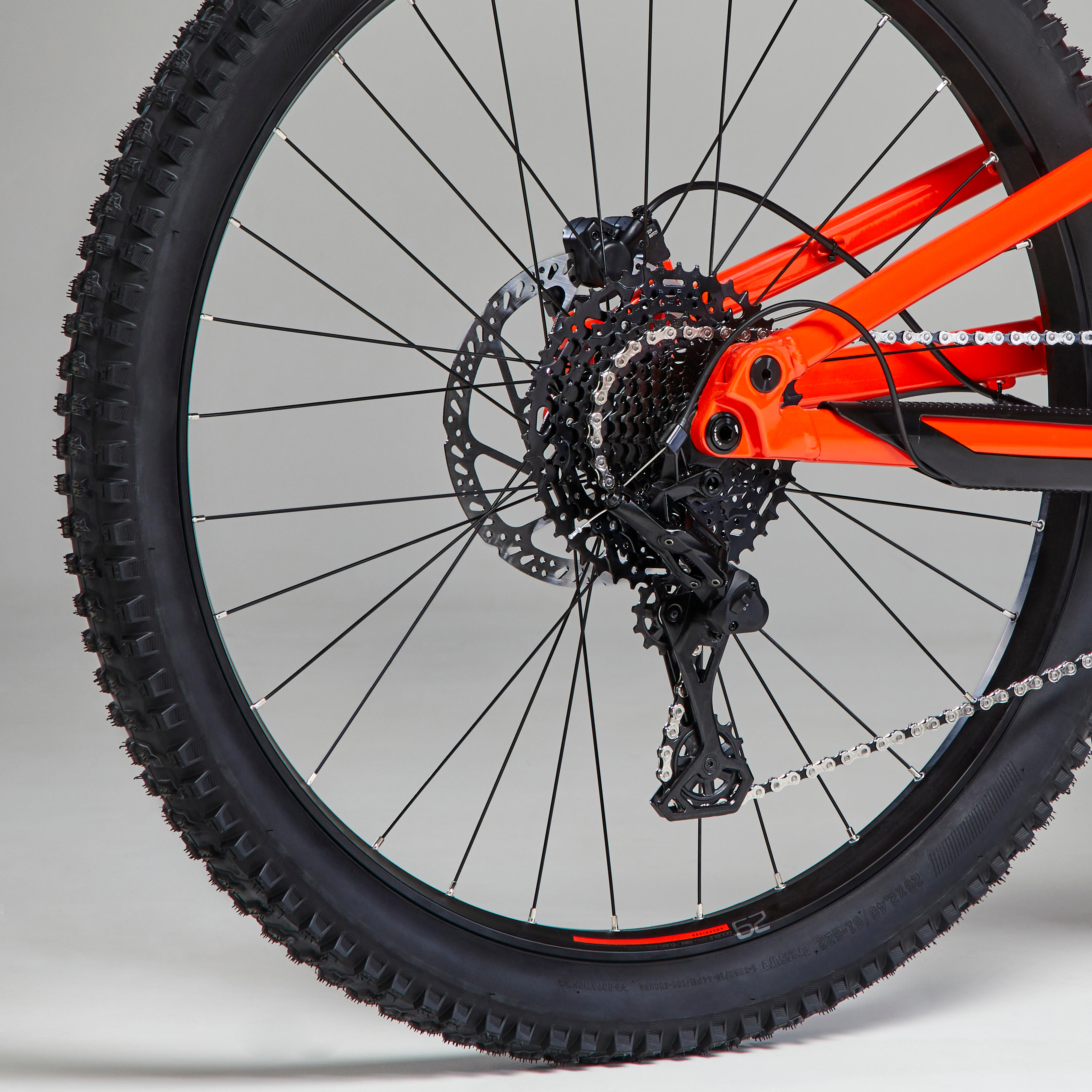

Wheels
Rockrider 29” 30c wheels
29" size compatible with fat tyres: up to 2.6"
Internal width between hooks: 30 mm
32 spokes
Format: Boost
Discs: 6 holes
Freewheel hub: HG
Sealed bearings
Tubeless Ready, with a sealed rim strip (requires TUBELESS tyres, Presta valves, and tyre sealant)
Brakes
Tektro M276 hydraulic disc brakes
Number of pistons: 2
Front disc: 203 mm
Rear disc: 203 mm
6-bolt mount

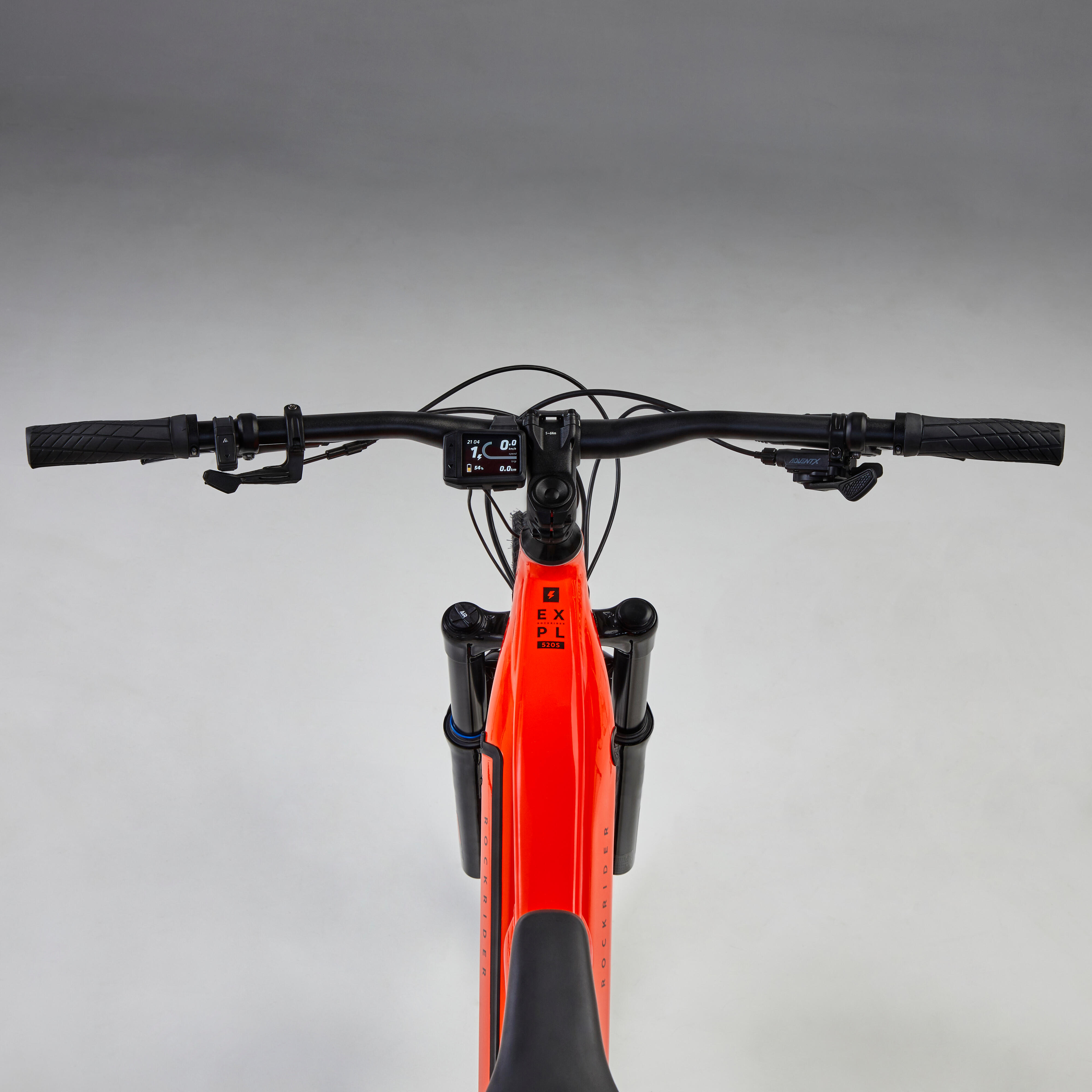

Riding position
Rockrider Sport handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 740 mm (S, Ms) 760 mm (L, XL)
Rise: 10 (S, M), 25 (L, XL)
Upsweep: 0° (S, M), 6° (L, XL)
Backsweep: 9°
Rockrider stem
Material: Aluminium
Angle: 7°
Sizes: 50 mm (S), 60 mm (Ms / L), 70 mm (XL)
Grips:
Rockrider Ergo Lock On
Headset
ZS 44/28.6 - 56/40
SADDLE / SEAT POST
Saddle: Decathlon Core 60°
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (Ms/L) / 170 mm (XL)
Weight: from 650 g
Seat clamp: aluminium, 34.9 mm diameter
Tyres
Rockrider Grip 500
29" x 2.4"
Tubeless ready
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall with puncture-resistant side strip
Tread: Dual lug
PEDALES
Rockrider Flat Evo Resin
Accessories included
Your MTB comes with:
2A charger
bell,
lights,
wheel reflectors
and pedals.
COMPOSITION
composition
Bike frame: 100.0% Aluminium
Tips for storage and maintenance
Storage tips
Store it in a warm, dry place away from corrosive products and salty air. Never store with the battery flat, and remember to recharge it at least once every six months.
Restrictions on use
Max weight: 120 kg (rider + kit + bike).
TESTS AND WARRANTY
Agree by
Our engineers always have real riders test all our products in real conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
Parts guarantee
Lifetime (frame, stem, handlebars). Availability of spare parts: 2 years.Guaranteed for 500 charges.
