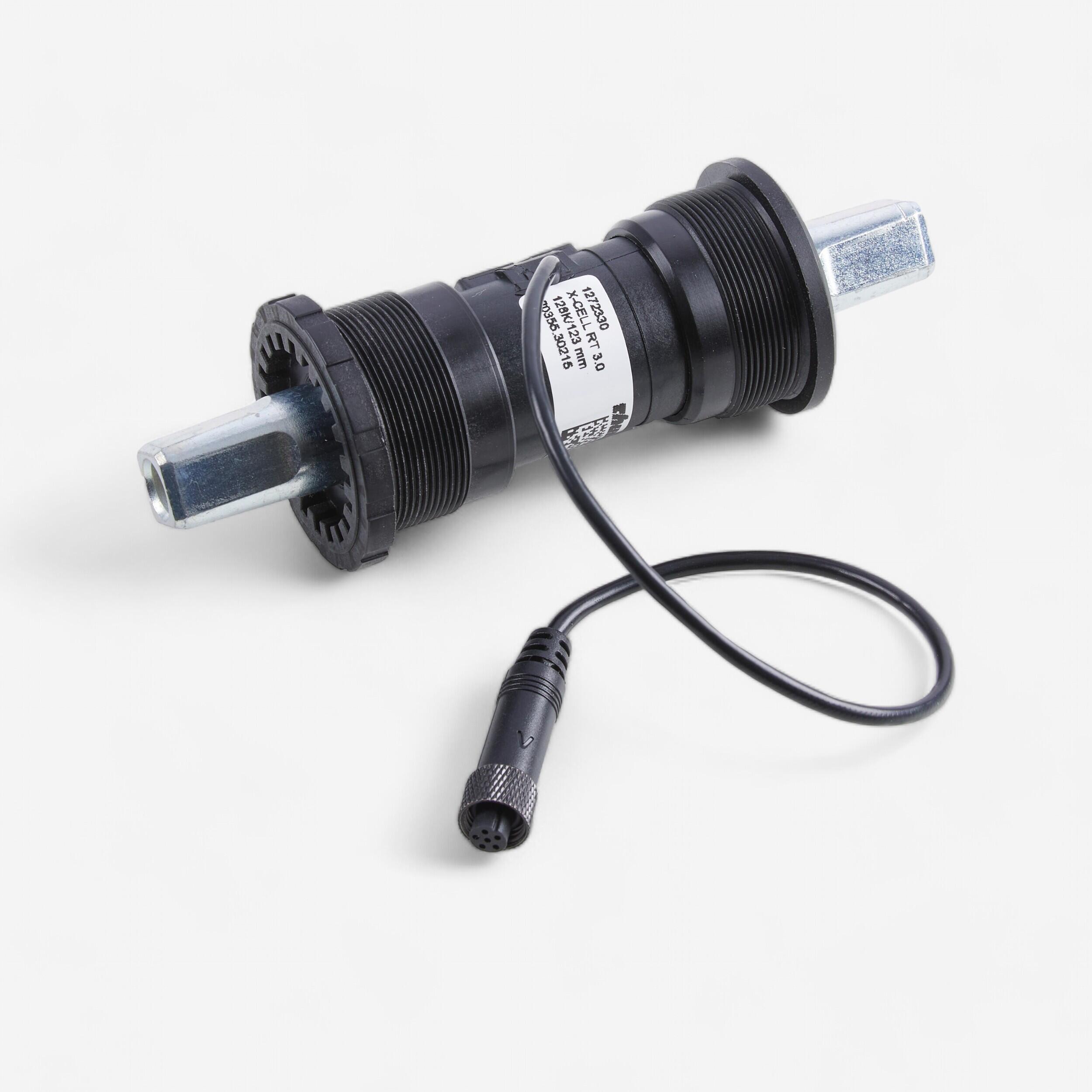

68 mm Square Taper Bottom Bracket E-ST500 V2 with Torque Sensor
Store Availability
Store availability
BENEFITS
Compatibility
Rockrider E-ST 500 V1 and V2
Repair
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
Bottom bracket width: 68mm
Length: 128 mm
Bearings: sealed cartridge
Type of axle: Square
Bottom bracket type: BSC/BSA (English, Euro)
Care advice
Do not use a pressure washer on the bottom bracket.
Assembly tips
Mount the left cup first, then the right, so that the bottom bracket doesn't turn and the cable doesn't get caught.
A bit of grease on the bearings will also help.
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
COMPOSITION
composition
Main part: 10.0% Polyamide, 10.0% Polyurethane, 80.0% Steel
Tips for storage and maintenance
Storage tips
Store the bottom bracket in a cool, dry place away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
