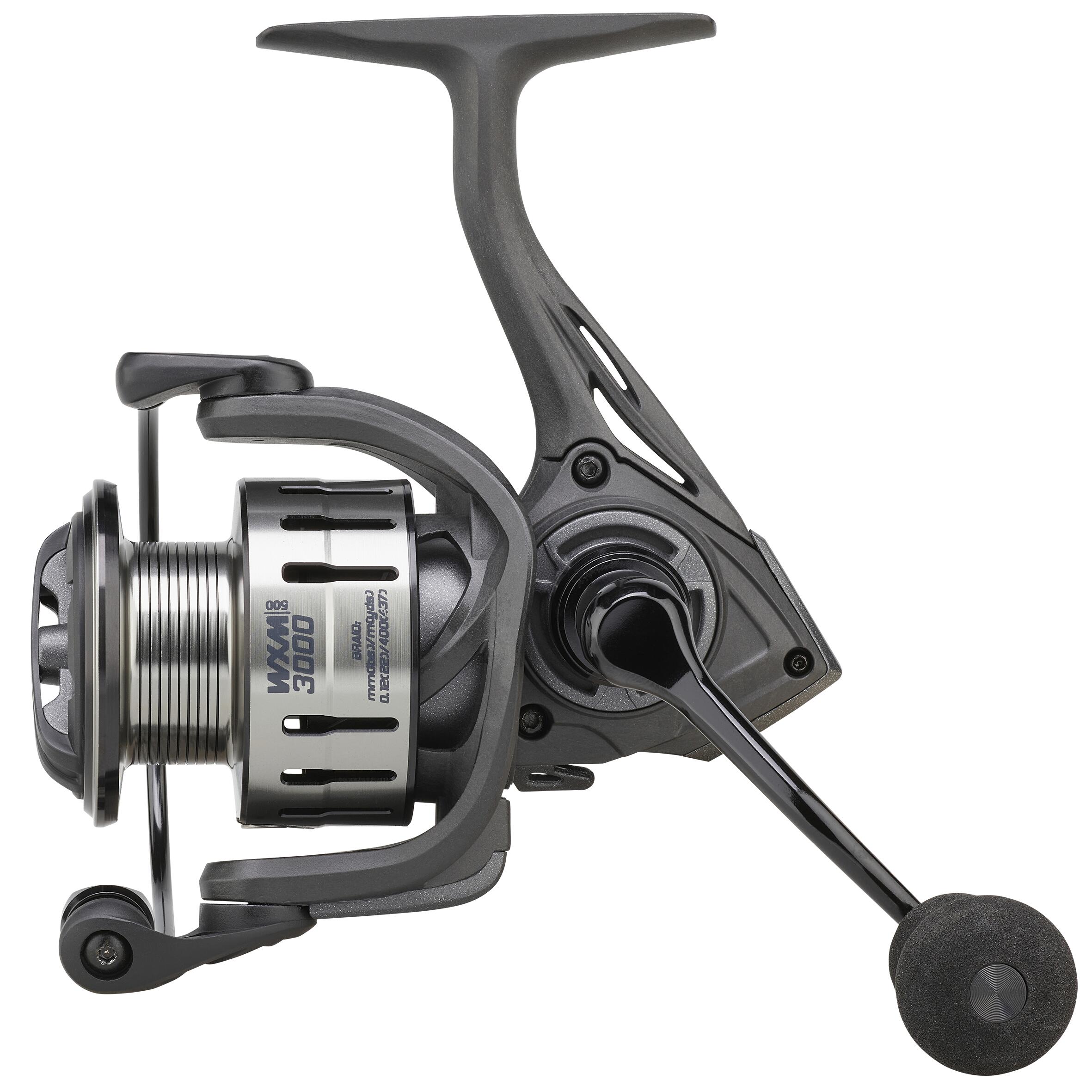

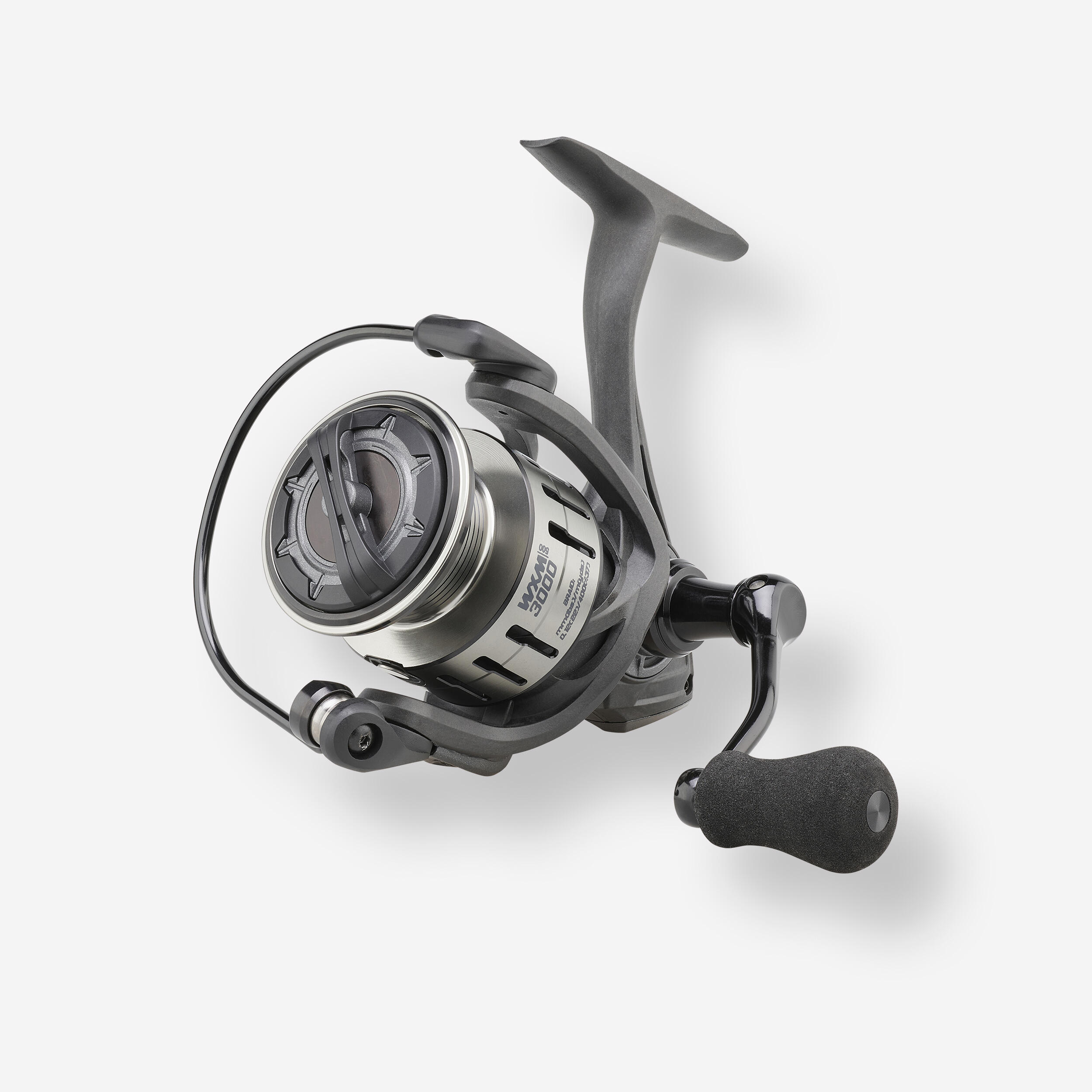

Lure fishing reel WXM 500- 3000
Store Availability
Store availability
BENEFITS
Lightweight
Weight: 237 g Carbon rotor frame
Robustness

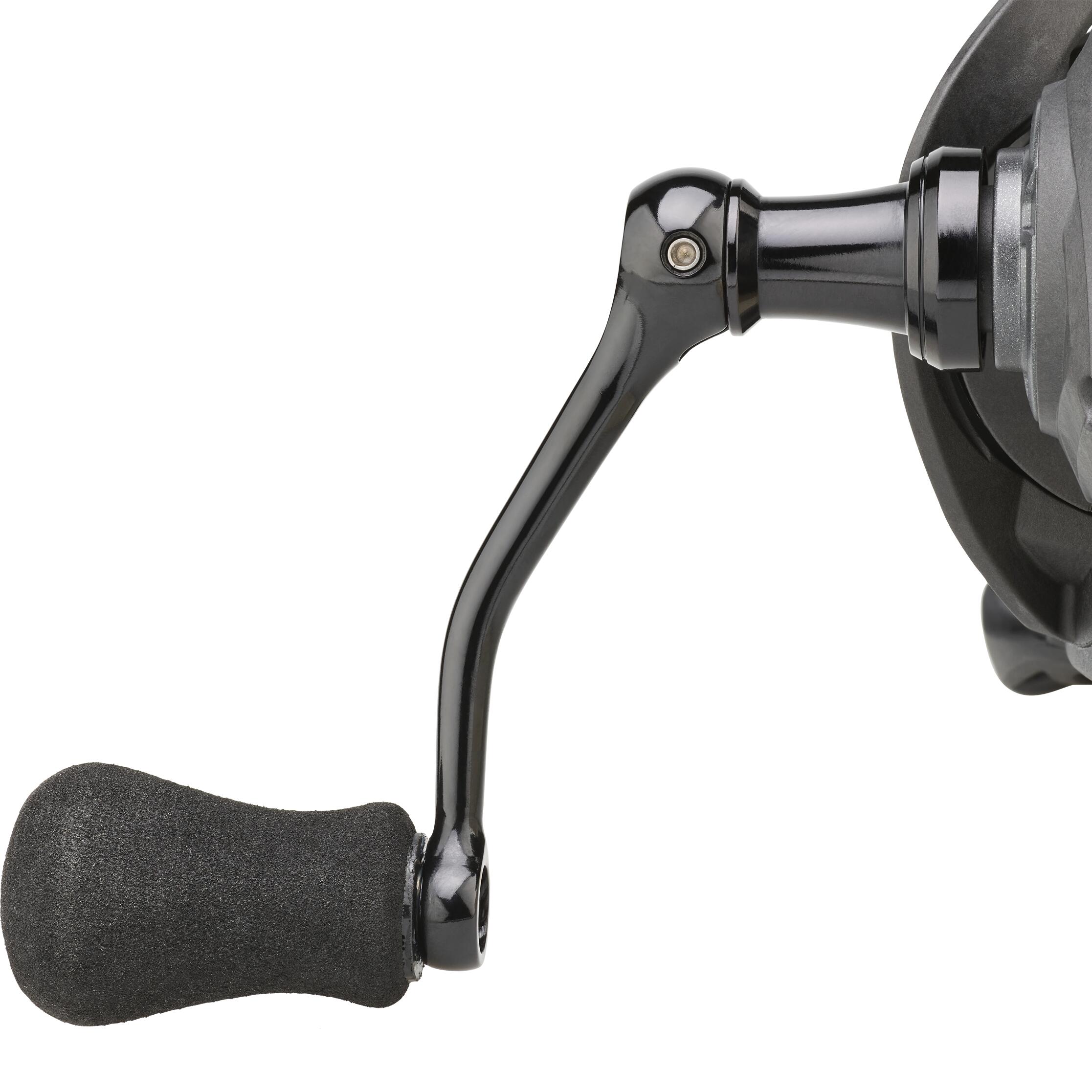

Aluminium spool frame made from carbon fibre One-piece screwed crank handle
Speed
Line retrieve per crank: 90 cm ratio: 6,2:1
Bearing smoothness
Number of bearings: 6+1
Braking power
Max.: 8 kg Usable: 3.8 kg
Instructions
DownloadTECHNICAL INFORMATIONS
TECHNICAL FEATURES
- LINE RETRIEVE PER CRANK: 90cm
- Weight: 237 g
- Drag weight: 8 kg
- Usable drag: 3,8 kg
- Ratio: 6.2:1
- Bearings: 6+1
- Spool: Aluminium
- Casing: Carbon-loaded PA
- Rotor: Carbon-loaded PA
INSTRUCTIONS
We advise that you use this reel with a braided line with a diameter of 0.12 mm, and a rod with a power of M or MH
SPOOL CAPACITY:
Braided line capacity:
0.12 mm 400 m
Monofilament capacity:
0.20 mm 320 m
0.25 mm: 180m
DRAG CASTING WEIGHT
Max. power:
The most commonly communicated measurement, it indicates the spool’s maximum drag power.
Usable power:
The closest measurement to use, it takes into account the malformation of the reel rig (rotor, pick-up support, etc.) and indicates the drag casting weight: available for fighting against the fish.
Explicative video: https://www.youtube.com/watch?v=zqDGK0UdZnM
ADJUSTING THE LINE COILING
This reel comes with adjustment rings to adjust the conicity of your coiling:
If you have a pyramid-shaped coiling (lower section fuller than the upper section): Remove you spool to access the axis and remove one or two plastic rings
If your coiling is in the shape of an inverted pyramid (upper section fuller than the lower section): Remove your spool to access the axis and add one or two of the plastic rings provided
AFTER-SALES SERVICE
Parts available in post-sale services:
- Spool: reference 8755521
- Shallow spool: reference 8772255
- Drag button: reference 8755533
- Crank: reference 8755546
- Crank button: reference 8755539
You can find them directly via the Decathlon website using the reference codes
DESIGN
Our reels have been developed by our teams of engineers and designers in France on Cestas.
In the heart of the Gironde and close to many fishing spots such as the large lakes of South West, Pyrenean rivers and even the Atlantic Ocean, we design, test and improve our products on a daily basis so they are both light and resistant.
Our reels are also tested and approved by several anglers: team members, customers, and even fishing guides.
COMPOSITION
composition
Main part: 70.0% Polyamide, 30.0% Carbon Fiber; Complementary parts: 5.0% Ethylene Vinyl Acetate, 30.0% Zinc, 5.0% Acrylonitrile Butadiene Styrene, 60.0% Aluminium
Tips for storage and maintenance
Storage tips
Rinse and dry after each fishing trip<br /> Loosen the drag after each fishing trip<br /> Oil the mechanism once a year.<br /> Ensure that your reel is dry before stowing it away.
Restrictions on use
Product not designed for use at sea
TESTS AND WARRANTY
Test product
Many anglers have tested these reels in a range of conditions to ensure their resistance and reliability. They also underwent numerous mechanical tests in the laboratory.
Warranty
2 Years
