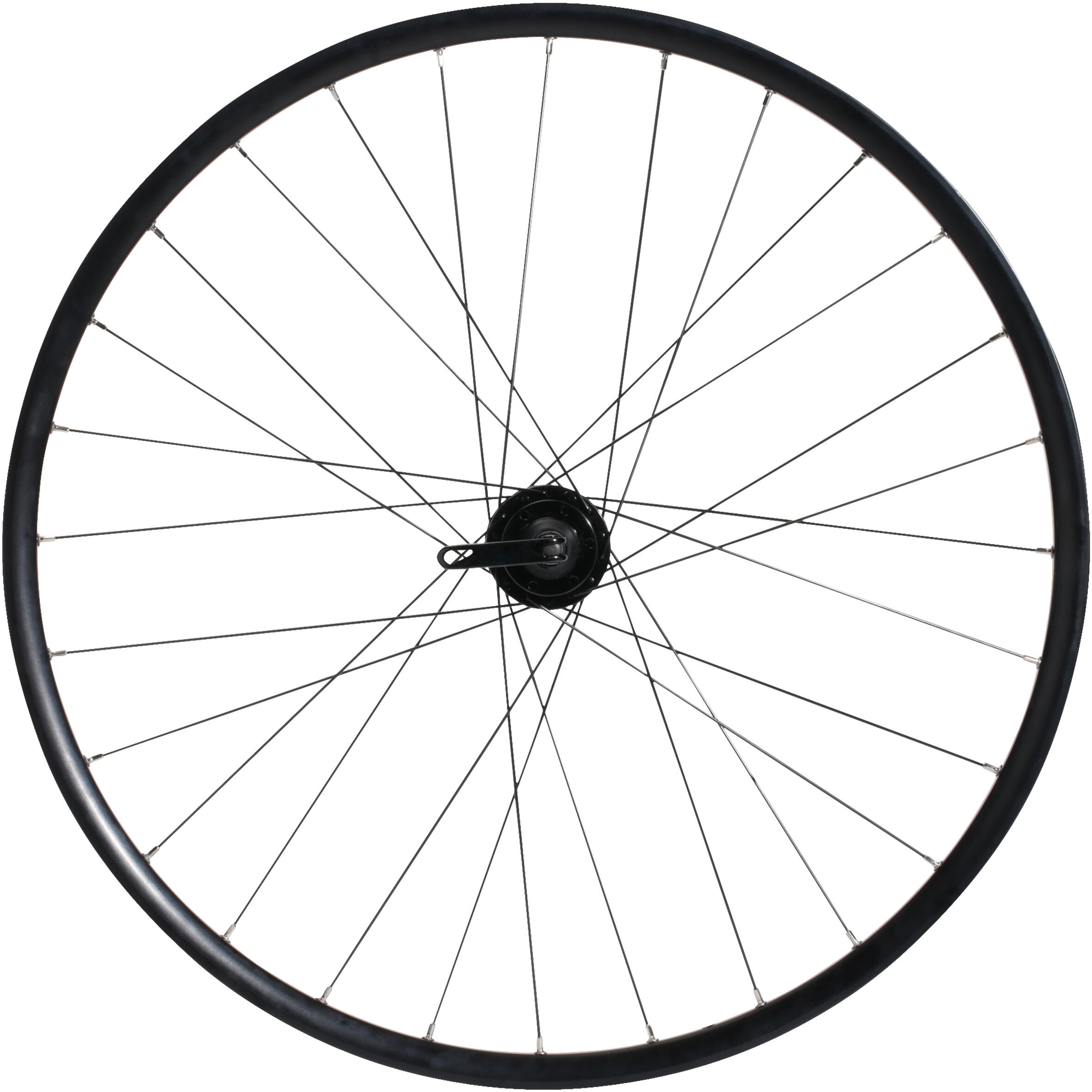

27.5x19c Double-Walled QR Cassette Disc Brake Mountain Bike Rear Wheel
Store Availability
Store availability
BENEFITS
Compatibility
27.5" tyres and disc brakes only.7 to 10 speed cassette.
Capacity
1 wheel 1 Quick Release 1 rim strip
Rolling efficiency
cup and cone bearing
Robustness
Sturdy, lightweight, aluminium wheel with double-walled rim.
Maintain
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Features:
ETRTO 584x19C
Rim material: Double-walled 6063 aluminium / Black
Rim type: Sleeved
Valve hole diameter: 8.5 mm
Number of spokes: 28
Spokes: Galvanised Steel / Black / 2 mm
Assembly type: 3-cross
Bearings: cup and cone ball bearing (diam = 6.35 mm - 1/4")
Brake compatibility: 6-bolt disc
OLD: 9x135 mm
Type of axle: QR
Weight: 1346 g (with quick release and rim tape)
Spoke length
Left = 276 mm
Right = 275 mm
User tip:
Respect the tightening torque on the disc, which is 6 Nm, and the tightening of the cassette, which is 40 Nm.
Remember to apply light thread-locking fluid on the threads of the disc screws.
CARE TIPS
Regularly check the tension of the spokes and that your wheel is not bent. Do not use a high-pressure cleaner on the wheel bearings
Need Help?
The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!
COMPOSITION
composition
Main part: 50.0% Steel, 50.0% Aluminium
Tips for storage and maintenance
Storage tips
Store the wheel in a cool, dry place, away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
