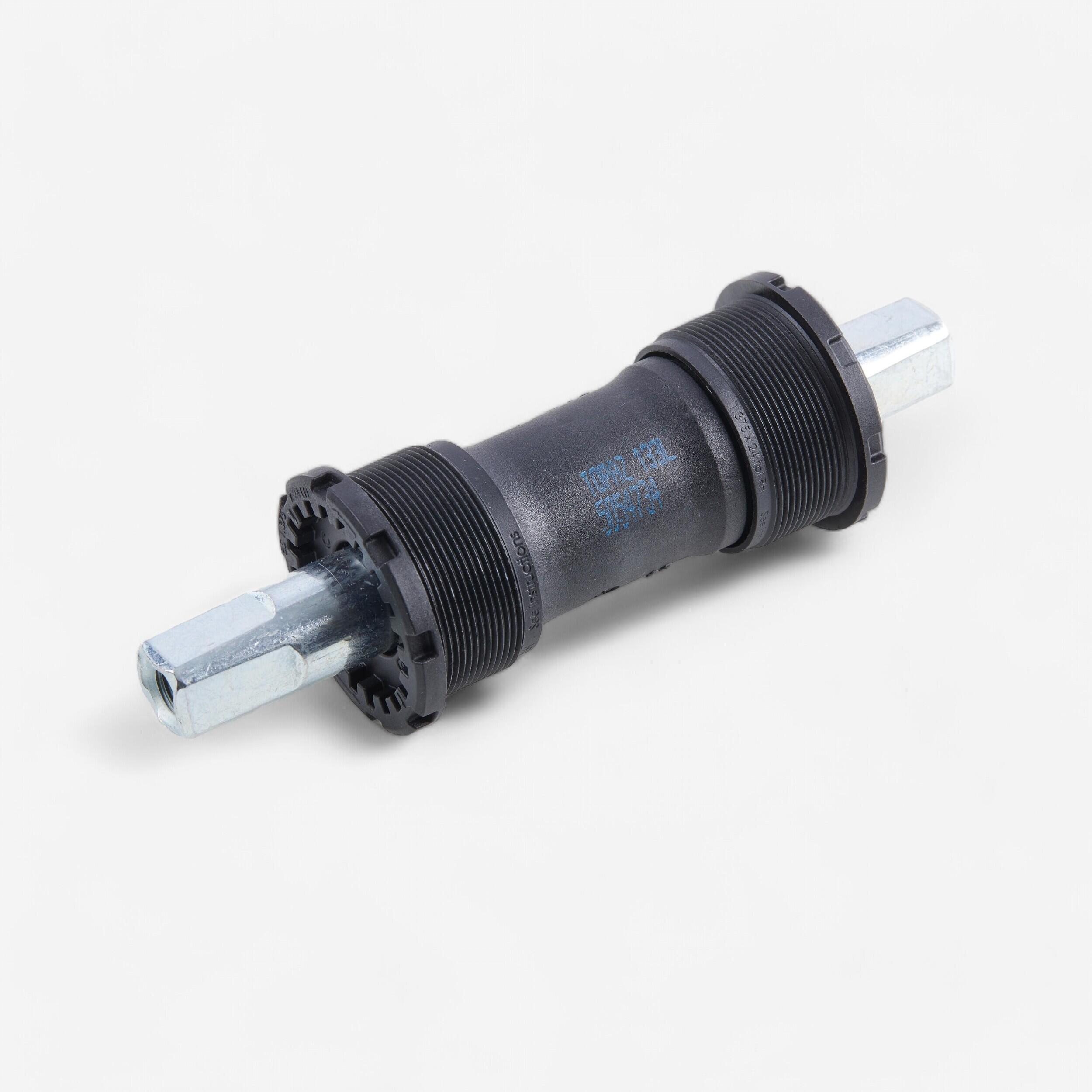

133 mm Topaz Square Taper Bottom Bracket
Store Availability
Store availability
BENEFITS
Compatibility
Designed for bottom brackets with a square taper.
Maintain
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
Can be installed on a frame with a 68mm Euro-type square-taper bottom bracket (with English threading).
Bottom bracket width: 68 mm
Bearing material: Steel
Type: Square
Bottom bracket type: BSC/BSA (English, Euro)
Assembly tips
Bracket tightening torque: 50-70N.m
Crank tightening torque: 35-50N.m
Do not oil the plastic cups.
Care advice
Do not use a high-pressure cleaner on the bearings
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
COMPOSITION
composition
Main part: 84.0% Steel, 16.0% Polyamide
Tips for storage and maintenance
Storage tips
Store the bottom bracket in a cool, dry place away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
