31.6 120/150/170 mm Travel Handlebar Remote Dropper Seat Post
Store Availability
Store availability
BENEFITS
Compatibility
Compatible with frames with internal routing and a 31.6 mm seat tube
Capacity

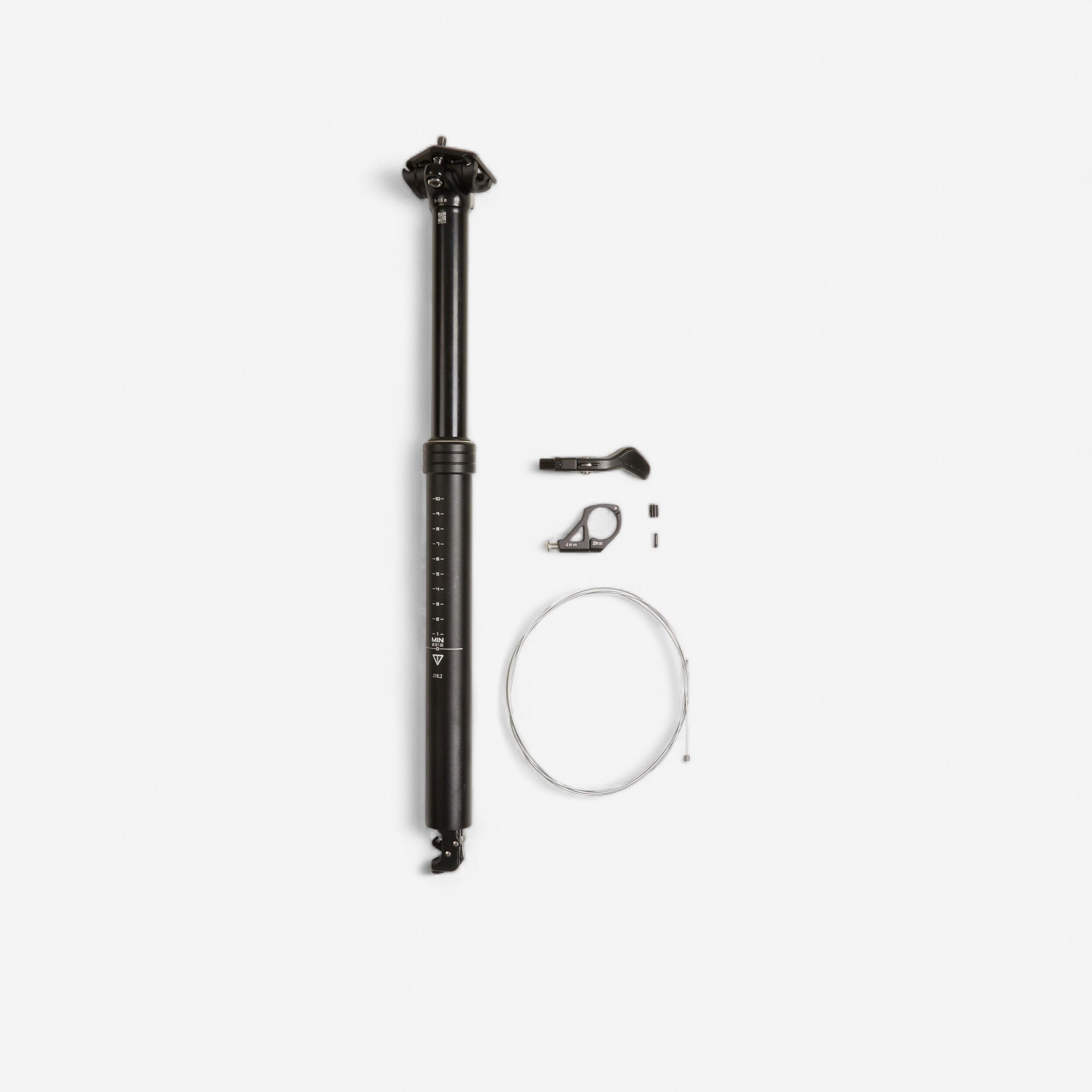

1 seat post _ 1 cable _ 1 control lever _ 1 clamp _ 1 cable guide
Ease of use
Poploc handlebar remote control
Assembly time
Please note: you will need gear cable housing for the internal cable routing.
Repair
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
Diameter: 31.6 mm
Length: 400 mm
Travel: 120mm 150mm or 170mm
Insertion limit: 80mm(120) - 120mm(150) - 140mm(170)
Max height (at insertion limit): 281mm(120) - 318mm(150) - 358mm(170)
Control: on the handlebar
Cable routing: Internal routing
Material: 6061 aluminium
Head offset: 15 mm
Interface: 2 rails _ 43 mm centre-centre
Seat clamp torque: 8-10 Nm
Weight: 600 g
REMOTE POSITION
designed to be mounted on the left (single chainring drivetrain with no front shifter)
once mounted, the remote control sits on the handlebar
PRECAUTIONS FOR USE
Take care not to exceed the insertion limit of the seat post in your frame. Ensure that the saddle tube is clean.
Put a bit of grease on the post to make it easier to slide and prevent water or dust from getting into the frame.
Care tips
Remember to regularly retighten the screws on the saddle clamp to keep comfortable in the saddle and prevent premature wear.
Do not use a high-pressure cleaner on the seat post
COMPOSITION
composition
Main part: 100.0% Aluminium
Tips for storage and maintenance
Storage tips
Store the seat post in a cool, dry place, away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
