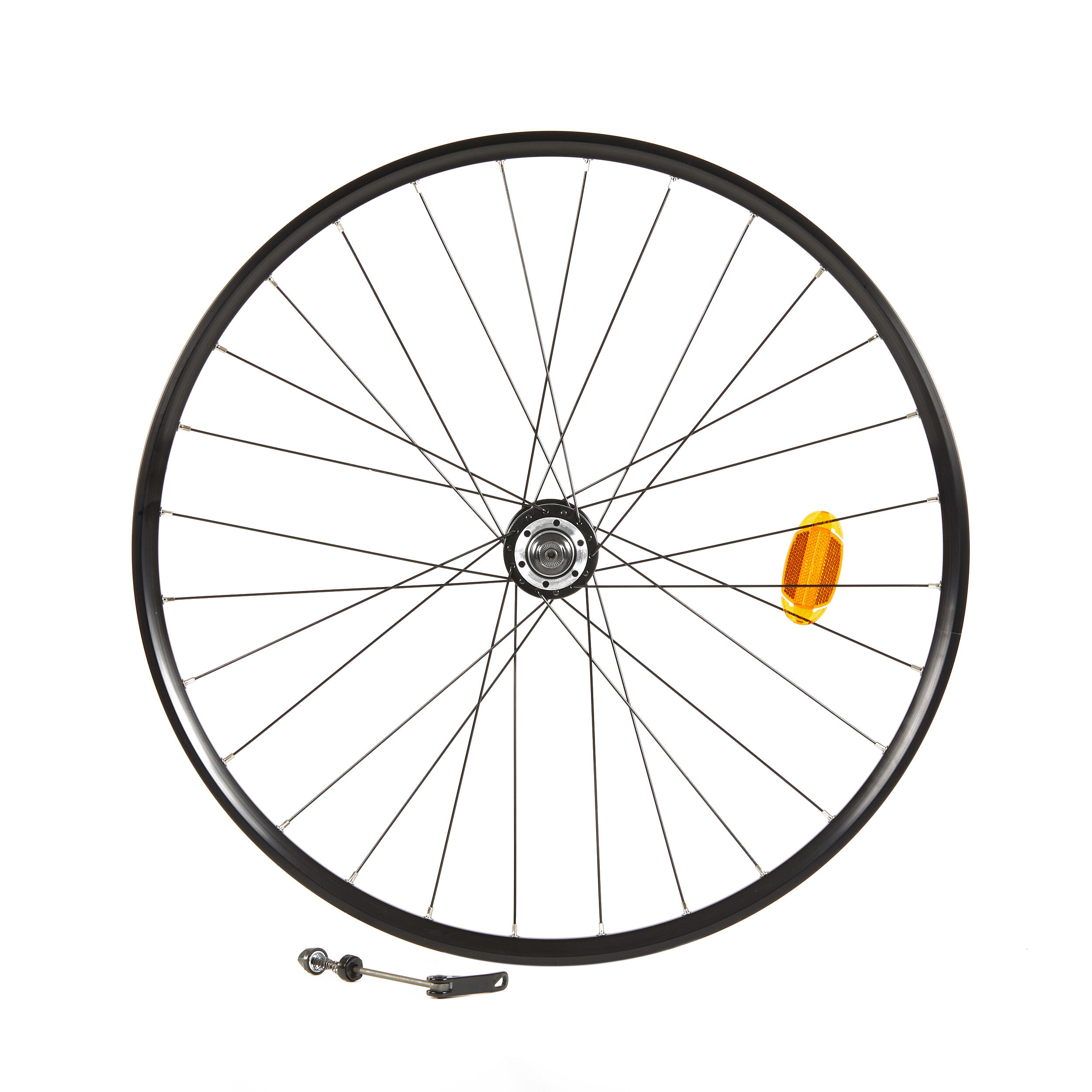

27.5" x 23 C Double-Walled QR Tubeless-Ready Disc Mountain Bike Front Wheel
Store Availability
Store availability
BENEFITS
Compatibility
Compatible with 27.5", 9x100mm and disc forks
Capacity
1 wheel 1 tubeless rim tape 1 quick release
Rolling efficiency
Sealed bearings
Waterproof
Tubeless ready: already equipped with the right rim tape
Repair
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
ETRTO diameter: 584x23c

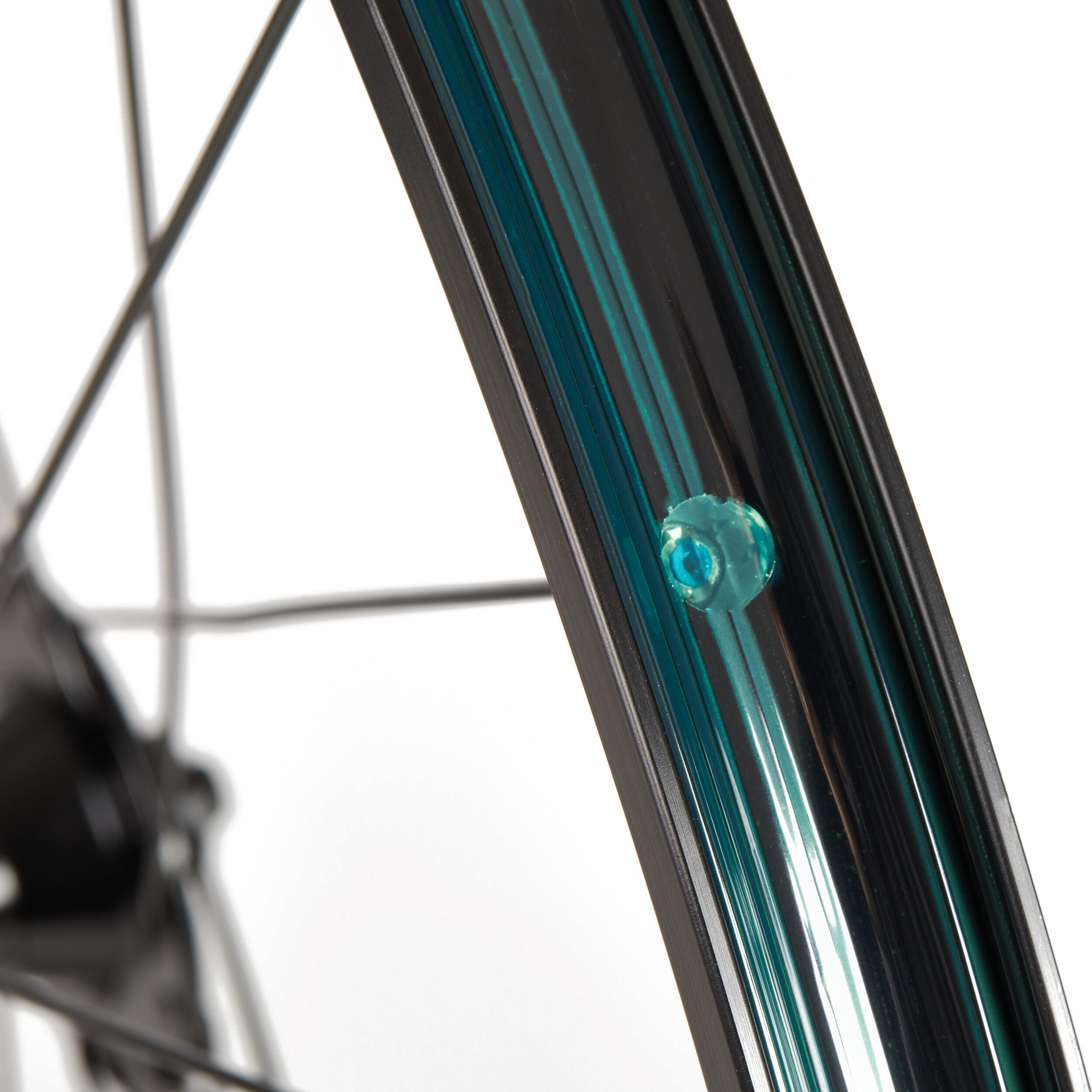

Rim material: Aluminium 6063 / Black
Rim type: Sleeved
Valve hole diameter: 6.5mm
Tyre size: 1.5" - 2.5" (37-64mm)
Weight: 1070g
Number of spokes: 32
Spoke length: 265 mm left / 267 mm right
Spoke material: Stainless steel / Black
Spoke shape: 2/1.7/2 double butted
3-cross spoke pattern
Brakes: 6-hole disc
OLD: 100 mm
Taper length: 108mm
Axle type: QR9

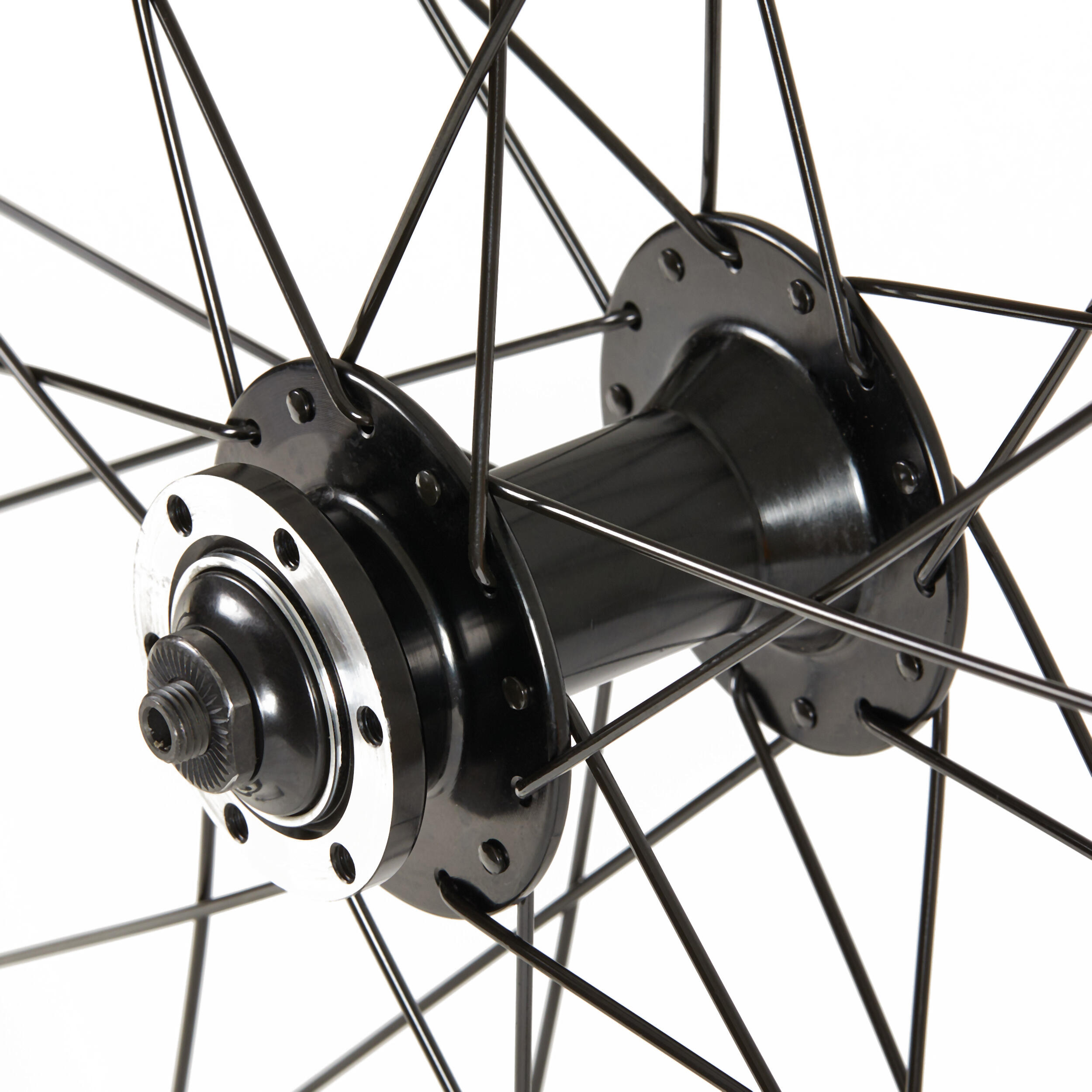

Hub: Aluminium / Black
Bearing type: Waterproof
Spoke lengths
Left Front Spokes = 265 mm
Right Front Spokes = 267 mm
Conversion to Tubeless
Can be converted by replacing the rim strip and valve.
User tip:
Respect the tightening torque on the disc, which is 6 Nm, and the tightening of the cassette, which is 40 Nm.
Remember to apply light thread-locking fluid on the threads of the disc screws.
Need Help?
The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!
COMPOSITION
composition
Hub: 50.0% Steel, 50.0% Aluminium; Rim: 100.0% Aluminium; Spokes: 100.0% Steel
Tips for storage and maintenance
Storage tips
Store the wheel in a dry and temperate place, away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
