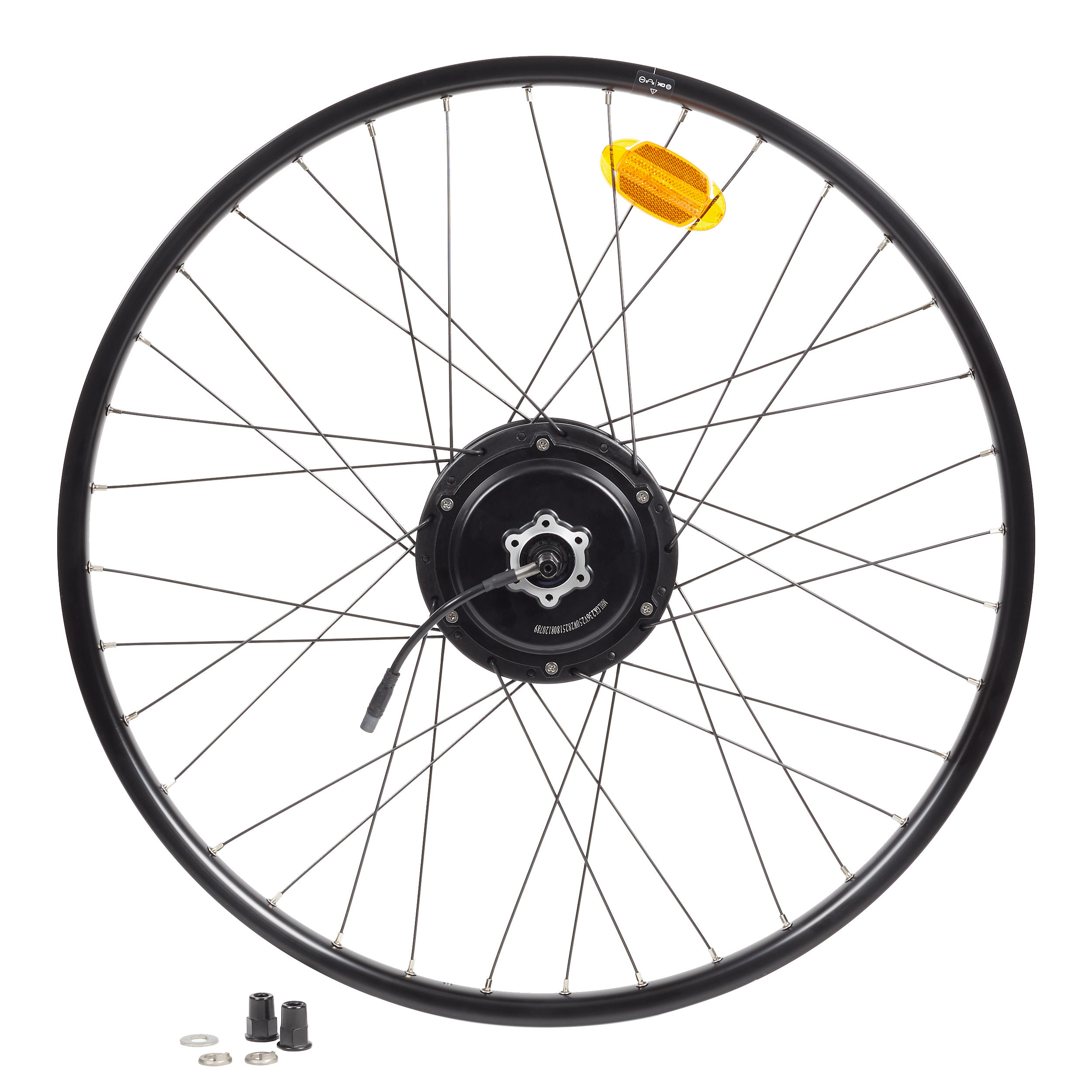

27.5" Motorised Disc Brake Cassette Lockring MTB Rear Wheel E-ST 100 V3
Store Availability
Store availability
BENEFITS
Compatibility
Compatible with the E-ST 100/500 and tubeless if rim tape is added
Efficiency
42Nm, 36V, 250 Watt, 20A motor
Repair
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
ETRTO diameter: 584x23c
Rim material: Aluminium 6063 / Black
Rim type: Sleeved
Double-walled
Valve hole diameter: 8.5 mm
Motor:
Torque: 42 Nm
Amps: 20A
Power: 350W
Voltage: 36V
Connection: 9 pins
Version: V3 (may need other components to be changed)
Number of spokes: 36
Spoke length: 233 mm right and left
Material: Stainless steel / Black
Shape: 2/1.7/2 double butted
Assembly: 2-cross
Brake compatibility: 6-hole disc
OLD: 150x10MM
Care tips
Regularly check there is no runout on your wheel, and the tension of your spokes
Avoid using any high pressure cleaning methods on the wheel bearings
Wheel assembly advice
Tighten to the recommended torque for this disc (6 Nm) and the cassette (40 Nm).
Remember to apply a small amount of thread-locking fluid to the disc's screw threads.
Check that the connector pins are correctly aligned.
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
COMPOSITION
composition
Main part: 20.0% Steel, 80.0% Aluminium
Tips for storage and maintenance
Storage tips
Store the wheel in a cool, dry place, away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
