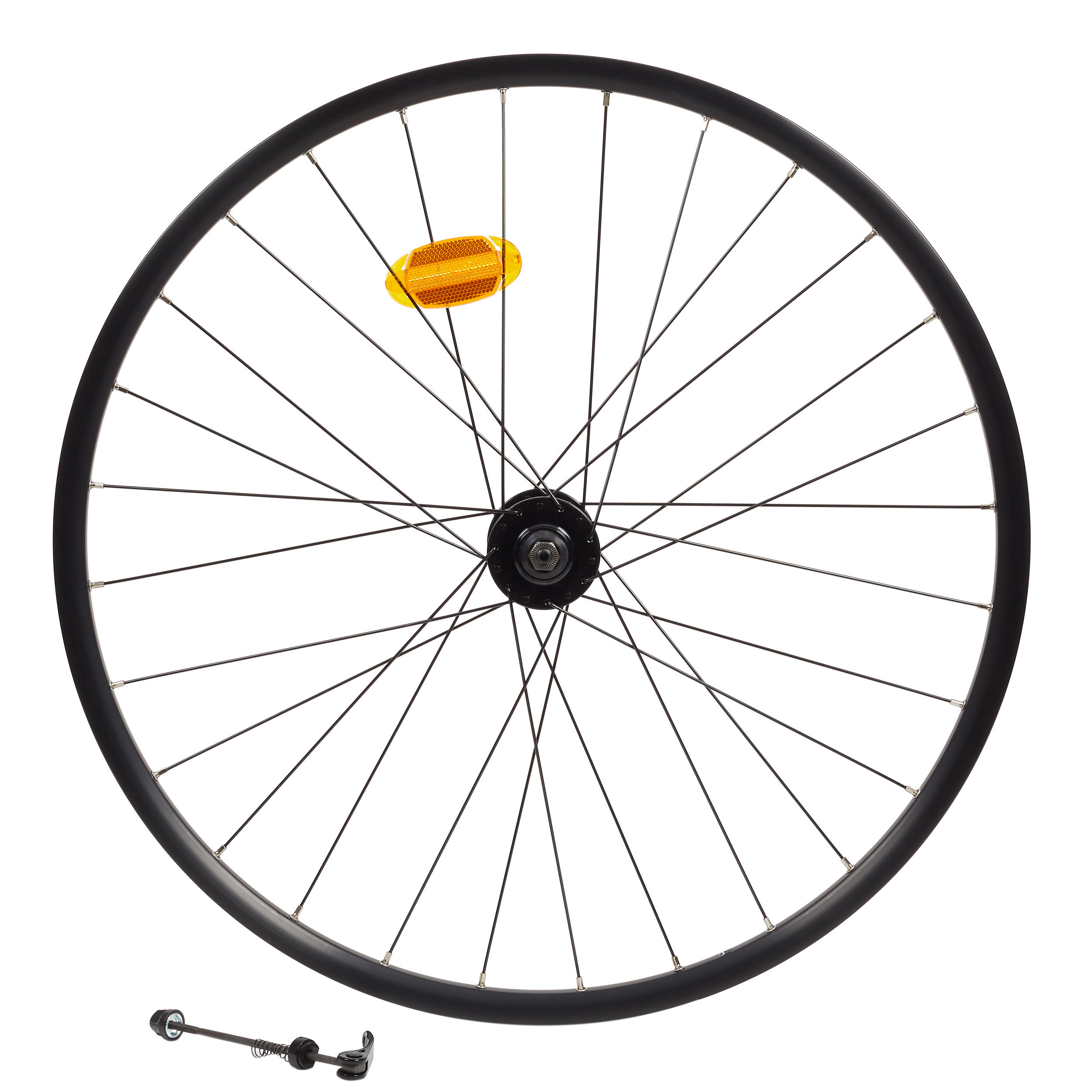

27.5 x 23c Double-Walled Disc Brake QR Tubeless Compatible MTB Front Wheel
Store Availability
Store availability
BENEFITS
Compatibility
Compatible with 27.5", 9x100mm and disc forks
Capacity
1 wheel 1 rim strip 1 quick-release
Robustness
Sturdy, lightweight, aluminium wheel with double-walled rim.
Waterproof
Tubeless compatible if you add rim tape and valves
Maintain
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
ETRTO diameter: 584x23c
Rim material: Aluminium 6063 / Black
Rim type: Sleeved
Valve hole diameter: 8.5 mm
Number of spokes: 28
Spoke length: 263 mm left / 265 mm right
Spoke material: Stainless steel / Black
Assembly type: 2-cross
Brake compatibility: 6-hole disc
OLD: 100 mm
Taper length: 108mm
Axle type: Quick Release

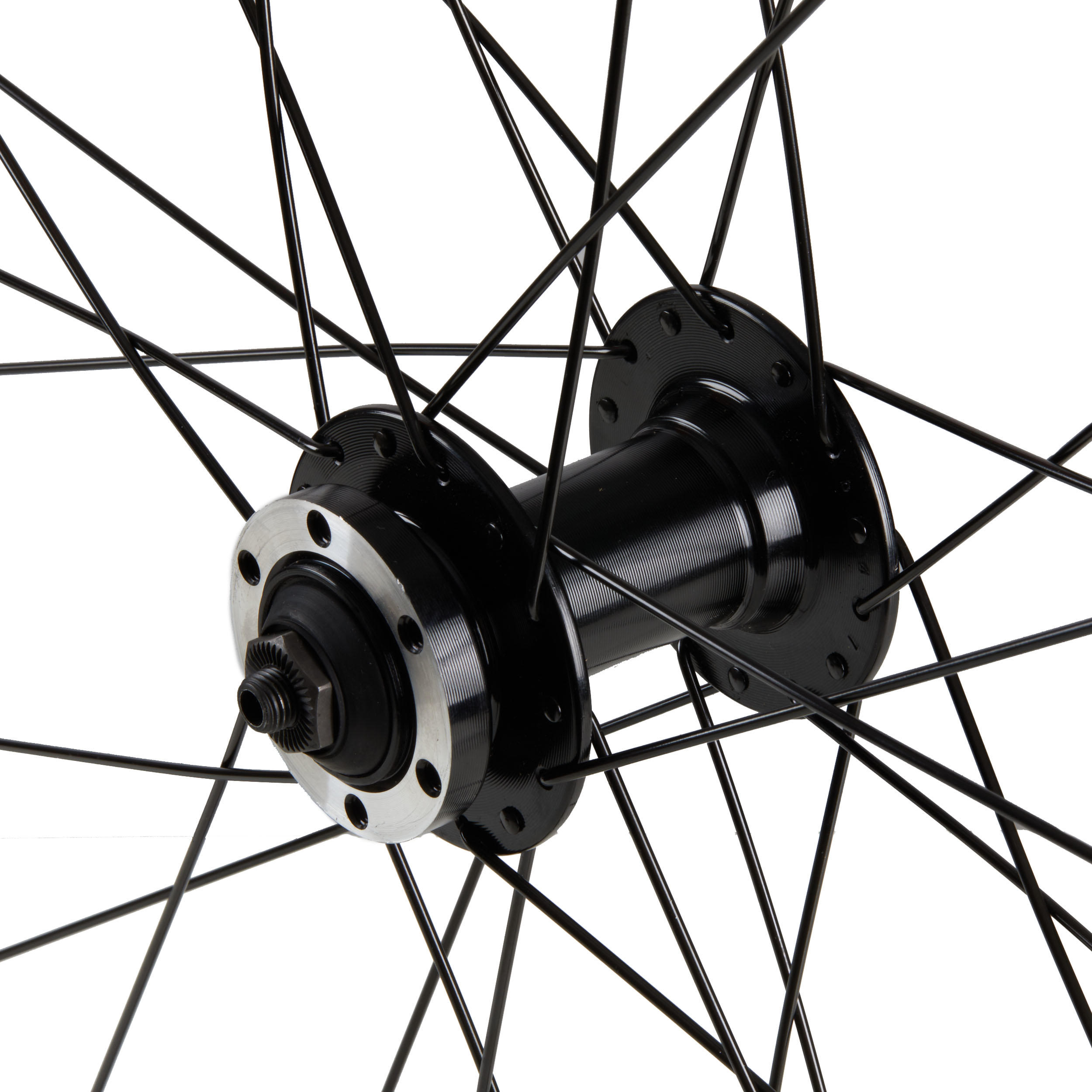

Hub: Aluminium / Silver
Bearing type: caged bearings
Spoke lengths
Left Front Spokes = 263 mm
Right Front Spokes = 265 mm
Conversion to Tubeless
Can be converted by replacing the rim strip and valve.
CARE TIPS
Regularly check there is no runout on your wheel, and the tension of your spokes
Avoid using any high pressure cleaning methods on the wheel bearings
Wheel assembly advice
Make sure to stick to the tightening torque for the disc, 6N.m
Remember to apply a small amount of thread-locking fluid to the disc screw threads.
Need Help?
The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!
COMPOSITION
composition
Main part: 20.0% Steel, 80.0% Aluminium
Tips for storage and maintenance
Storage tips
Store the wheel in a cool, dry place, away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
